AS2741 Forged Alloy Grade S Dee Shackle, Chain Shackle With Safety Pins
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

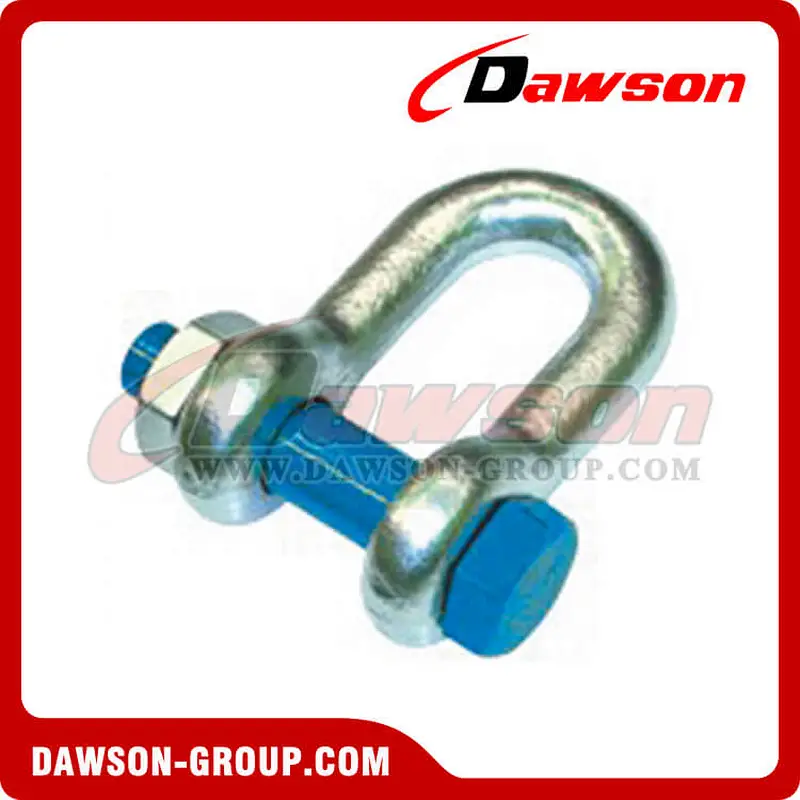

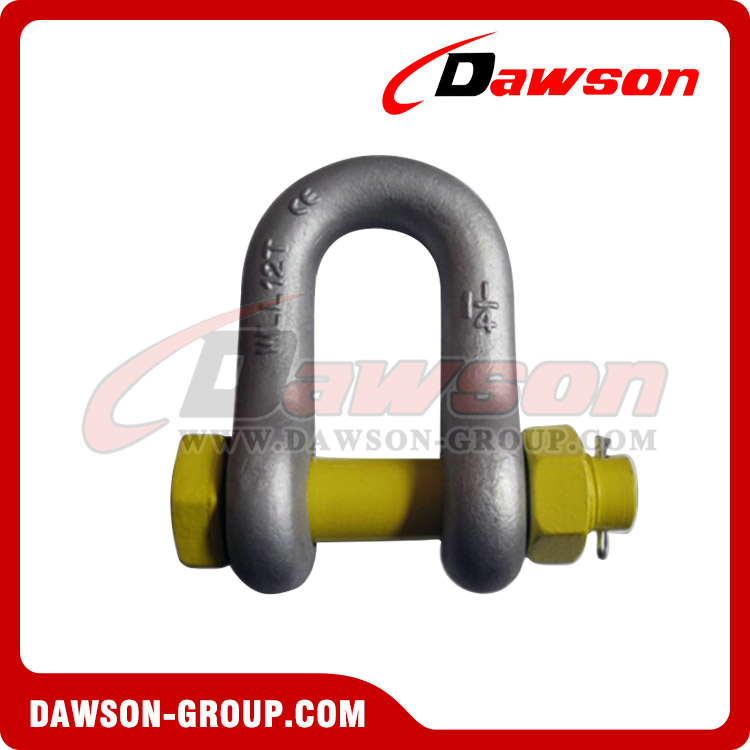

Grade S Dee Shackle With Safety Pins AS2741 Forged Alloy.
Hot Dipped Galvanized.
Body Forged Carbon Steel, and Pin Forged Alloy Steel.
Test load is 2.2 times Working Load Limit.
Ultimate Load is 6 times Working Load Limit

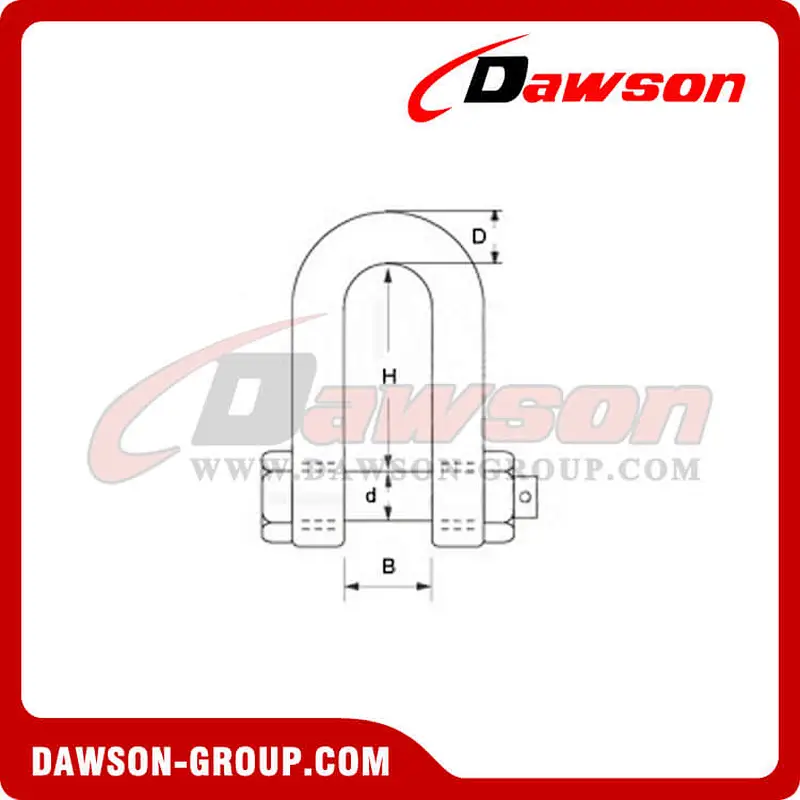

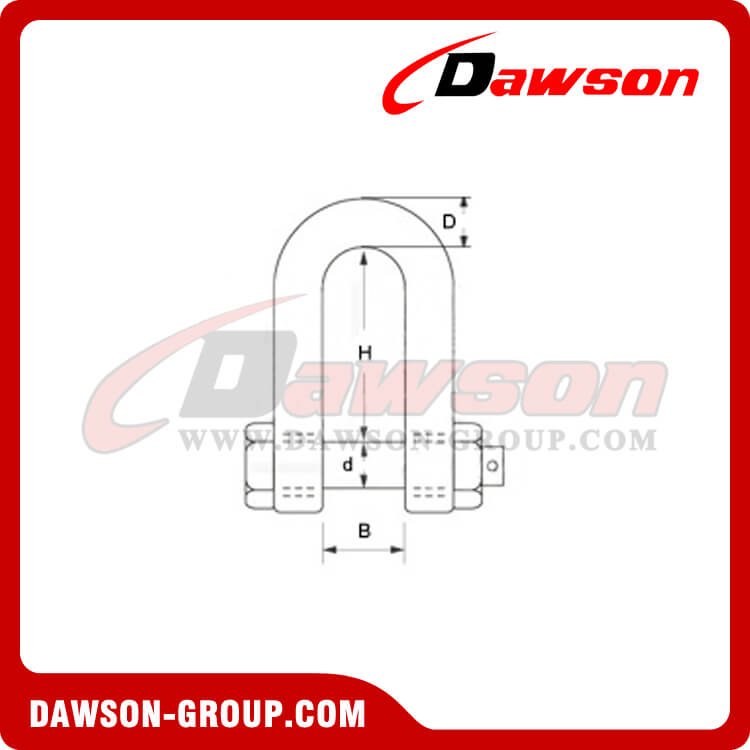

| ITEM NO | SIZE | D | d | B | H | SWL |
| mm | mm | mm | mm | t | ||
| DS-SDSS013 | 13 | 13 | 16 | 21 | 41 | 2.00 |
| DS-SDSS016 | 16 | 16 | 19 | 27 | 51 | 3.20 |
| DS-SDSS019 | 19 | 19 | 22 | 32 | 60 | 4.70 |
| DS-SDSS022 | 22 | 22 | 25 | 37 | 71 | 6.50 |
| DS-SDSS025 | 25 | 25 | 29 | 43 | 81 | 8.50 |
| DS-SDSS029 | 29 | 29 | 32 | 46 | 90 | 9.50 |
| DS-SDSS032 | 32 | 32 | 35 | 52 | 100 | 12.00 |
| DS-SDSS035 | 35 | 35 | 38 | 57 | 113 | 13.50 |
| DS-SDSS038 | 38 | 38 | 41 | 60 | 124 | 17.00 |
| DS-SDSS044 | 44 | 44 | 51 | 73 | 146 | 25.00 |
| DS-SDSS051 | 51 | 51 | 57 | 83 | 171 | 35.00 |
Welcome to buy the newest and competitive price DAWSON AS2741 Forged Alloy Grade S Dee Shackle With Safety Pins from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk dee shackle, low price grade s dee shackle, high quality forged alloy dee shackle, wholesale as2741 dee shackle, buy discount dee shackle with safety pin, customized high tensile chain shackle, hot sale commercial type d shackle, cheap price chain shackle, drop forged marine shackle China supplier, marine shackle China manufacturer, forged chain shackle China factory, forged alloy dee shackle China exporter, drop forged chain shackle in stock, forged alloy dee shackle free sample, fixed nut shackle dawson brands, forged alloy dee shackle OEM
High Load Grade S"DEE Bolt Type"Shackles
High load or Grade"S"shackles are tested, rated and stamped with their working load limit (WLL)
These shackles are often used in lifting applications but in the marine industry they are also required by mooring contractors for use on rated mooring systems.
Application: Grade S shackle made by forged high tensile steel with meet the standard of AS2741, mainly using in Australian market and others countries with need a thick nut. Purpose design for lifting , lashing , rigging, marine and others heavy duty industry.
Production Equipment:

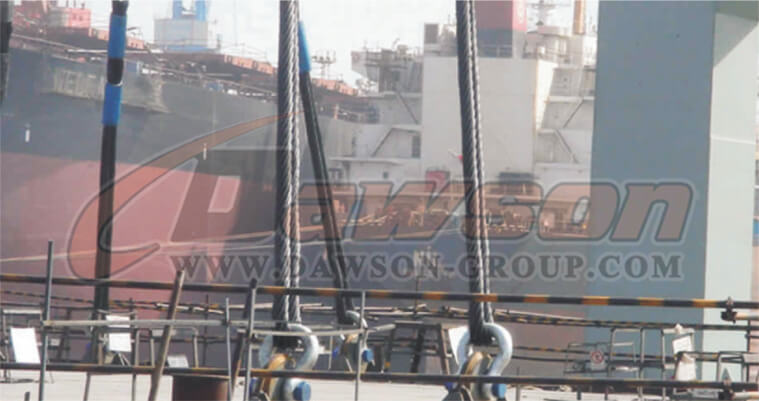

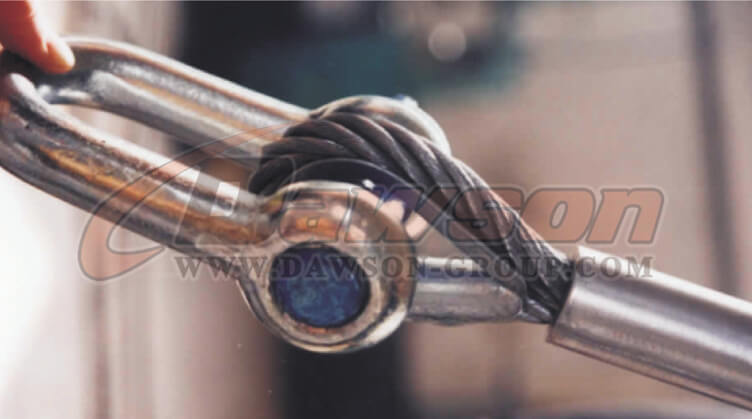

Application of Shackles:
Factory and packing Show:
