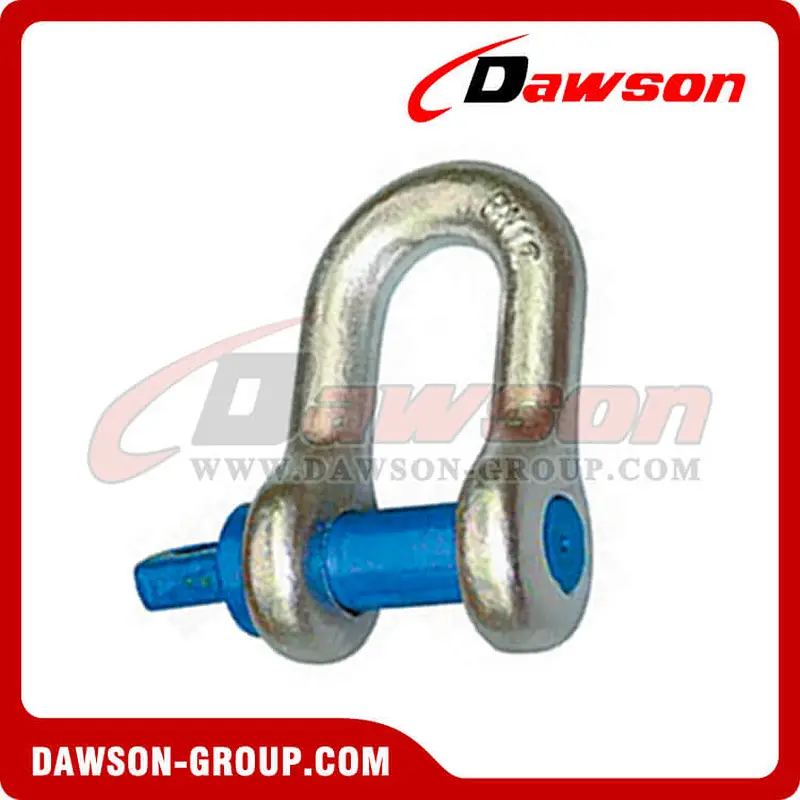

AS2741 Forged Alloy Grade S Dee Shackle With Screw Pins

AS2741 Forged Alloy Grade S Dee Shackle With Screw Pins

Model NO.: DS-SDS

Quantity:

Product Description

AS2741 Forged Alloy Grade S Dee Shackle With Screw Pins, Screw Pin Chain Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Grade S Dee Shackle Forged Alloy With Screw Pins AS2741

Hot Dipped Galvanized.

Body Forged Carbon Steel, and Pin Forged Alloy Steel.

Test load is 2.2 times Working Load Limit.

Ultimate Load is 6 times Working Load Limit

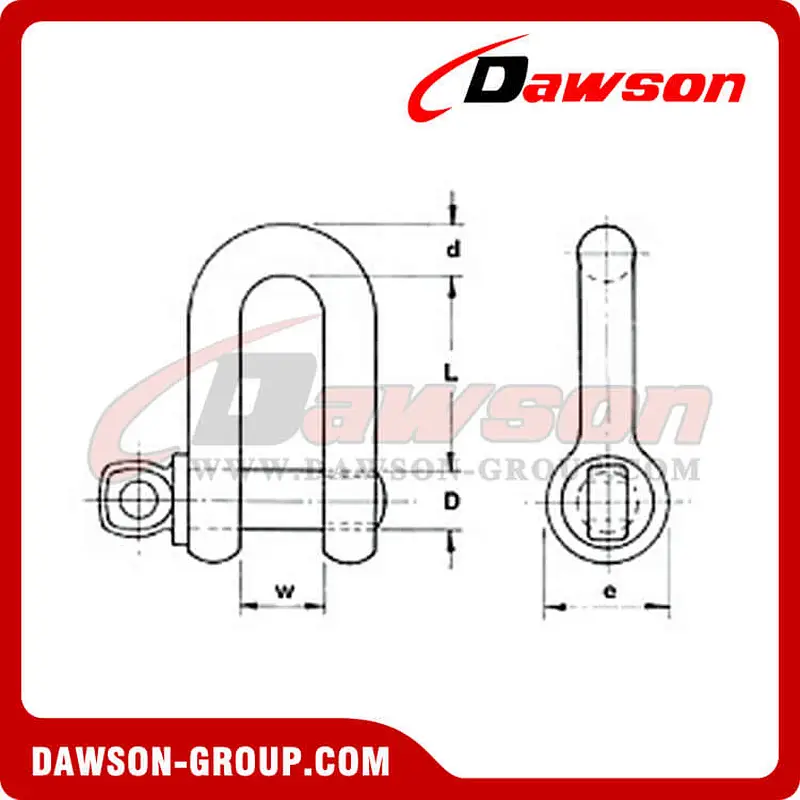

ITEM NO	SIZE	D	d	B	H	SWL t
ITEM NO	SIZE	mm	mm	mm	mm	SWL t
DS-SDS006	6	6	8	12	22	0.50
DS-SDS008	8	8	10	13	26	0.75
DS-SDS010	10	10	11	17	32	1.00
DS-SDS011	11	11	13	18	37	1.50
DS-SDS013	13	13	16	21	41	2.00
DS-SDS016	16	16	19	27	51	3.20
DS-SDS019	19	19	22	32	60	4.70
DS-SDS022	22	22	25	37	71	6.50
DS-SDS025	25	25	29	43	81	8.50
DS-SDS029	29	29	32	46	90	9.50
DS-SDS032	32	32	35	52	100	12.00
DS-SDS035	35	35	38	57	113	13.50
DS-SDS038	38	38	41	60	124	17.00
DS-SDS044	44	44	51	73	146	25.00
DS-SDS051	51	51	57	83	171	35.00

Welcome to buy the newest and competitive price DAWSON AS2741 Forged Alloy Grade S Dee Shackle With Screw Pins from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

High Load Grade S"DEE"Shackles

High load or Grade"S"shackles are tested, rated and stamped with their working load limit (WLL)

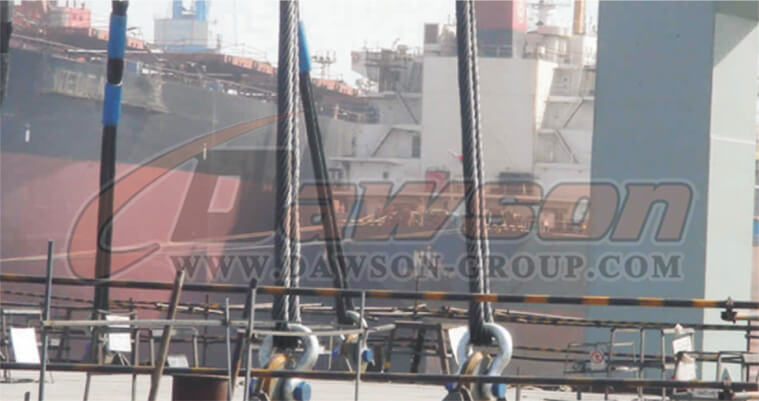

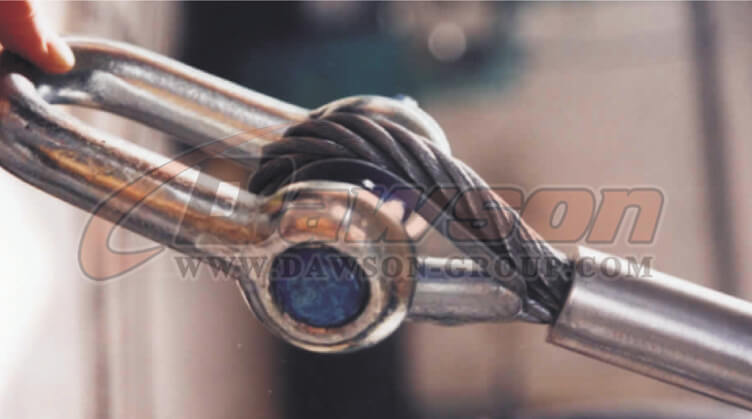

These shackles are often used in lifting applications but in the marine industry they are also required by mooring contractors for use on rated mooring systems.

Grade S shackle made by forged high tensile steel with meet the standard of AS2741, mainly using in Australian market and others countries with need a thick nut. Purpose design for lifting , lashing , rigging, marine and others heavy duty industry.
