DS362 High Strength Bolt Type Bow Shackle

DS362 High Strength Bolt Type Bow Shackle

Model NO.: DS362

Quantity:

Product Description

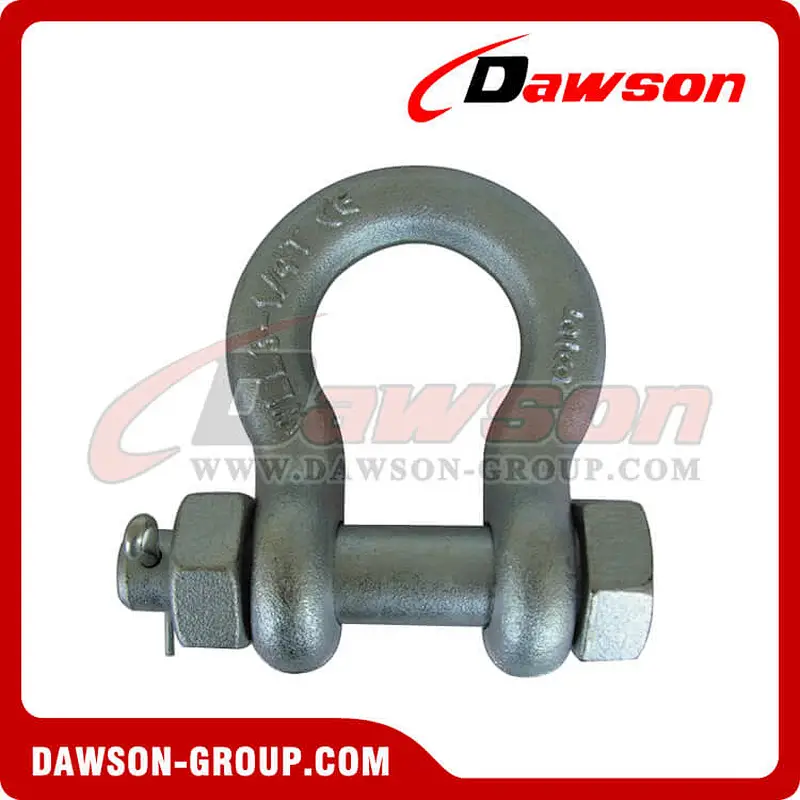

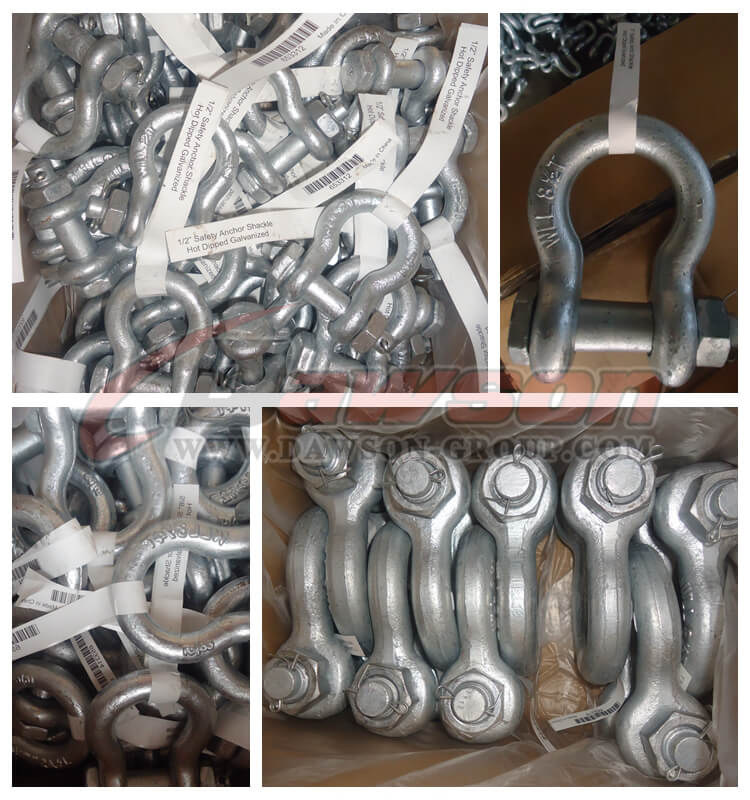

DS362 High Strength Bolt Type Bow Shackle, Shackle with Safety Pin
High Strength Bow Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Shackle body: Carbon steel Bolt: Alloy steel

For lifting application. Forged-Quenched and tempered.

Bow body-Surface finish: Hot dip galvanizing/electro galvanizing

Nut-Surface finish: Electro galvanizing

Bolt-Surface finish: Hot dip galvanizing/electro galvanizing/powder plastified

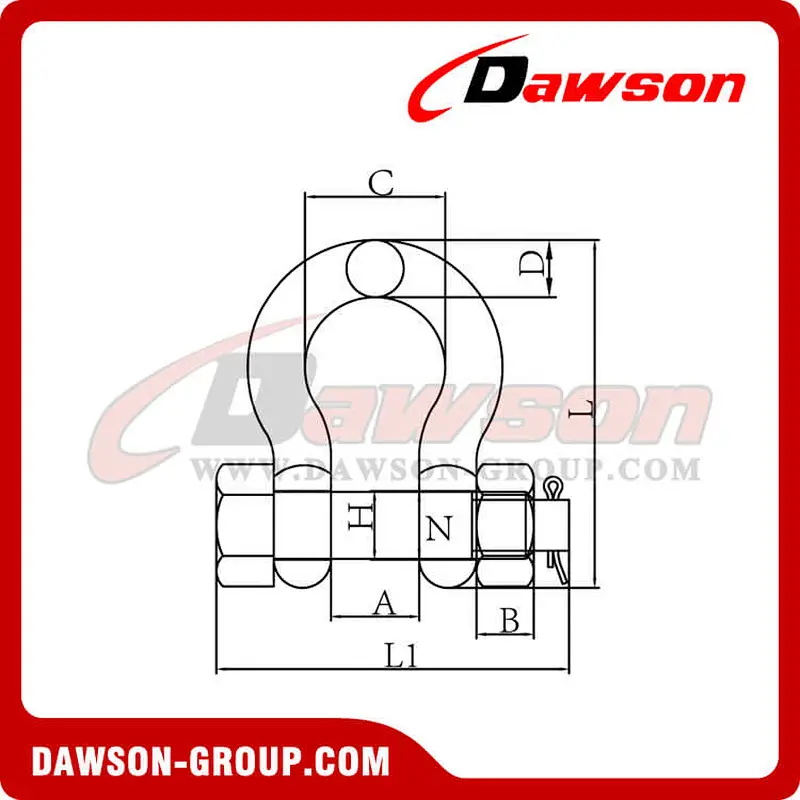

ITEM NO.	WEIGHT/LBS	WLL/T	B.L/T	A±1.5	C±1.5	D±1	L±3	H+0.2	N	L1±0.5	B
DS-362-3/16	0.06	0.33	1.98	9.7	15.3	4.8	37.5	7	6	32	3.2
DS-362-1/4	0.11	0.5	3	11.9	19.8	6.35	46.8	8.7	7.5	40	4
DS-362-5/16	0.22	0.75	4.5	13.5	21.4	8	53	11.5	9.5	48.4	5
DS-362-3/8	0.33	1	6	16.8	26.2	9.7	63.3	13	11.2	58.8	6
DS-362-7/16	0.49	1.5	9	19	29.5	11.2	78	15	13.4	65.9	7
DS-362-1/2	1.01	2	12	20.6	33.3	12.7	83.3	17	15.2	73.7	8
DS-362-5/8	1.60	3.25	19.5	27	42.9	17.5	106.5	21	19	94	10
DS-362-3/4	2.42	4.75	28.5	32	50.8	20.6	126.5	23.5	21.2	108.7	10
DS-362-7/8	3.95	6.5	39	36.6	58	24.6	148.1	26.5	24	127.8	12
DS-362-1	5.66	8.5	51	43	68.4	27	166.6	29.5	27	145.8	13.5
DS-362-1-1/8	8.27	9.5	57	46	74	31.75	190	32	30	160.6	15
DS-362-1-1/4	11.71	12	72	51.6	82.6	35	209.6	38.5	36	181.4	18
DS-362-1-3/8	15.83	13.5	81	57.2	92.2	38.1	232.7	41	39	188.3	19
DS-362-1-1/2	20.8	17	102	60.5	98.6	41.2	254	41.5	39	211	20
DS-362-1-3/4	33.91	25	150	73.2	127	57.2	313.5	50.5	48	281.6	39
DS-362-2	52.25	35	210	82.5	146	61	347.5	58.5	56	311	46
DS-362-2-1/2	98.25	55	330	105	184.2	79.5	453.2	70.5	68	403	58
DS-362-3	154.00	85	510	127	200.2	92	546	82.5	80	476	64

Ultimate load is 6 times the Working Load Limit.

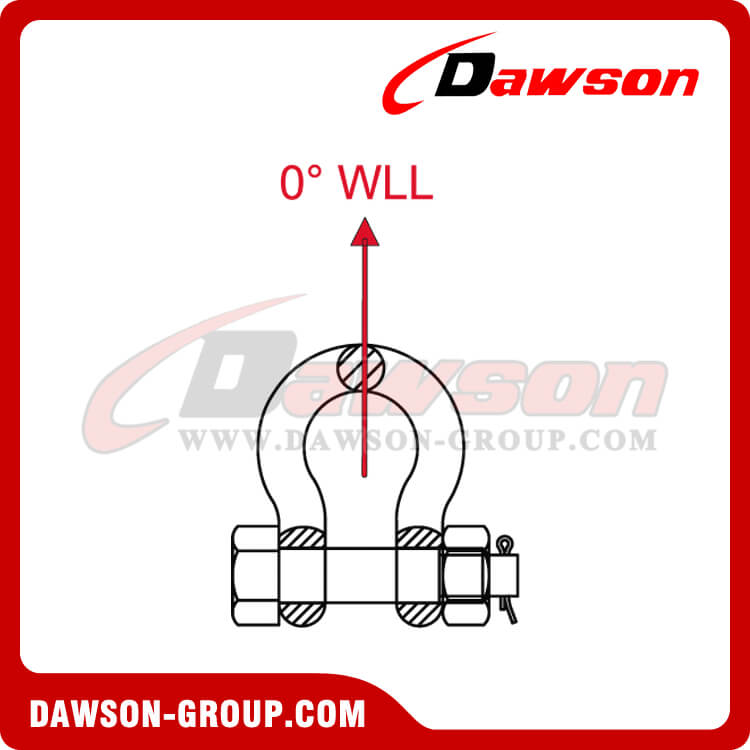

The above Working Load Limit is based on in-line load 0°.

For Working Load Limit reduction due to side loading applications see instructions.

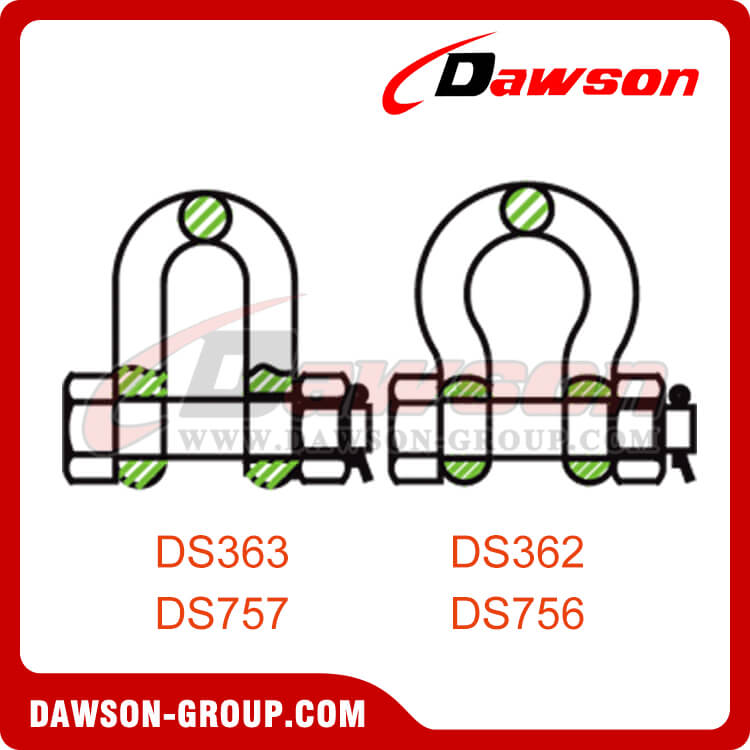

Shackle Application:

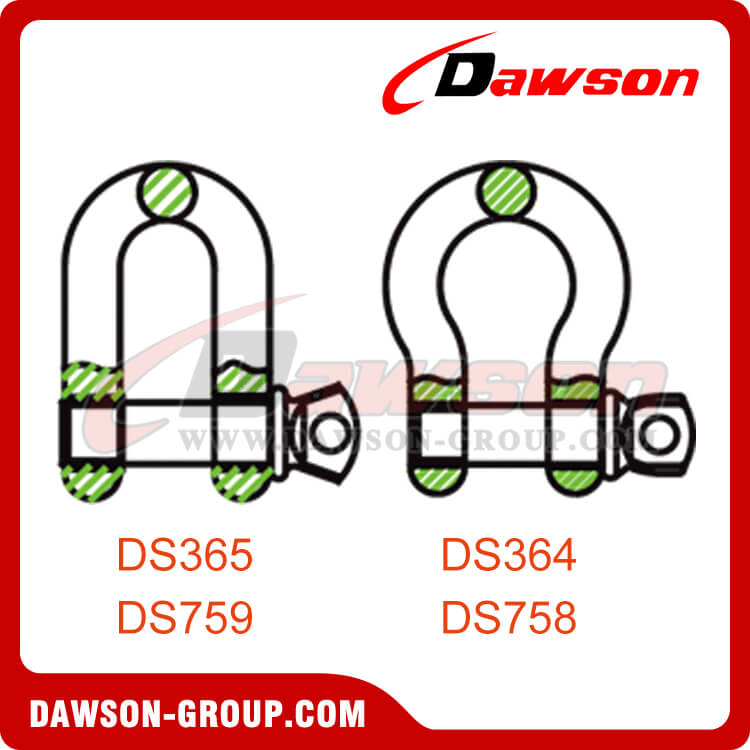

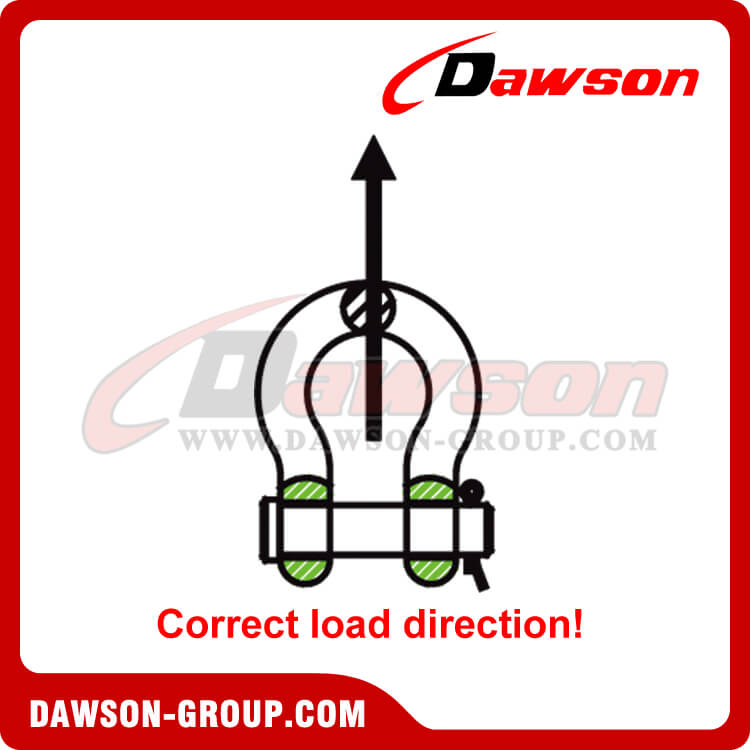

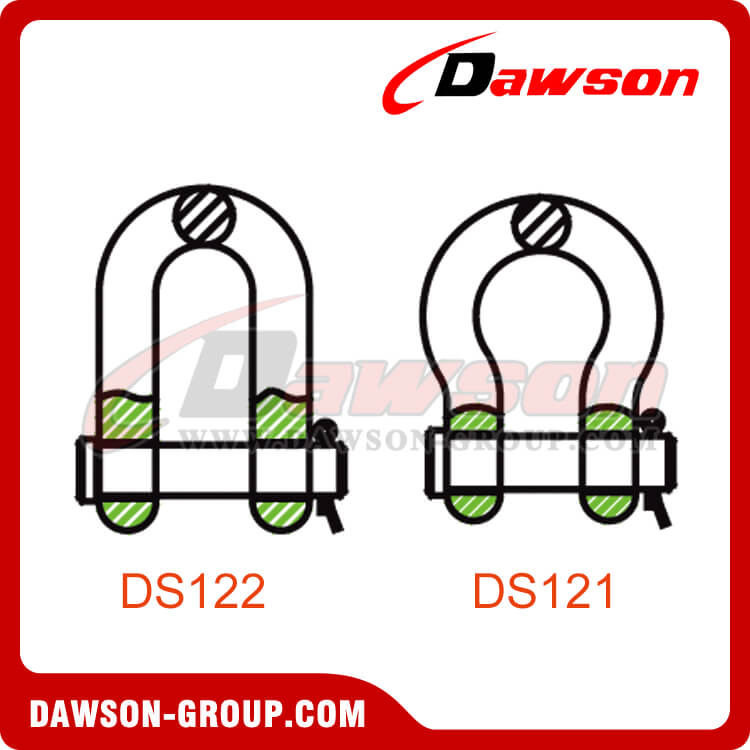

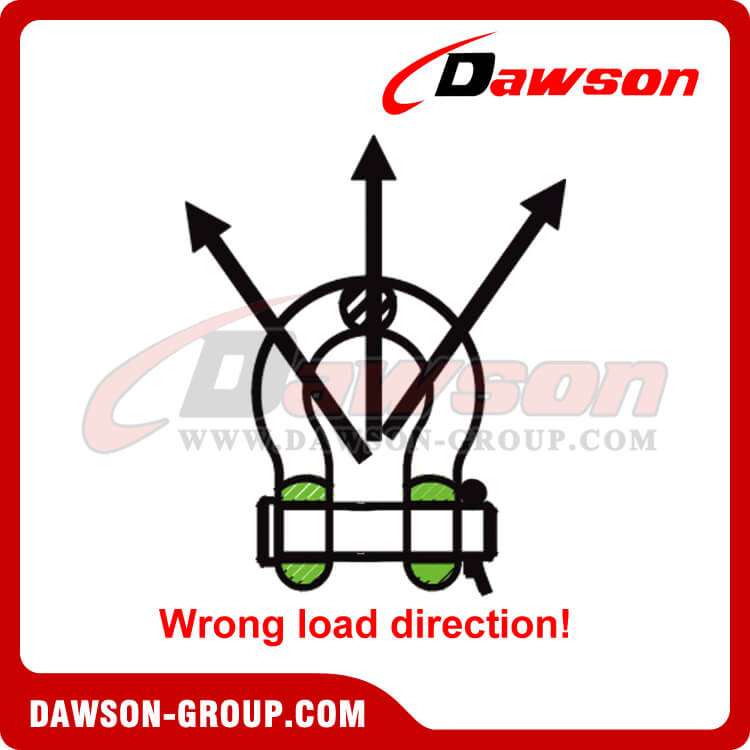

	ROUND PIN SHACKLES They can be used in tie down, towing, suspension or lifting. When used for lifting, the load will be strictly applied in-line. Never be used in multiple legs sling. Never be used in side loading. Always use cotter pin.

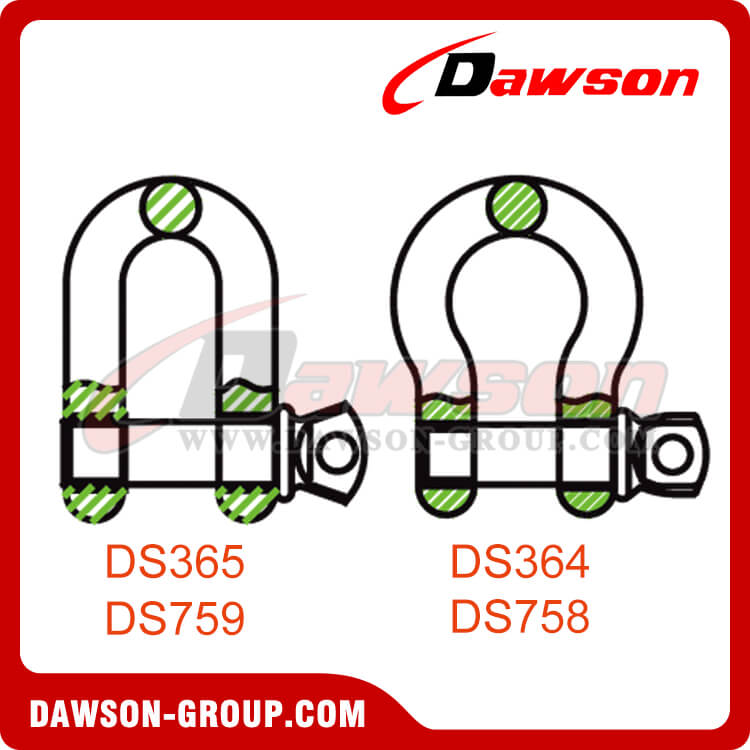

	SCREW PIN SHACKLES They are used in pick and place applications. When used for side loading applications, lifting, the working load limit will reduce. Tighten screw pin before each pick.

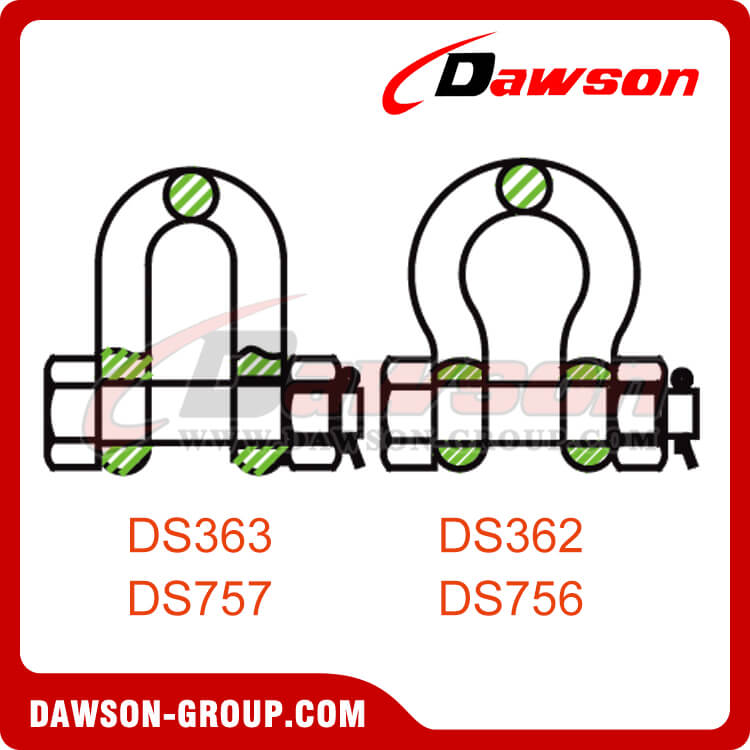

	BOLT TYPE SHACKLES They are used in permanent or long term applications. When used for side loading applications, lifting, the working load limit will reduce. Tighten nut and always use cotter pin.
For SCREW PIN SHACKLE and BOLT TYPE SHACKLES, The Working Load Limit will reduce in side loading.

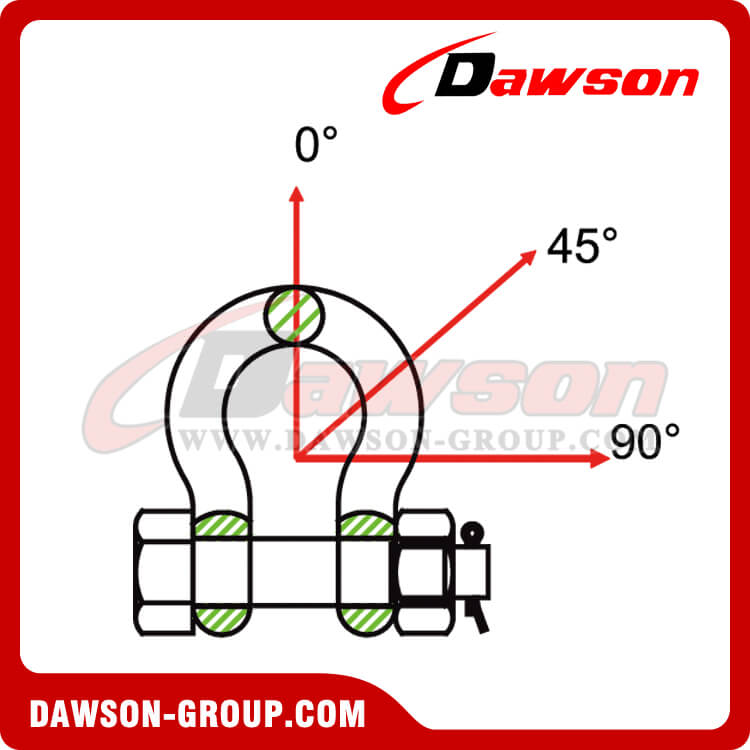

	SHACKLES DS362 DS363 DS364 DS365LOAD ANGLEADJUSTED WORKING LOAD LIMIT0°WLL X 100%0°- 45°WLL X 70%45°- 90°WLL X 50%

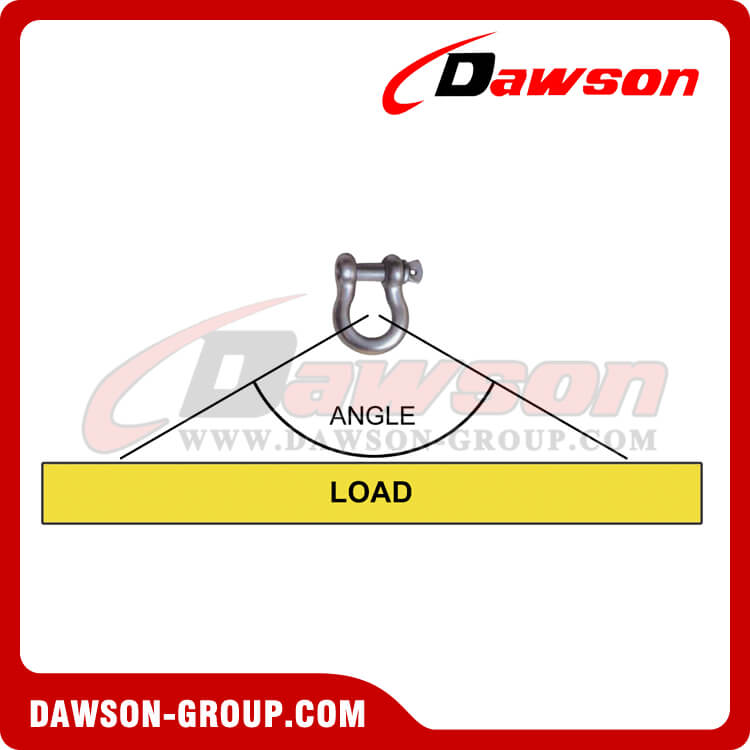

In loading ,the maximum angle is 120°, Never exceed 120°.

Welcome to buy the newest and competitive price DAWSON DS362 High Strength Bolt Type Bow Shackle from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

For further information, please contact us. Email:info@dawson-group.com

Hot Tags: bulk bow shackle, low price bolt type bow shackle, wholesale high strength bow shackle, high quality carbon steel bow shackle, buy discount bow shackle with bolt, hot sale forged bow shackle, customized alloy steel bow shackle, cheap price commercial type chain shackle, fixed nut shackle China supplier, bow chain shackle China manufacturer, drop forged bow shackle China factory, fixed nut shackle China exporter, bolt type bow shackle in stock, fixed nut shackle free sample, bolt type bow shackle dawson brands, fixed nut shackle OEM
