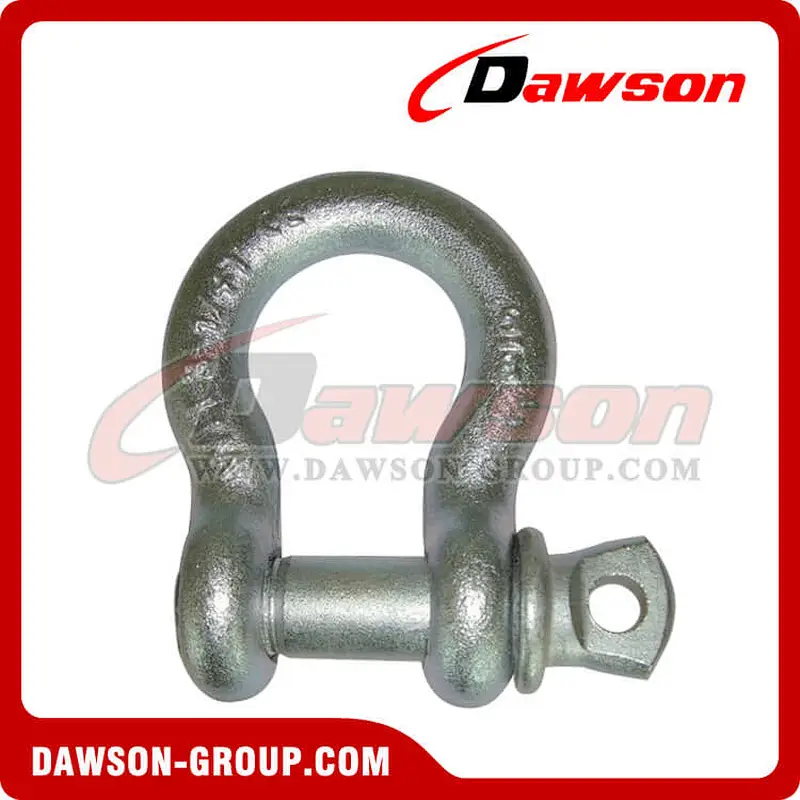

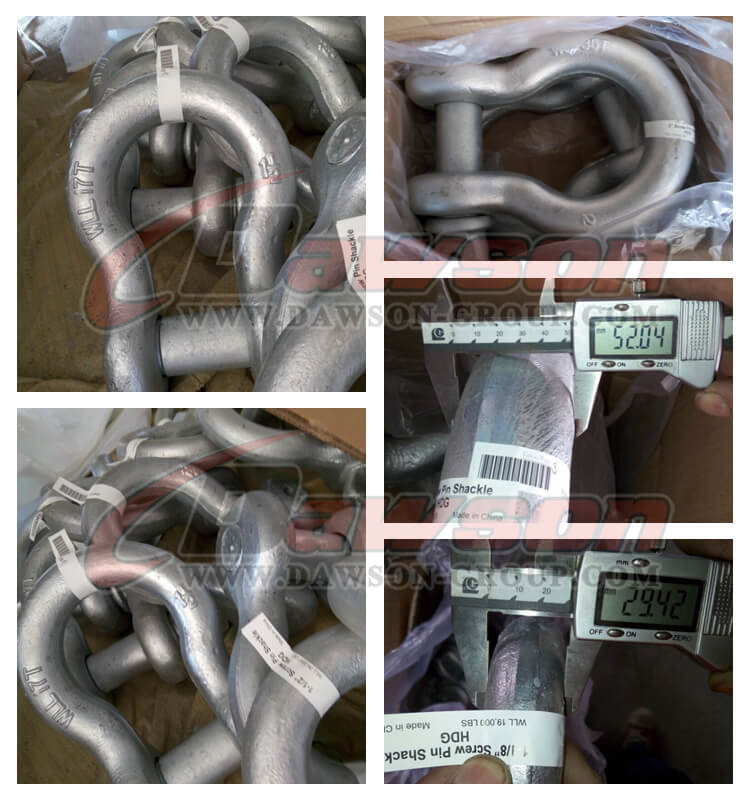

DS364 High Strength Screw Type Bow Shackle
Screw Pin Shackle for Lifting
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Shackle body: Carbon steel Bolt: Alloy steel
For lifting application. Forged-Quenched and tempered.
Bow body-Surface finish: Hot dip galvanizing/electro galvanizing
Nut-Surface finish: Electro galvanizing
Bolt-Surface finish: Hot dip galvanizing/electro galvanizing/powder plastified

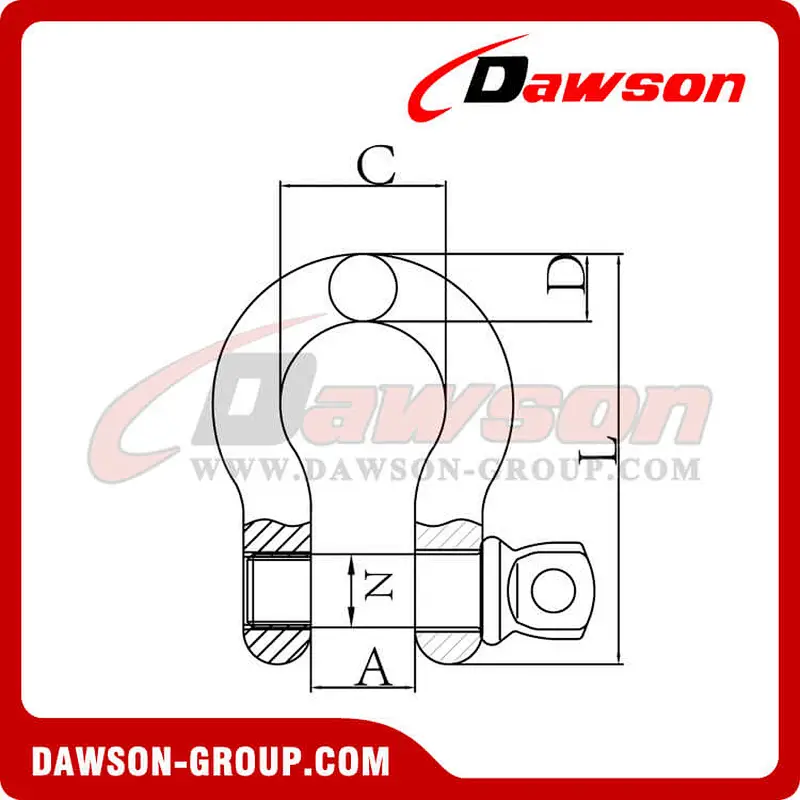

| ITEM NO. | WEIGHT/LBS | WLL/T | B.L/T | A±1.2 | C±1.2 | D±0.5 | N±0.2 | L±2 |
| DS-364-3/16 | 0.06 | 0.33 | 1.98 | 9.65 | 15.3 | 4.8 | 6 | 37.5 |
| DS-364-1/4 | 0.10 | 0.5 | 3 | 12 | 19.8 | 6.4 | 7.5 | 46.8 |
| DS-364-5/16 | 0.19 | 0.75 | 4.5 | 13.5 | 21.4 | 8 | 9.5 | 53 |
| DS-364-3/8 | 0.31 | 1 | 6 | 16.8 | 26.2 | 9.7 | 11.5 | 63.2 |
| DS-364-7/16 | 0.38 | 1.5 | 9 | 19.1 | 29.5 | 11.2 | 13.4 | 78 |
| DS-364-1/2 | 0.73 | 2 | 12 | 20.6 | 33.3 | 12.7 | 15.5 | 83.3 |
| DS-364-5/8 | 1.37 | 3.25 | 19.5 | 27 | 42.9 | 16 | 19.5 | 106.5 |
| DS-364-3/4 | 2.36 | 4.75 | 28.5 | 32 | 50.8 | 20.6 | 21.5 | 126.5 |
| DS-364-7/8 | 3.62 | 6.5 | 39 | 36.6 | 58 | 24.6 | 24 | 148 |
| DS-364-1 | 5.03 | 8.5 | 51 | 43 | 68.4 | 27 | 26.5 | 167 |
| DS-364-1-1/8 | 7.41 | 9.5 | 57 | 46 | 74 | 31.8 | 29.5 | 190 |
| DS-364-1-1/4 | 9.50 | 12 | 72 | 51.6 | 82.6 | 35 | 35.7 | 209.6 |
| DS-364-1-3/8 | 13.53 | 13.5 | 81 | 57.2 | 92.2 | 38.1 | 39 | 232.7 |
| DS-364-1-1/2 | 17.20 | 17 | 102 | 60.5 | 98.6 | 41 | 39 | 254 |
| DS-364-1-3/4 | 27.78 | 25 | 150 | 73.2 | 127 | 57 | 48 | 313.5 |
| DS-364-2 | 45.00 | 35 | 210 | 82.6 | 146 | 61 | 56 | 347.5 |
| DS-364-2-1/2 | 85.75 | 55 | 330 | 105 | 184.2 | 79.5 | 67.5 | 453.2 |
Ultimate load is 6 times the Working Load Limit.

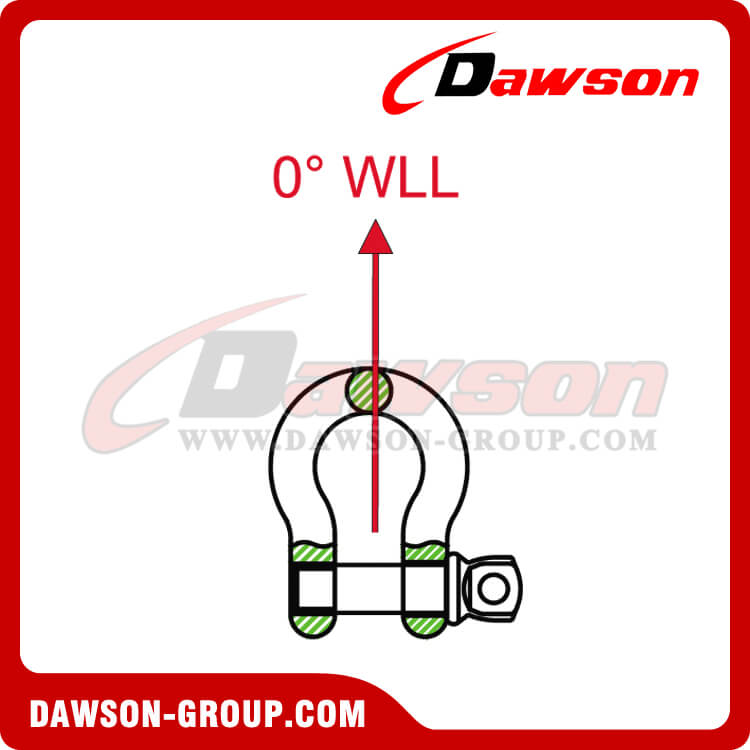

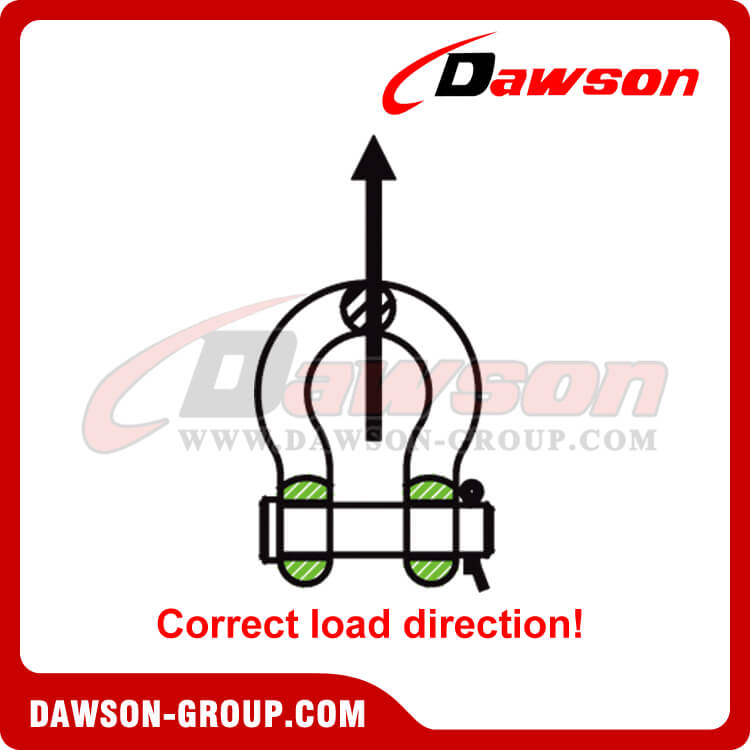

The above Working Load Limit is based on in-line load 0°.

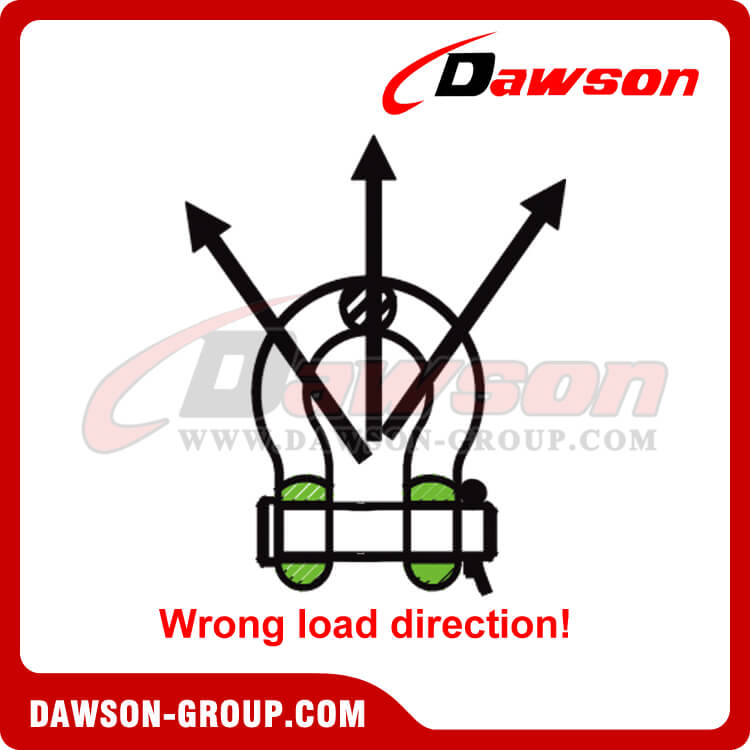

For Working Load Limit reduction due to side loading applications see instructions.
Shackle Application:

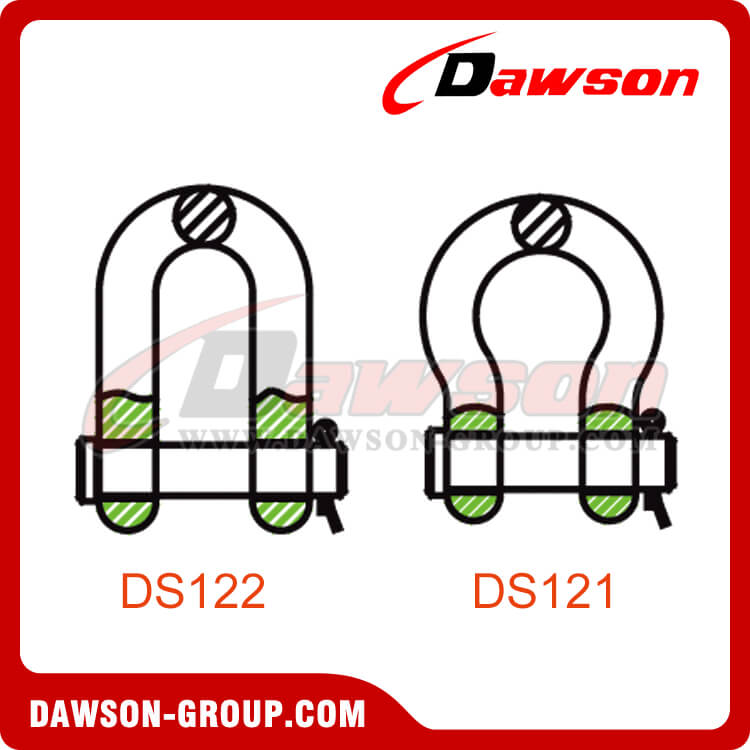

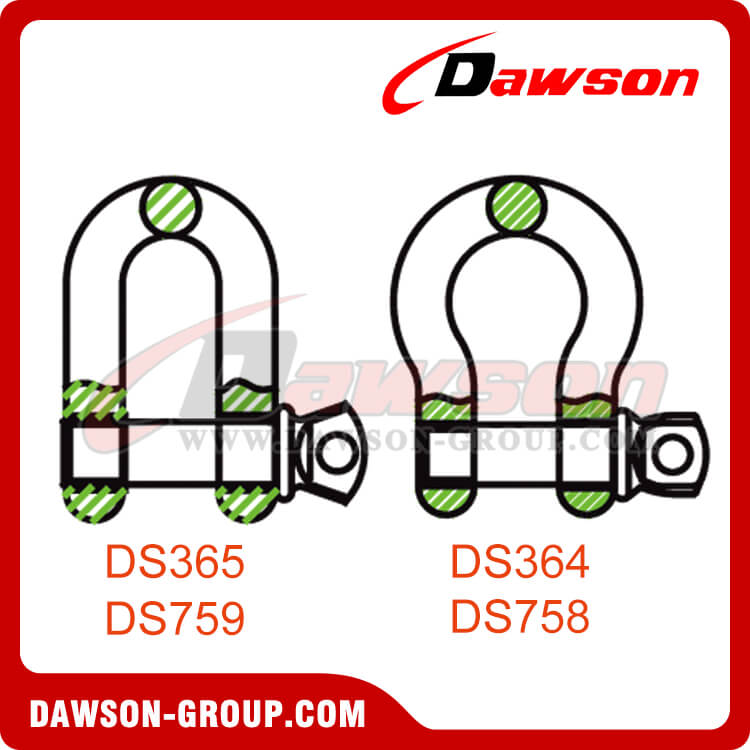

 | ROUND PIN SHACKLES They can be used in tie down, towing, suspension or lifting. When used for lifting, the load will be strictly applied in-line. Never be used in multiple legs sling. Never be used in side loading. Always use cotter pin. |
 |  |

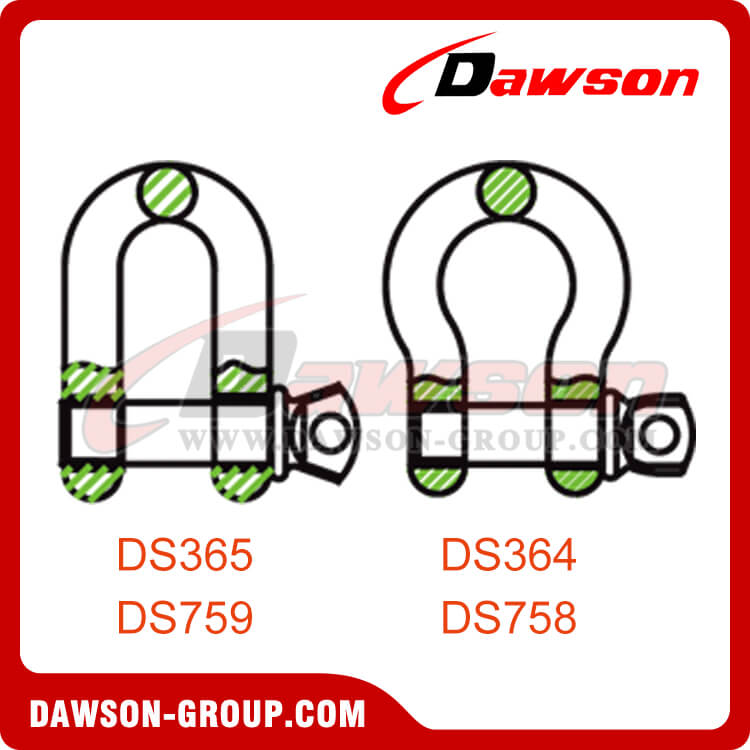

 | SCREW PIN SHACKLES They are used in pick and place applications. When used for side loading applications, lifting, the working load limit will reduce. Tighten screw pin before each pick. |

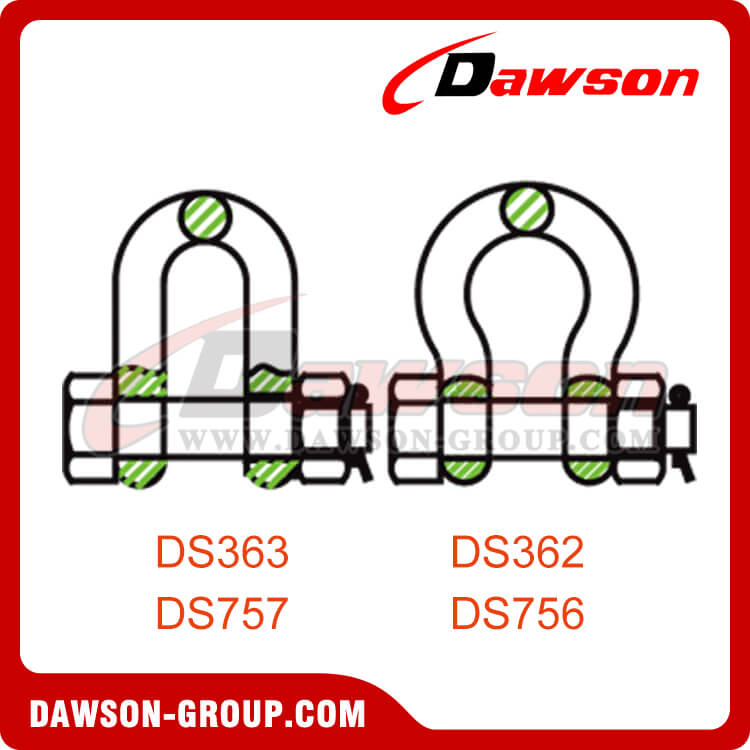

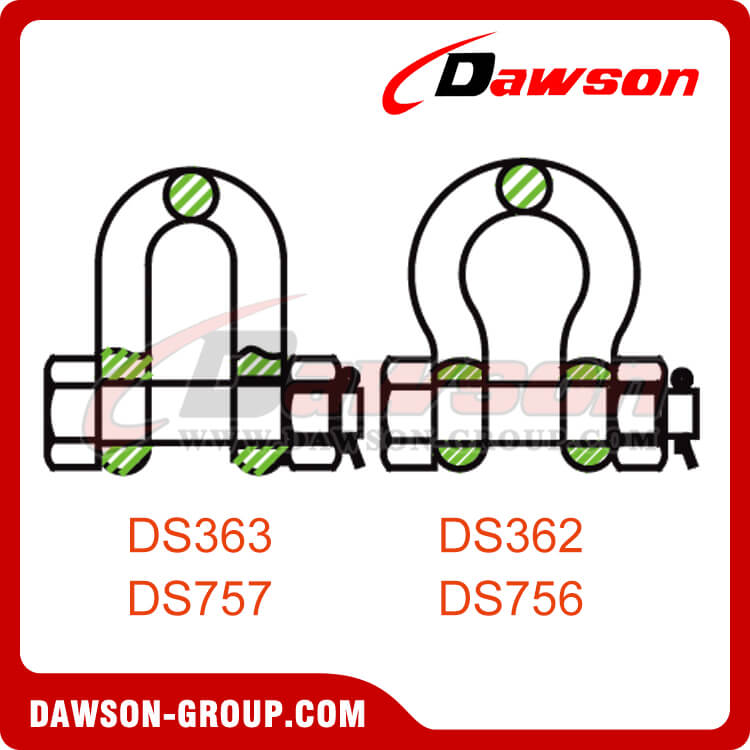

 | BOLT TYPE SHACKLES They are used in permanent or long term applications. When used for side loading applications, lifting, the working load limit will reduce. Tighten nut and always use cotter pin. |
  For SCREW PIN SHACKLE and BOLT TYPE SHACKLES, The Working Load Limit will reduce in side loading. | |

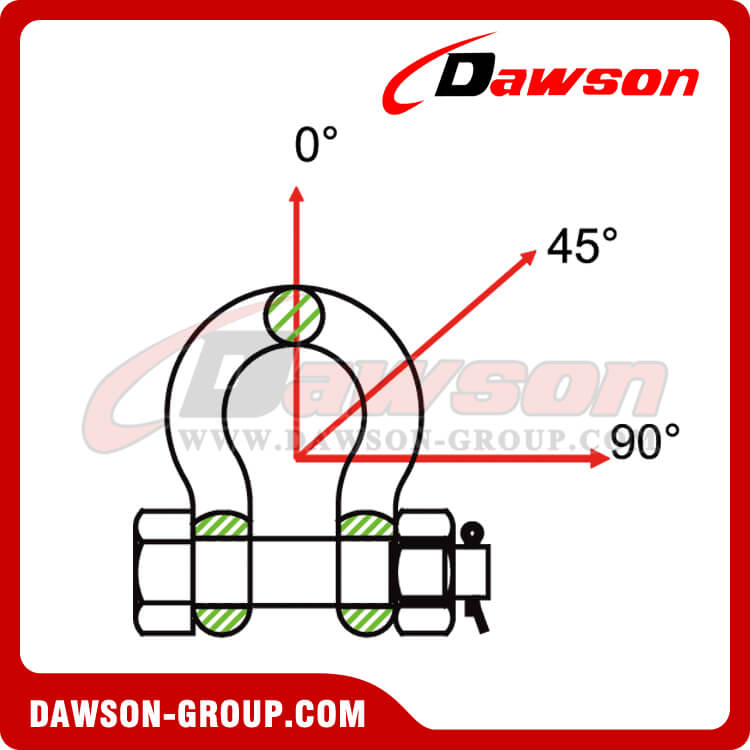

 | SHACKLES DS362 DS363 DS364 DS365LOAD ANGLEADJUSTED WORKING LOAD LIMIT0°WLL X 100%0°- 45°WLL X 70%45°- 90°WLL X 50% |

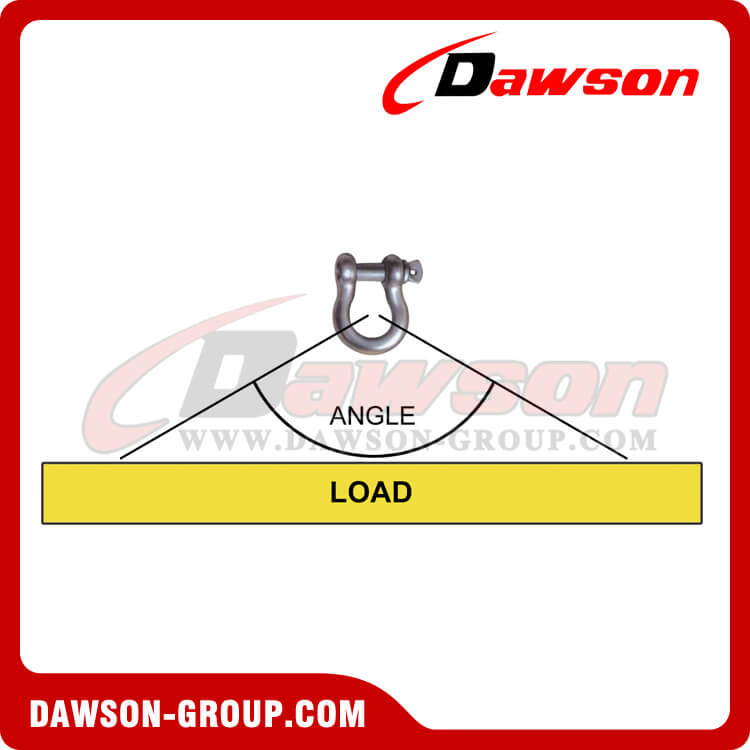

 In loading ,the maximum angle is 120°, Never exceed 120°. | |
Welcome to buy the newest and competitive price DAWSON DS364 High Strength Screw Type Bow Shackle from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: low price bow shackle, high quality screw type bow shackle, bulk high strength bow shackle, wholesale carbon steel bow shackle, buy discount bow shackle with screw, hot sale alloy forged bow shackle, customized commercial chain shackle, cheap price hot dip galvanized bow shackle, H.D.G. shackle, high tensile shackle China supplier, hot galvanizing shackle China manufacturer, bow shackle China factory, screw type bow shackle China exporter, high strength bow shackle in stock, high strength bow shackle free sample, bow shackle dawson brands, screw type bow shackle OEM
Other related products:

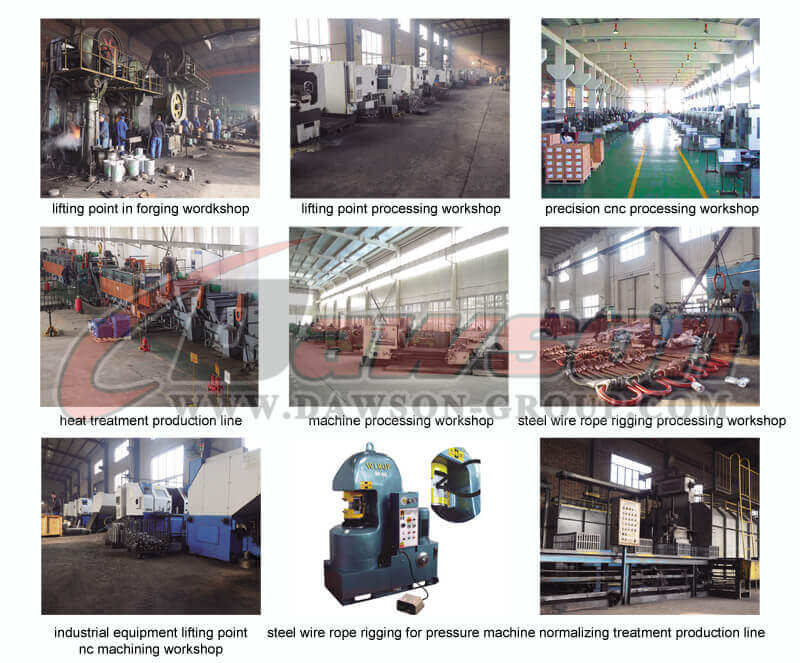

Production Equipment
