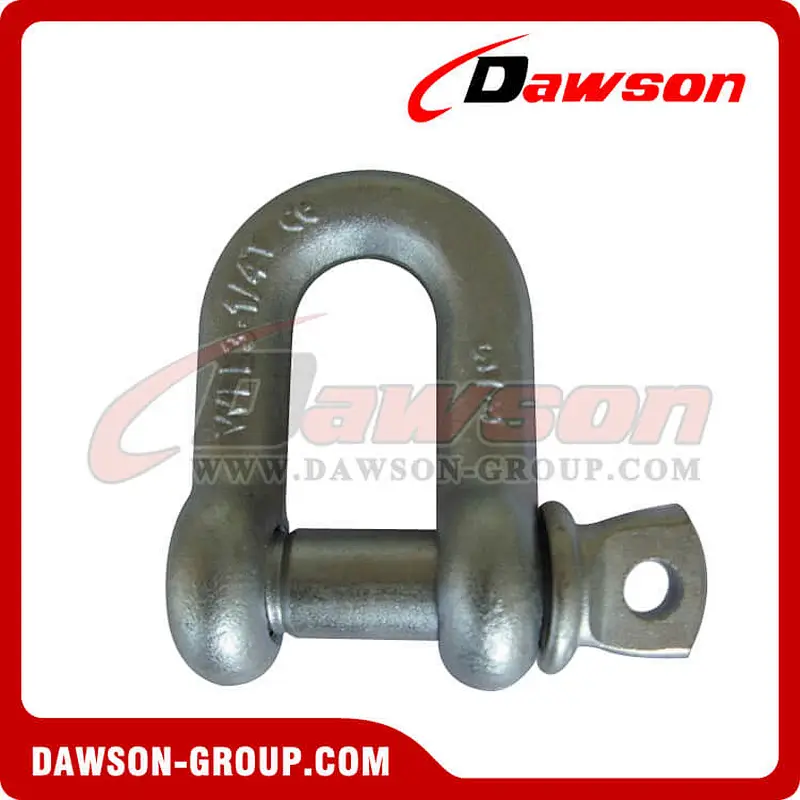

DS365 High Strength Screw Type Dee Shackle for Lifting
Screw Pin Shackle, High Strength Dee Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Shackle body: Carbon steel Bolt: Alloy steel
For lifting application. Forged-Quenched and tempered.
Bow body-Surface finish: Hot dip galvanizing/electro galvanizing
Nut-Surface finish: Electro galvanizing
Bolt-Surface finish: Hot dip galvanizing/electro galvanizing/powder plastified

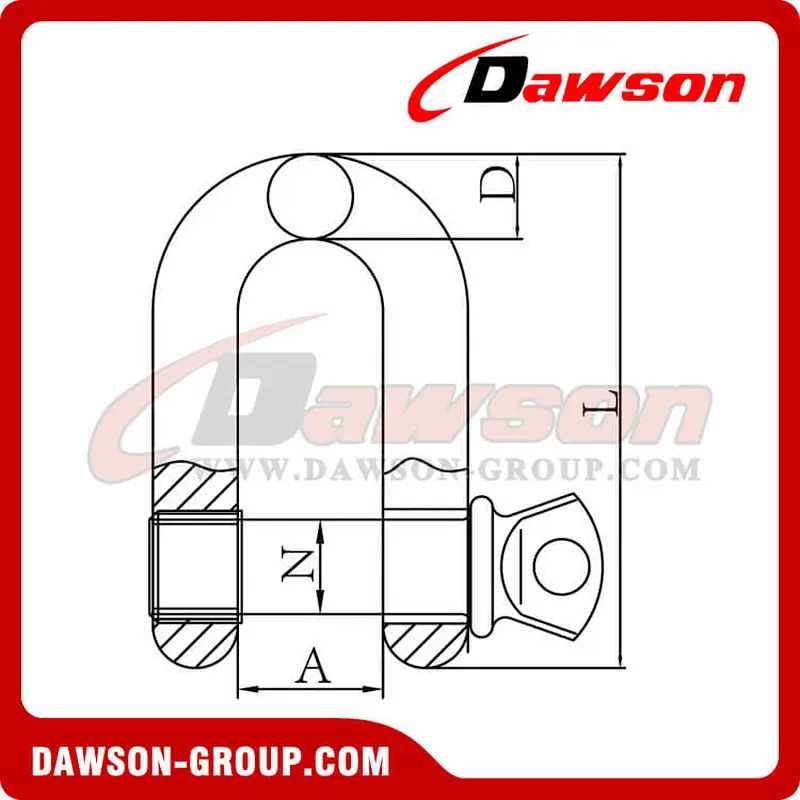

| ITEM NO. | WEIGHT/LBS | WLL/T | B.L/T | A±1 | D±0.5 | L±2 | N±0.2 |
| DS-365-1/4 | 0.11 | 0.5 | 3 | 12 | 6.35 | 40.4 | 7.5 |
| DS-365-5/16 | 0.17 | 0.75 | 4.5 | 13.5 | 8 | 48.5 | 9.5 |
| DS-365-3/8 | 0.28 | 1 | 6 | 16.8 | 9.7 | 58.5 | 11.5 |
| DS-365-7/16 | 0.43 | 1.5 | 9 | 19 | 11.2 | 67.6 | 13.4 |
| DS-365-1/2 | 0.59 | 2 | 12 | 20.6 | 12.7 | 77 | 15.5 |
| DS-365-5/8 | 1.25 | 3.25 | 19.5 | 27 | 15.5 | 95.5 | 19.5 |
| DS-365-3/4 | 2.63 | 4.75 | 28.5 | 32 | 20.6 | 116.6 | 21.5 |
| DS-365-7/8 | 3.16 | 6.5 | 39 | 36.6 | 24.6 | 135.5 | 24 |
| DS-365-1 | 4.75 | 2 | 12 | 20.6 | 25.4 | 150.8 | 26.5 |
| DS-365-1-1/8 | 6.75 | 9.5 | 57 | 46 | 31.75 | 172.2 | 29.5 |
| DS-365-1-1/4 | 9.06 | 12 | 72 | 51.6 | 35 | 190.5 | 35.7 |
| DS-365-1-3/8 | 11.63 | 13.5 | 81 | 57.2 | 38.1 | 210.3 | 39 |
| DS-365-1-1/2 | 15.95 | 17 | 102 | 60.5 | 41.1 | 230.1 | 39 |
| DS-365-1-3/4 | 26.75 | 25 | 150 | 73.2 | 53.8 | 278.6 | 48 |
| DS-365-2 | 42.31 | 35 | 210 | 82.6 | 50.8 | 312 | 56 |
| DS-365-2-1/2 | 71.75 | 55 | 330 | 105 | 66.5 | 377 | 67.5 |
Ultimate load is 6 times the Working Load Limit.

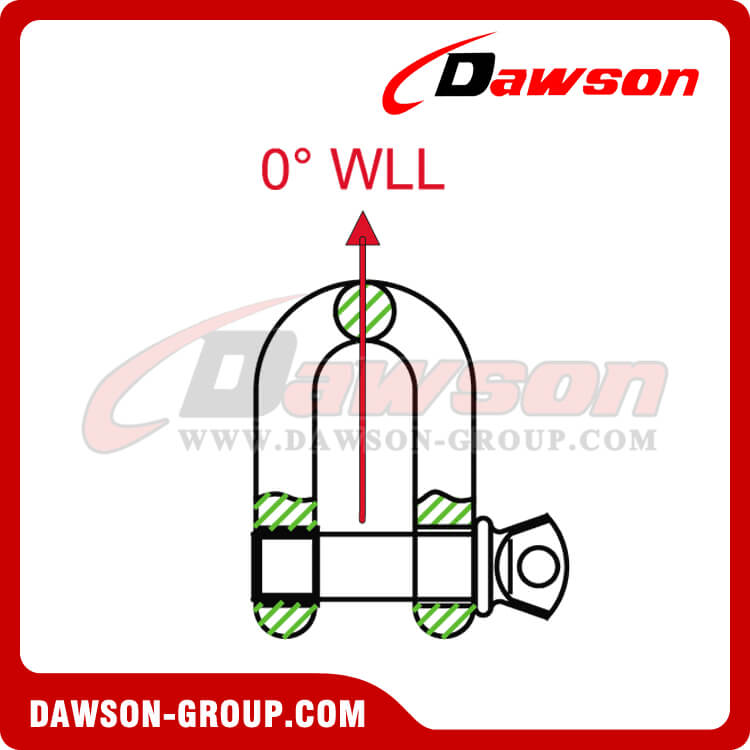

The above Working Load Limit is based on in-line load 0°.
For Working Load Limit reduction due to side loading applications see instructions.
Shackle Application:

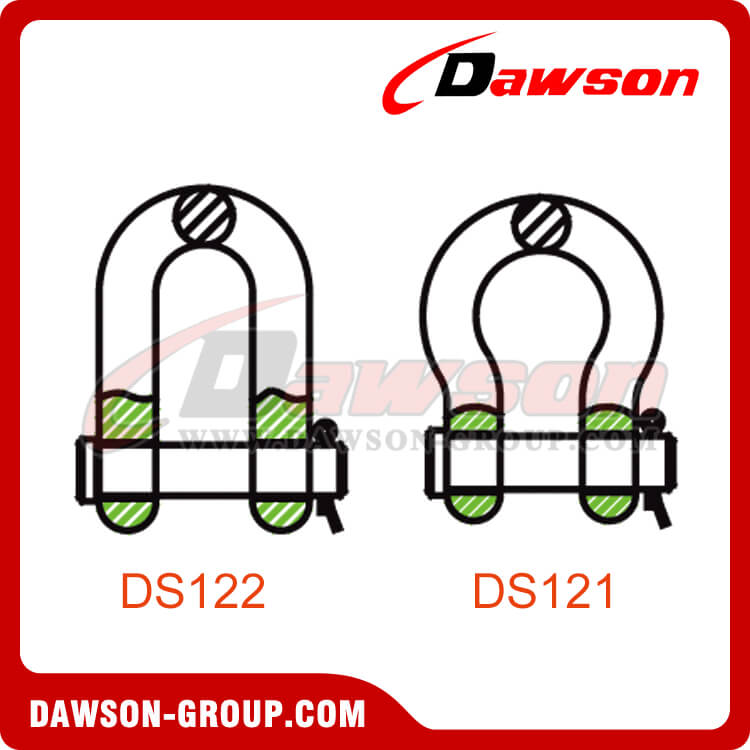

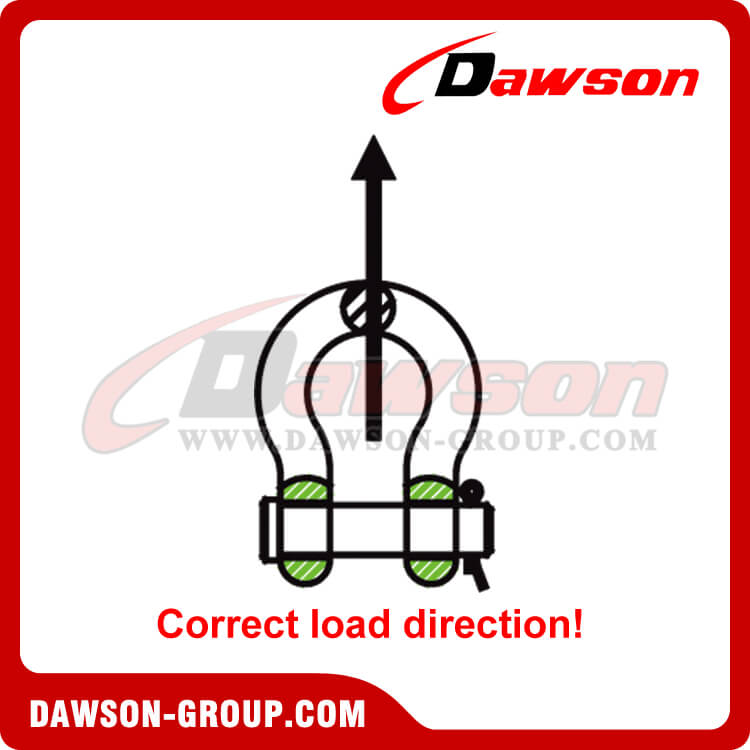

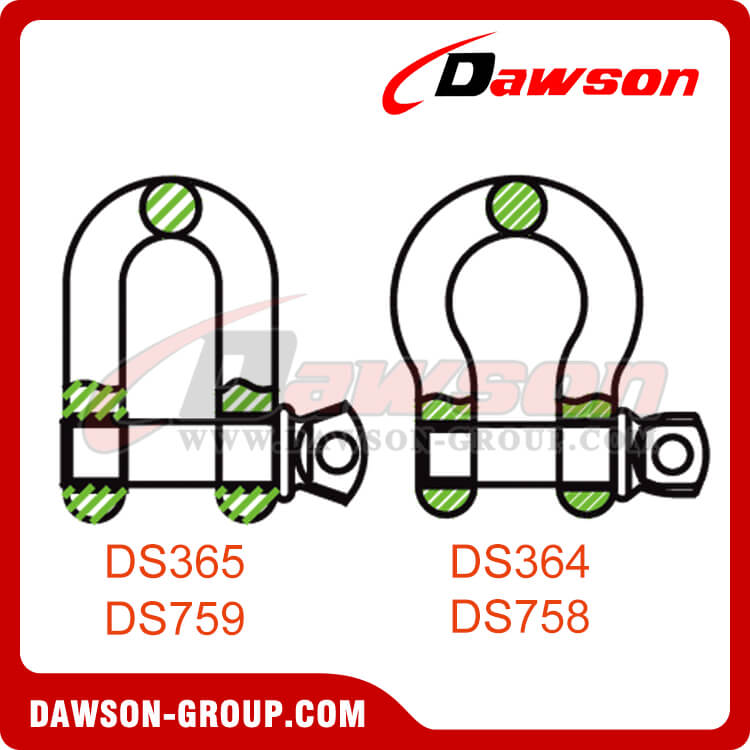

 | ROUND PIN SHACKLES They can be used in tie down, towing, suspension or lifting. When used for lifting, the load will be strictly applied in-line. Never be used in multiple legs sling. Never be used in side loading. Always use cotter pin. |
 |  |

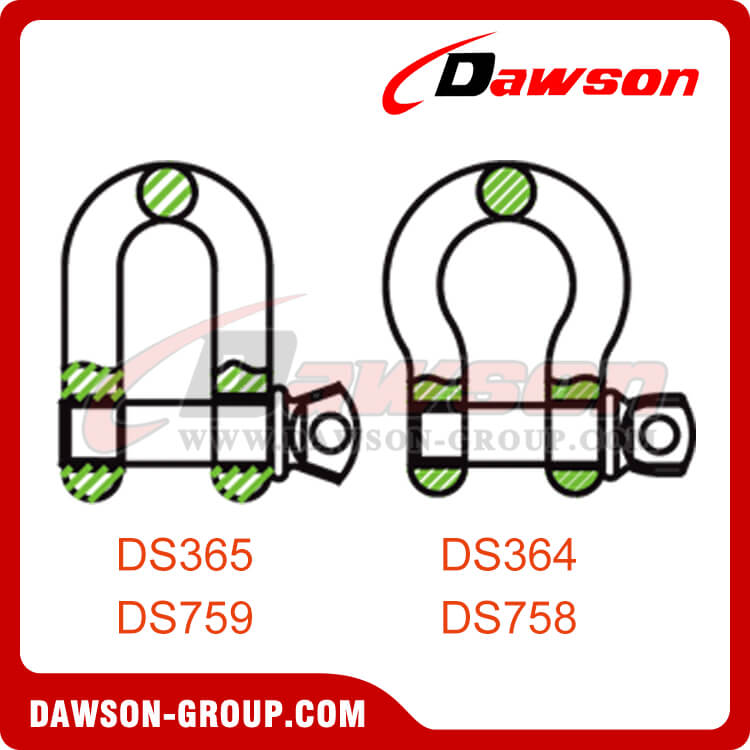

 | SCREW PIN SHACKLES They are used in pick and place applications. When used for side loading applications, lifting, the working load limit will reduce. Tighten screw pin before each pick. |

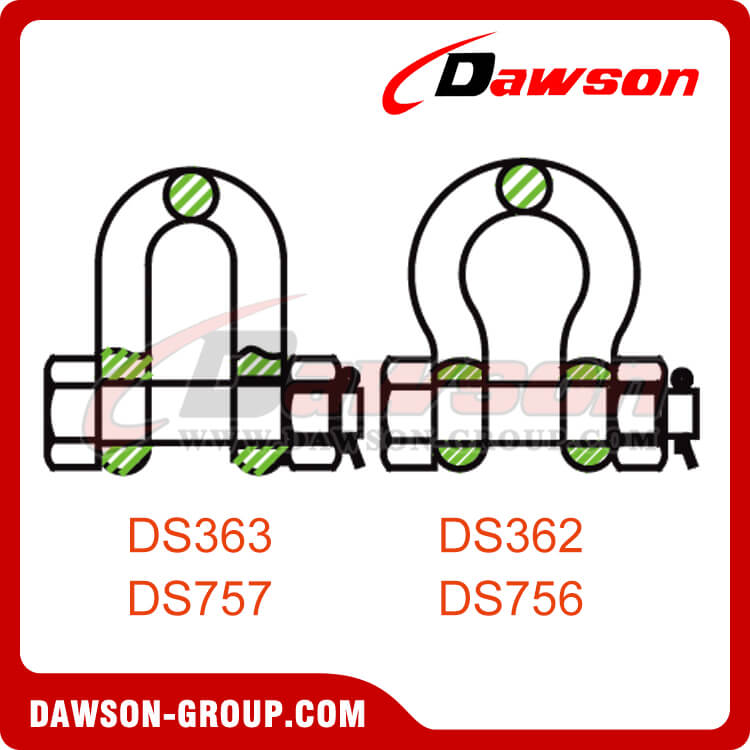

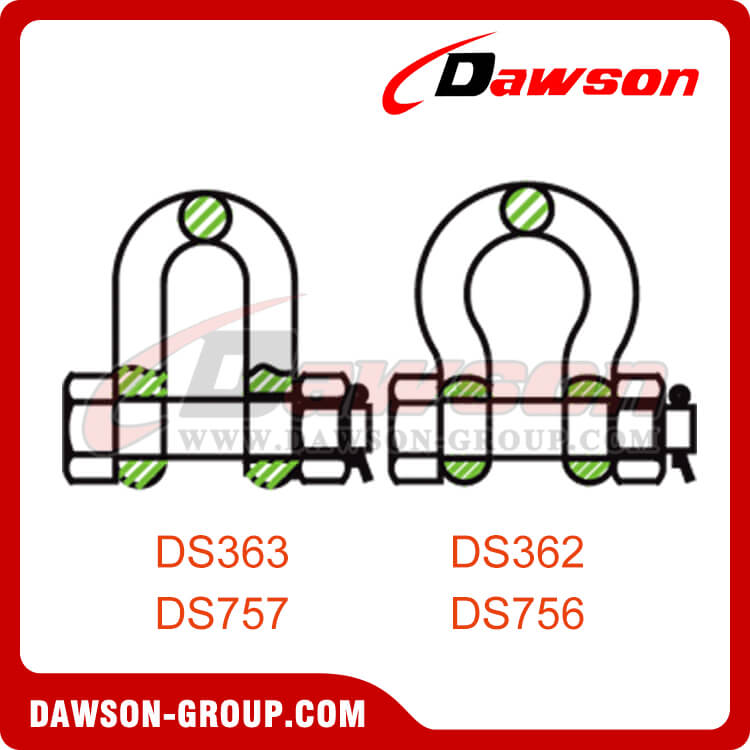

 | BOLT TYPE SHACKLES They are used in permanent or long term applications. When used for side loading applications, lifting, the working load limit will reduce. Tighten nut and always use cotter pin. |
  For SCREW PIN SHACKLE and BOLT TYPE SHACKLES, The Working Load Limit will reduce in side loading. | |

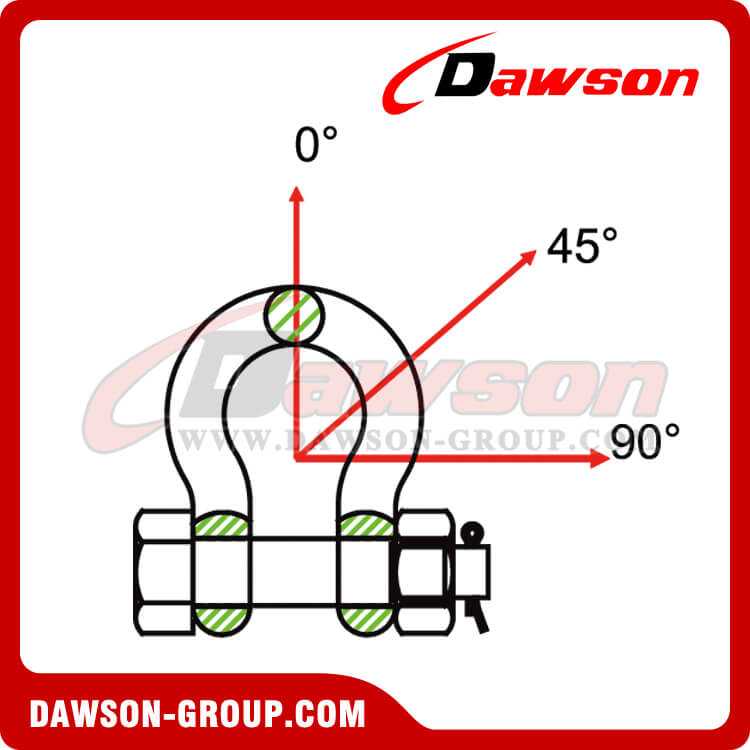

 | SHACKLES DS362 DS363 DS364 DS365LOAD ANGLEADJUSTED WORKING LOAD LIMIT0°WLL X 100%0°- 45°WLL X 70%45°- 90°WLL X 50% |

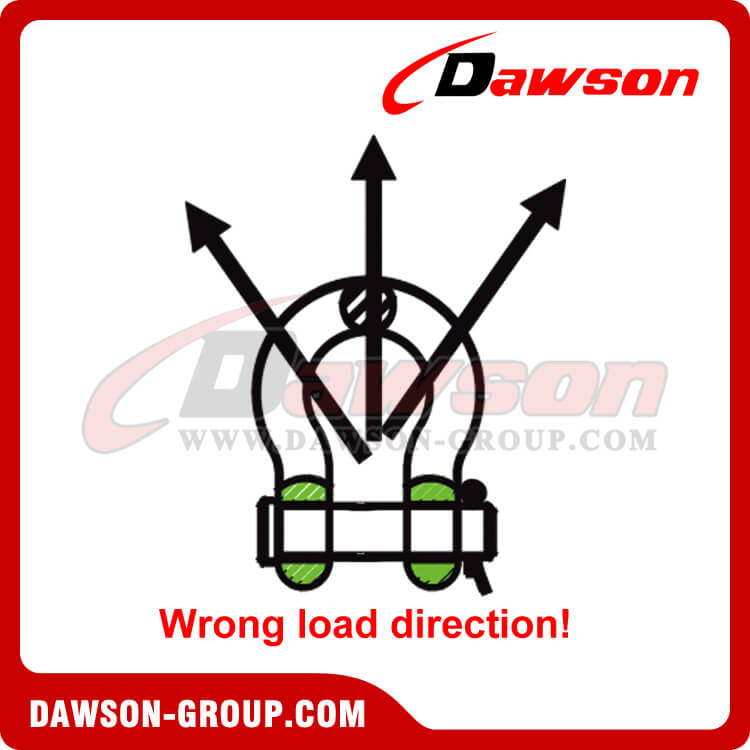

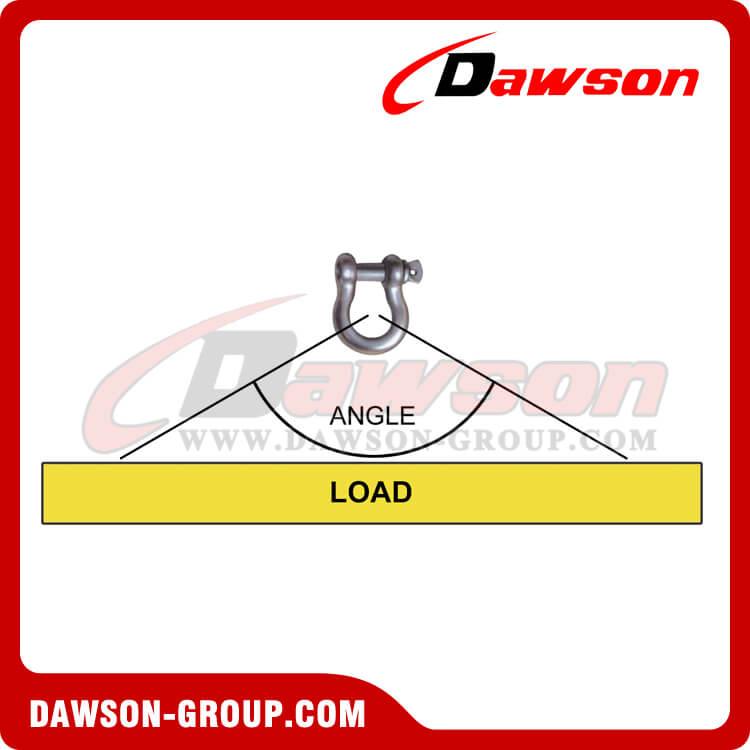

 In loading ,the maximum angle is 120°, Never exceed 120°. | |
Welcome to buy the newest and competitive price DAWSON DS365 High Strength Screw Type Dee Shackle for Lifting from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk dee shackle, low price screw type dee shackle, wholesale high strength dee shackle, high quality carbon steel dee shackle, hot sale dee shackle with bolt, customized dee shackle for lifting, buy discount commercial dee shackle, cheap price dee chain shackle, alloy steel shackle China supplier, drop forged dee shackle China manufacturer, bulk chain shackle China factory, screw type dee shackle China exporter, carbon steel dee shackle in stock, screw type dee shackle free sample, carbon steel dee shackle dawson brands, screw type dee shackle OEM

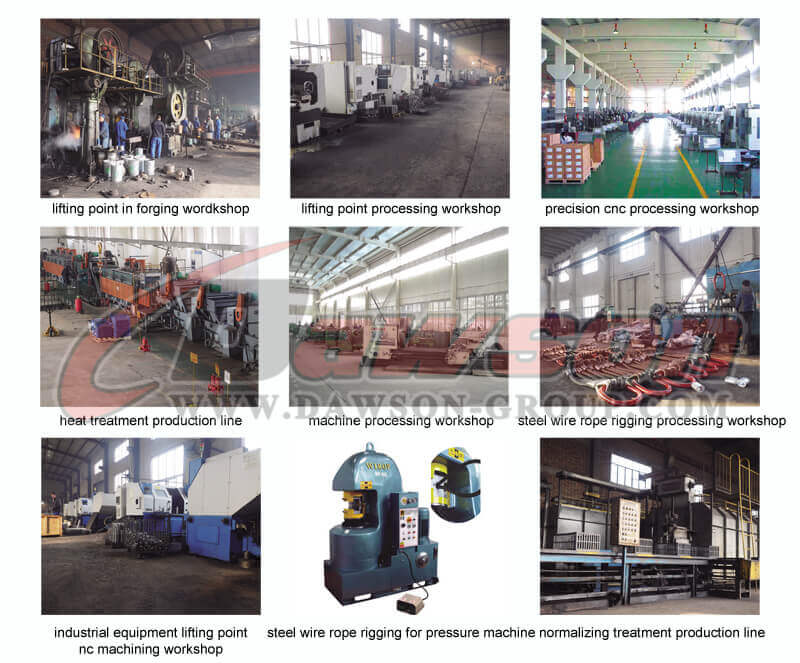

Production Equipment:
