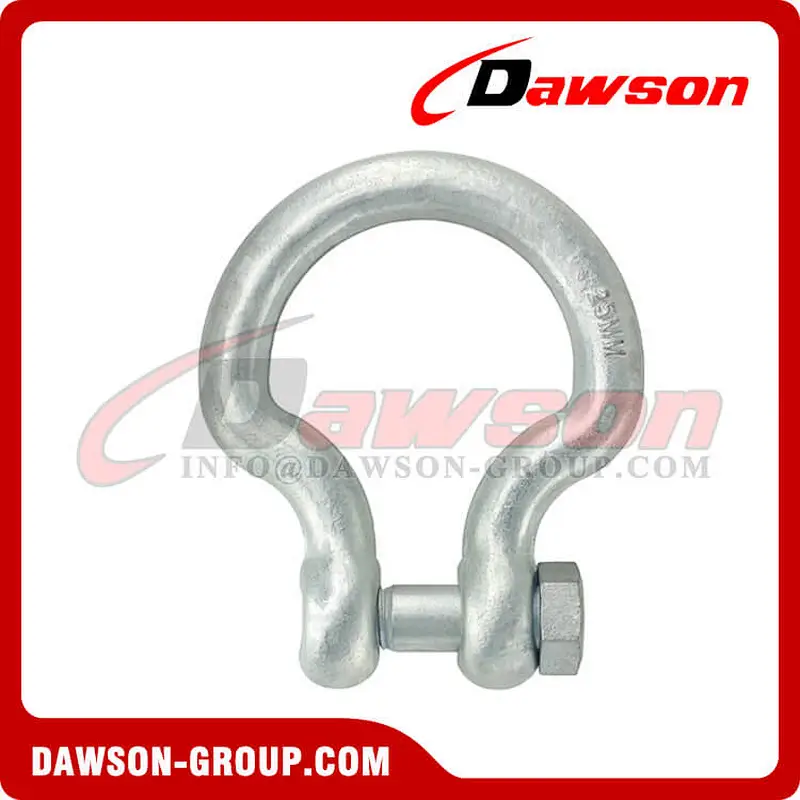

DS479 High Strength Bolt Type Bow Shackle for Lifting, Forged Super Alloy Steel Anchor Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel-Quenched and Tempered.
Individually proof test at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000cycles.
Breakage test.
100% magnaflux crack detection.
Surface finish: Powder Plastified
Red RAL3020 / Yellow RAL1003

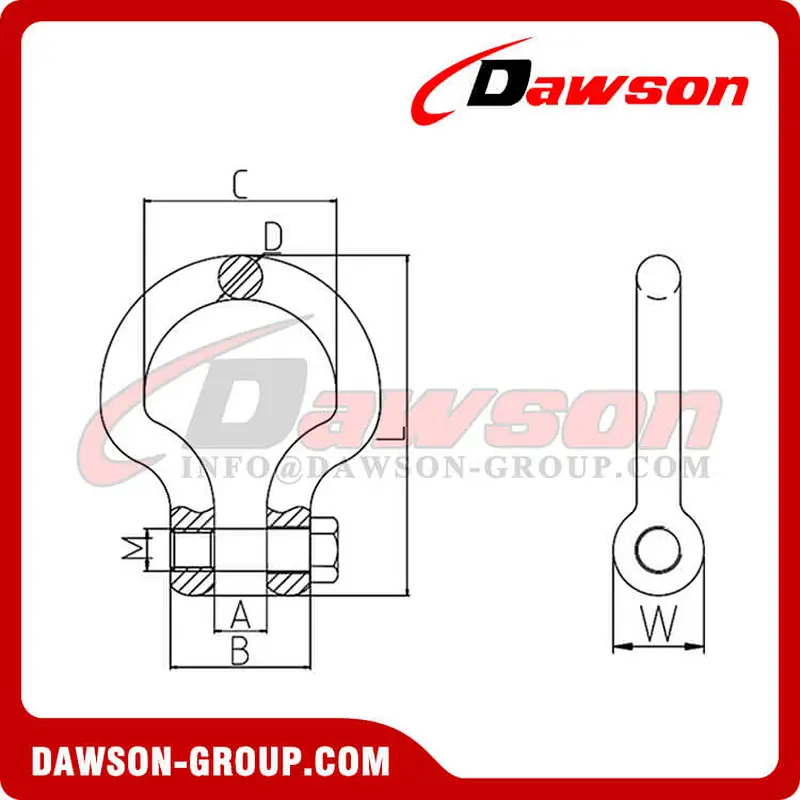

| ITEM NO. | WEIGHT/KG | BL(T)(Y) | BL(T)(X) | A±2 | B±2 | C±2 | D±3 | M±3 | L±2 | W±2 |
| DS479-19mm | 1.15 | 13.6 | 9.8 | 24 | 60 | 90 | 19 | 20 | 157.5 | 36 |
| DS479-22mm | 1.7 | 18.8 | 13.15 | 27 | 71 | 100 | 22 | 22 | 175.5 | 45 |
| DS479-25mm | 2.25 | 24.8 | 17 | 30 | 80 | 110 | 25 | 24 | 194 | 52 |
Welcome to buy the newest and competitive price DAWSON DS479 High Strength Bolt Type Bow Shackle for Lifting from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Factory & Package Show:
