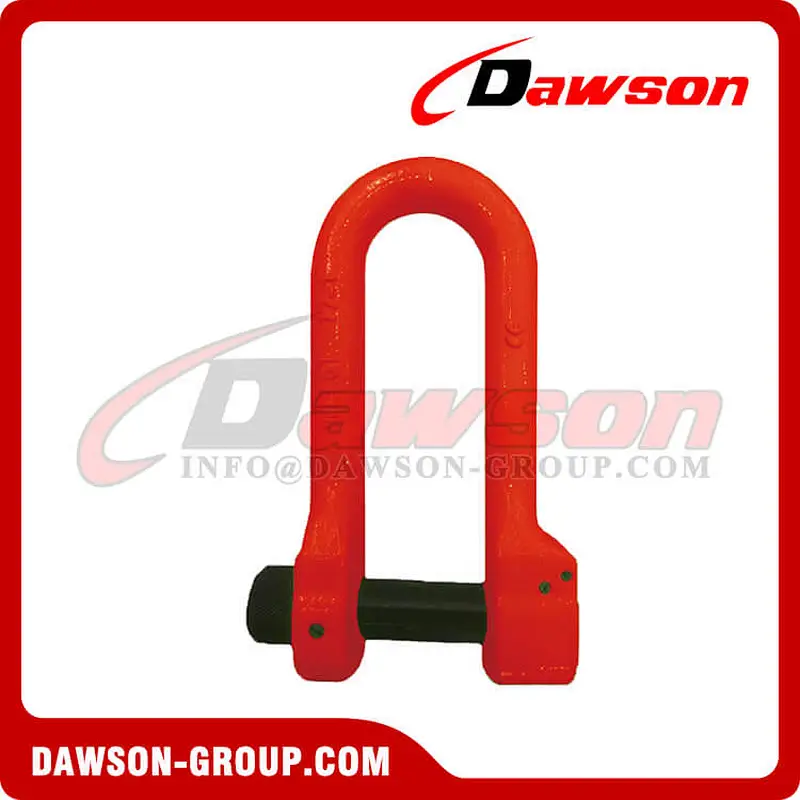

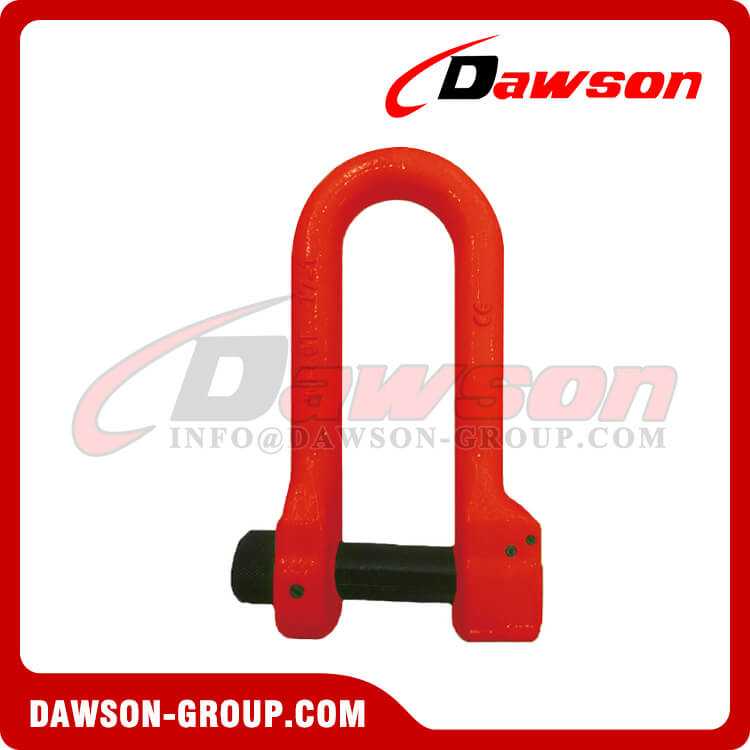

DS892 Forged Super Alloy Steel D Shackle with Safety Pin, High Strength Dee Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel-Quenched and Tempered.
Individually proof test at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000cycles.
Breakage test.
100% magnaflux crack detection.

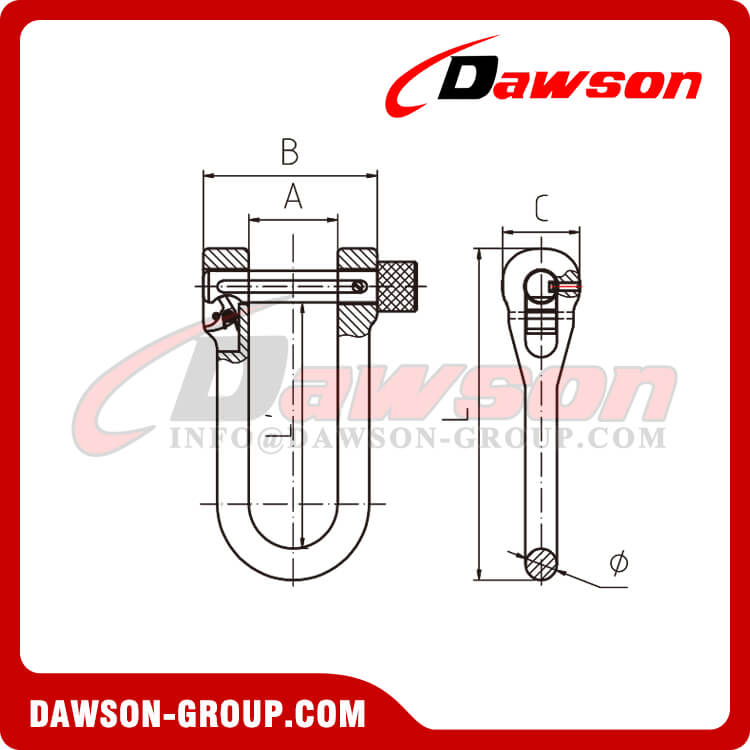

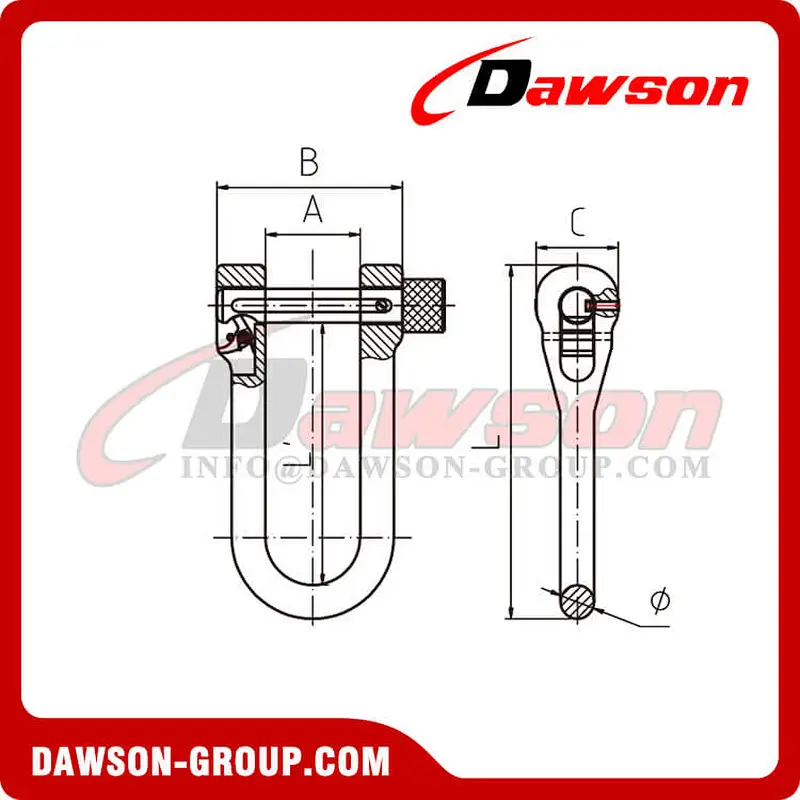

| Item No. | Weight(kg) | A±1.5 | B±1 | C±1 | L’±3 | L±5 | Φ±1 |
| DS892-2.5T | 1 | 45 | 88 | 39 | 124 | 167.5 | 16 |
| DS892-4T | 1.7 | 50 | 103.5 | 44.2 | 168.4 | 220 | 19 |
| DS892-6T | 2.45 | 50.2 | 110 | 52.5 | 159 | 221 | 22 |
Shackle Application:

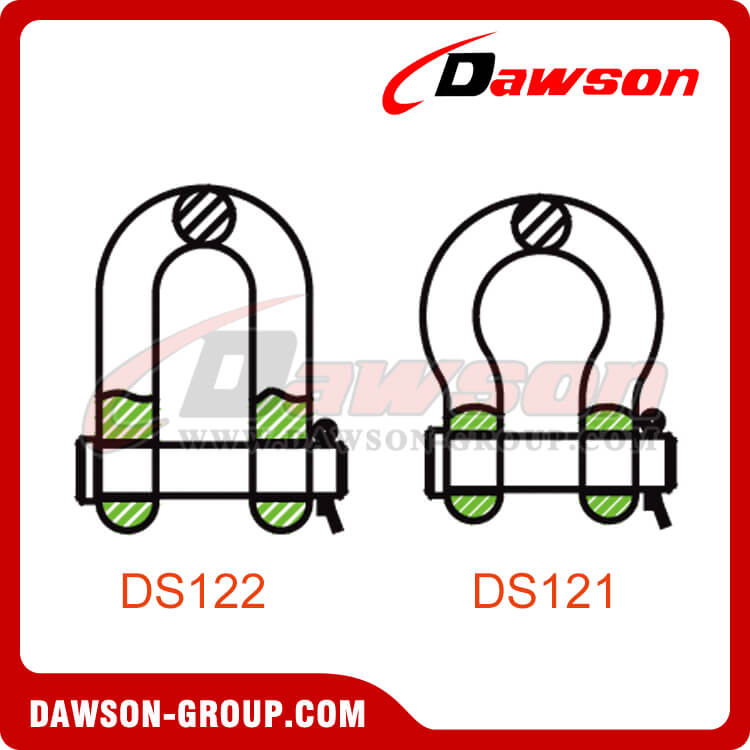

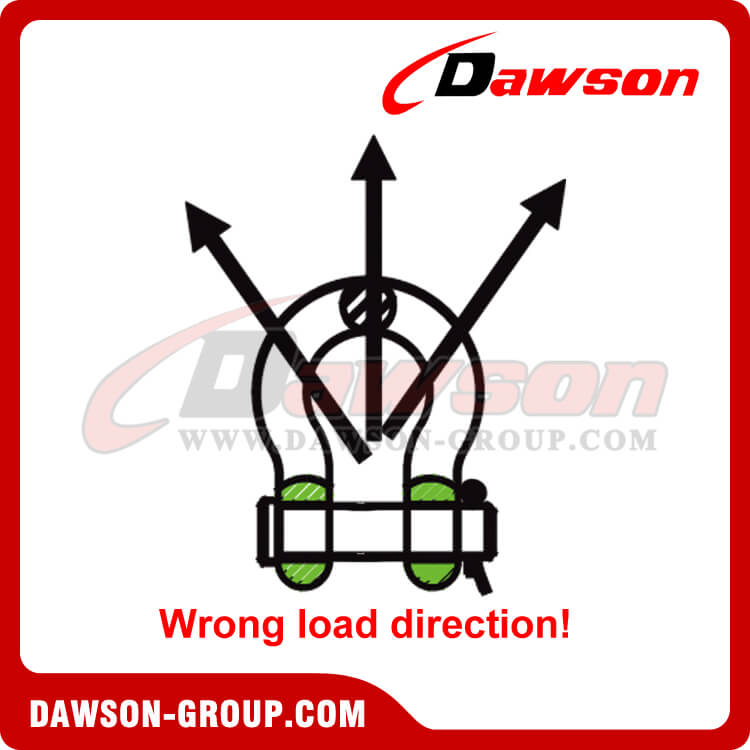

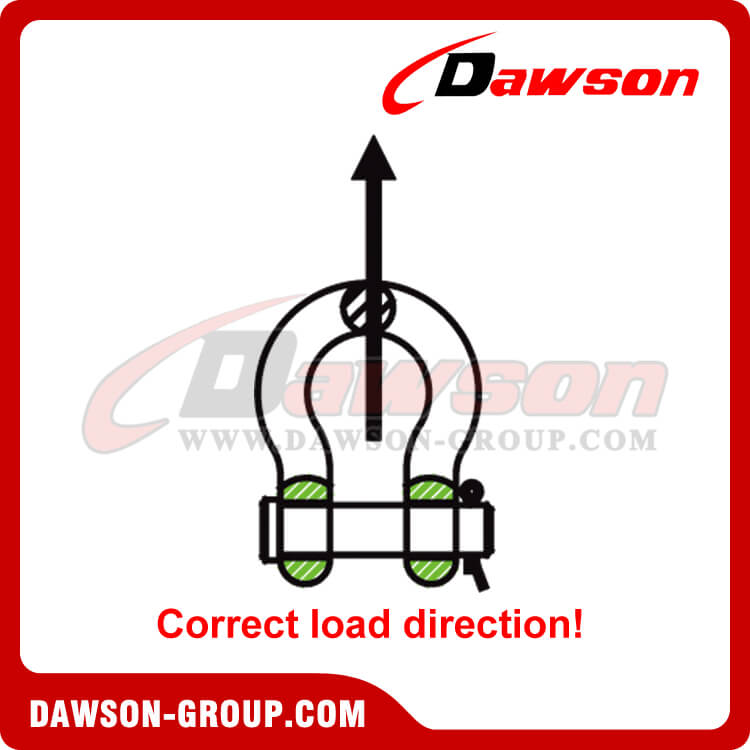

 | ROUND PIN SHACKLES They can be used in tie down, towing, suspension or lifting. When used for lifting, the load will be strictly applied in-line. Never be used in multiple legs sling. Never be used in side loading. Always use cotter pin. |
 |  |

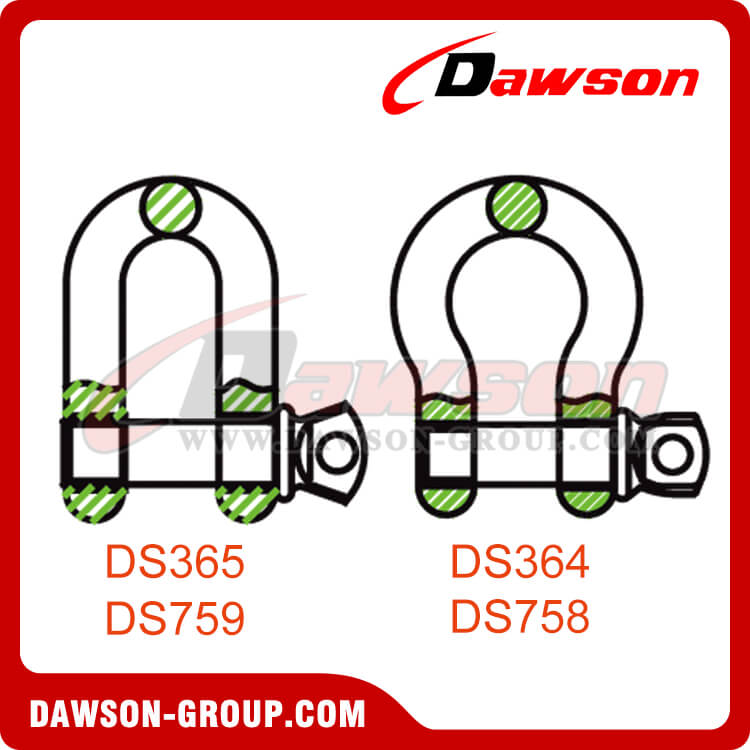

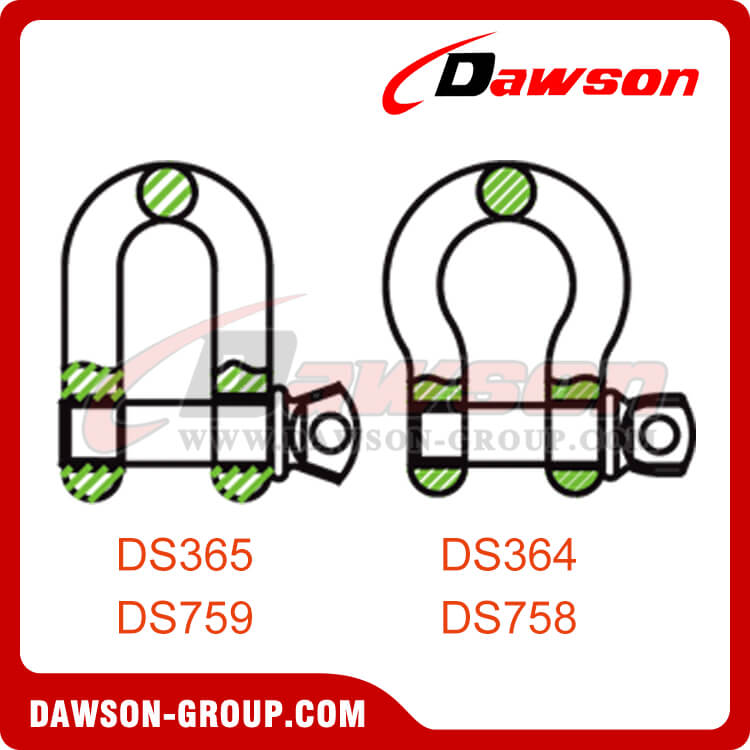

 | SCREW PIN SHACKLES They are used in pick and place applications. When used for side loading applications, lifting, the working load limit will reduce. Tighten screw pin before each pick. |

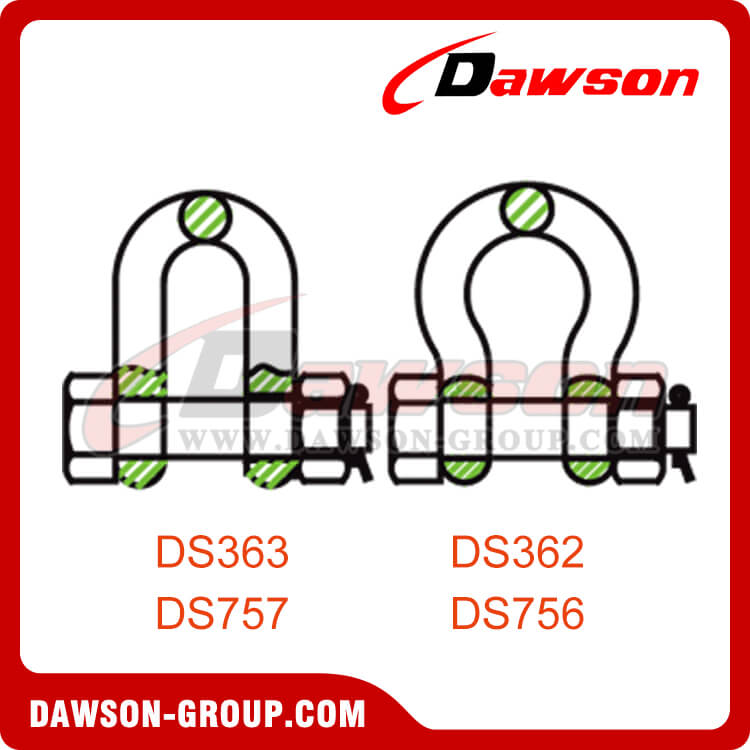

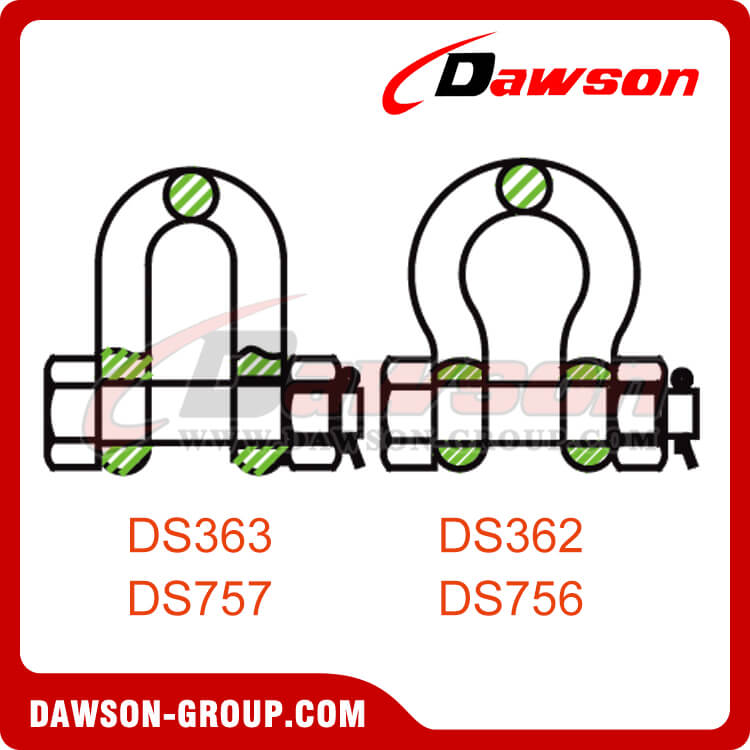

 | BOLT TYPE SHACKLES They are used in permanent or long term applications. When used for side loading applications, lifting, the working load limit will reduce. Tighten nut and always use cotter pin. |

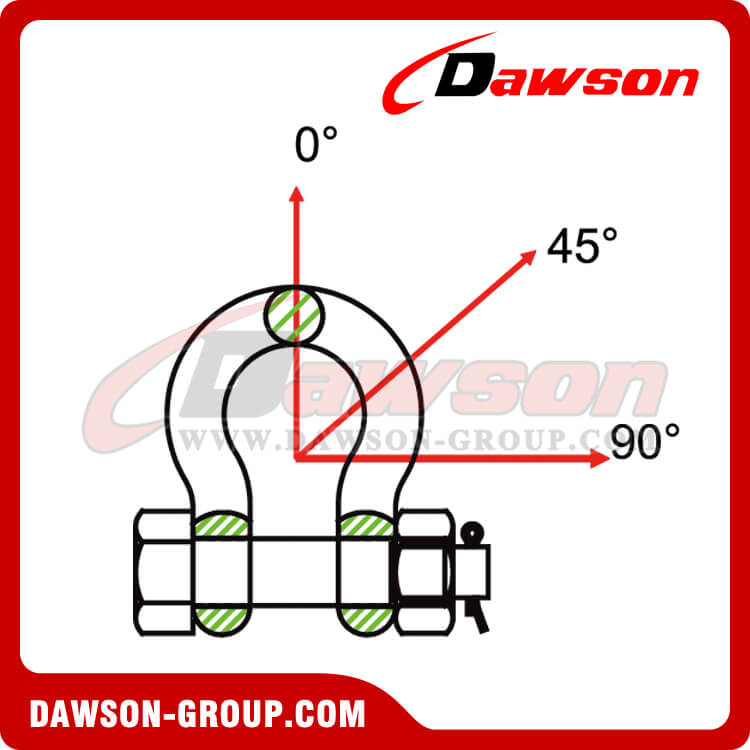

  For SCREW PIN SHACKLE and BOLT TYPE SHACKLES, The Working Load Limit will reduce in side loading. | |
 | SHACKLES DS362 DS363 DS364 DS365LOAD ANGLEADJUSTED WORKING LOAD LIMIT0°WLL X 100%0°- 45°WLL X 70%45°- 90°WLL X 50% |

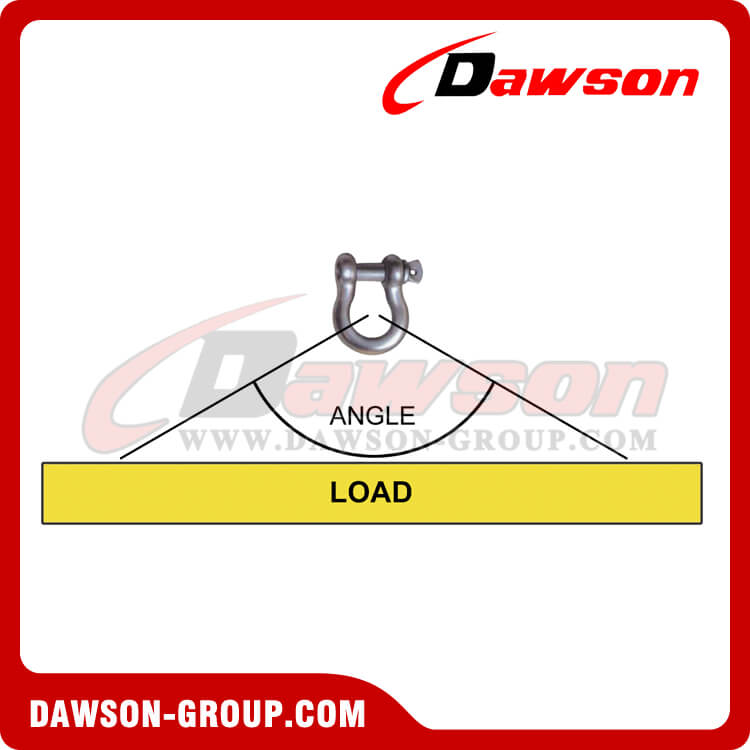

 In loading ,the maximum angle is 120°, Never exceed 120°. | |
Welcome to buy the newest and competitive price DAWSON DS892 Forged Super Alloy Steel D Shackle with Safety Pin from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
