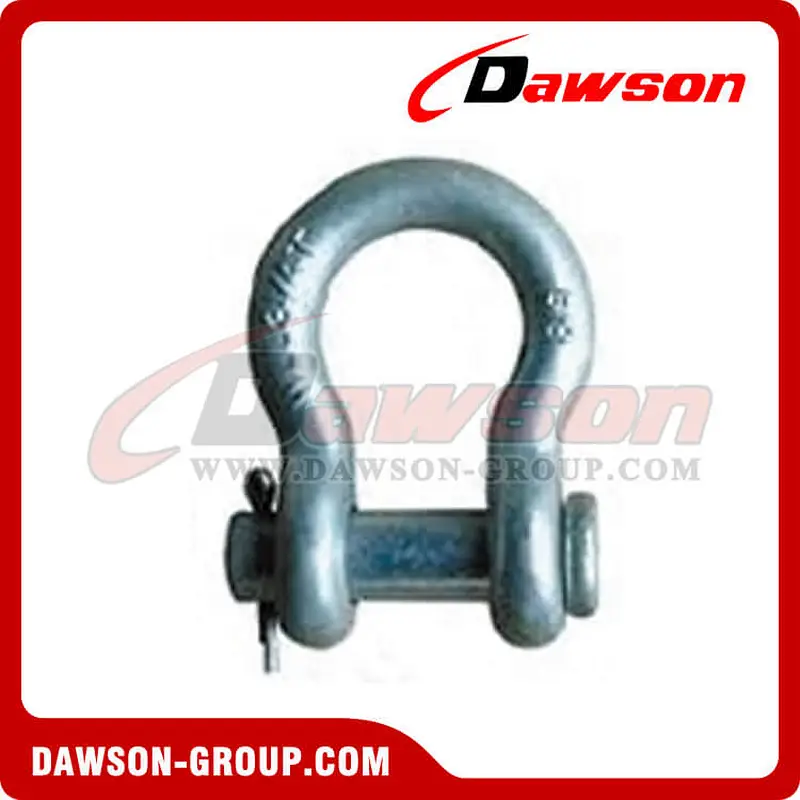

Forged Alloy Bow Shackles, Anchor Shackle with Round Pin
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Anchor Bow Shackles, Round Pin, Forged Alloy Steel, High Tensile Strength, Meet to US Federal Specification. G213
Finish: Round pin Bow Shackles are supplied in hot dip galvanized finish or self colored.
Working Load Limit permanently shown on every Anchor shackle.
Shackle Material: High tensile steel Forged - Quenched and Tempered.
Shackle Size: Capacities 1/3 thru 55 metric tons.
Fatigue rated

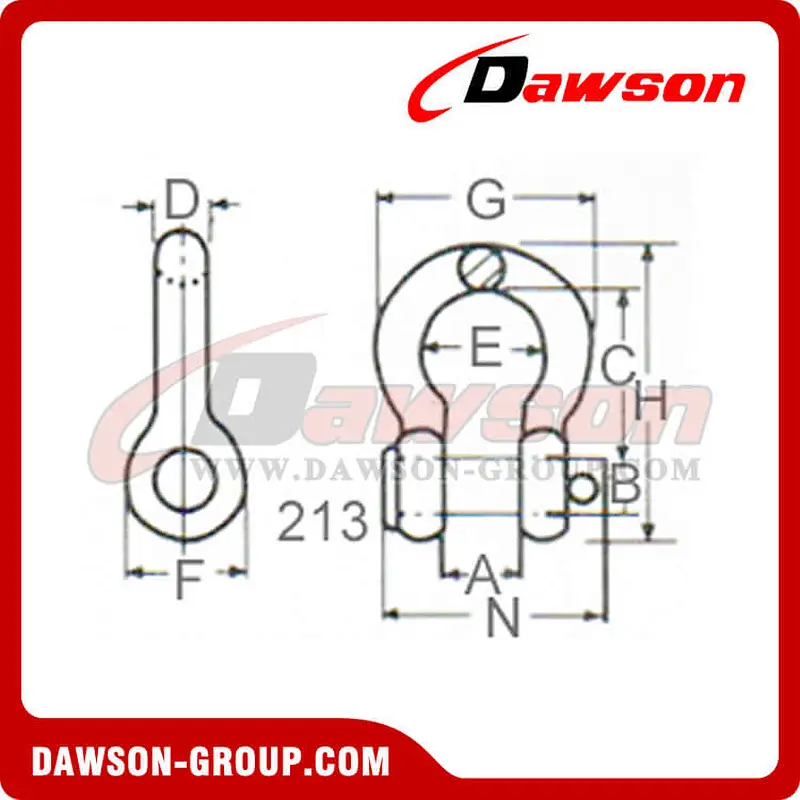

| ITEM NO | Nominal Size | Working Load Limit | Dimensions (mm) | Weight each | ||||||||||
| (in.) | (tons) | A | B | C | D | E | F | G | H | I | M | N | (kg) | |
| DS-RBS0632 | 3/16 | 1/3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 24.9 | 37.3 | 4.06 | 28.4 | 4.85 | 0.03 |
| DS-RBS0832 | 1/4 | 1/2 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 | 0.05 |
| DS-RBS1032 | 5/16 | 3/4 | 13.5 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 37.3 | 53.0 | 5.60 | 42.2 | 7.85 | 0.09 |
| DS-RBS1232 | 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63.0 | 6.35 | 51.5 | 9.65 | 0.14 |
| DS-RBS1432 | 7/16 | 1-1/2 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.5 | 74.0 | 7.85 | 60.5 | 11.2 | 0.17 |
| DS-RBS1632 | 1/2 | 2 | 20.6 | 16.0 | 47.8 | 12.7 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.7 | 0.33 |
| DS-RBS2032 | 5/8 | 3-1/4 | 26.9 | 19.1 | 60.5 | 16.0 | 42.9 | 38.1 | 74.5 | 106 | 11.2 | 85.0 | 17.5 | 0.62 |
| DS-RBS2432 | 3/4 | 4-3/4 | 31.8 | 22.4 | 71.5 | 19.1 | 51.0 | 46.0 | 89.0 | 126 | 12.7 | 101 | 20.6 | 1.07 |
| DS-RBS2832 | 7/8 | 6-1/2 | 36.6 | 25.4 | 84.0 | 22.4 | 58.0 | 53.0 | 102 | 148 | 12.7 | 114 | 24.6 | 1.64 |
| DS-RBS3232 | 1 | 8-1/2 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 119 | 167 | 14.2 | 129 | 26.9 | 2.28 |
| DS-RBS3632 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 108 | 29.5 | 74.0 | 68.5 | 131 | 190 | 16.0 | 142 | 31.8 | 3.36 |
| DS-RBS4032 | 1-1/4 | 12 | 51.5 | 35.1 | 119 | 32.8 | 92.5 | 76.0 | 146 | 210 | 17.5 | 156 | 35.1 | 4.31 |
| DS-RBS4432 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 133 | 36.1 | 92.0 | 84.0 | 162 | 233 | 19.1 | 174 | 38.1 | 6.14 |
| DS-RBS4832 | 1-1/2 | 17 | 60.5 | 41.4 | 146 | 39.1 | 98.5 | 92.0 | 175 | 254 | 20.6 | 187 | 41.1 | 7.80 |
| DS-RBS5632 | 1-3/4 | 25 | 73.0 | 51.0 | 178 | 46.7 | 127 | 106 | 225 | 313 | 25.4 | 231 | 57.0 | 12.6 |
| DS-RBS6432 | 2 | 35 | 82.5 | 57.0 | 197 | 53.0 | 146 | 122 | 253 | 348 | 31.0 | 263 | 61.0 | 20.4 |
| DS-RBS8032 | 2-1/2 | 55 | 105 | 70.0 | 267 | 69.0 | 184 | 145 | 327 | 453 | 35.1 | 330 | 79.5 | 38.9 |
Application: The round pin shackle only fixed with a simple split pin, easy to lose or fixed.
Welcome to buy the newest and competitive price DAWSON Forged Alloy Bow Shackles with Round Pin from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk bow shackle, low price forged alloy bow shackle, high quality bow shackle with round pin, wholesale forged bow shackle with round pin, buy discount forged alloy bow shackle, hot sale shackle with safety pin, customized high tensile bow shackle, cheap price bow shackle, bow shackle China supplier, bow shackle China manufacturer, bow shackle China factory, bow shackle China exporter, bow shackle in stock, fixed nut shackle free sample, fixed nut shackle dawson brands, bow shackle OEM

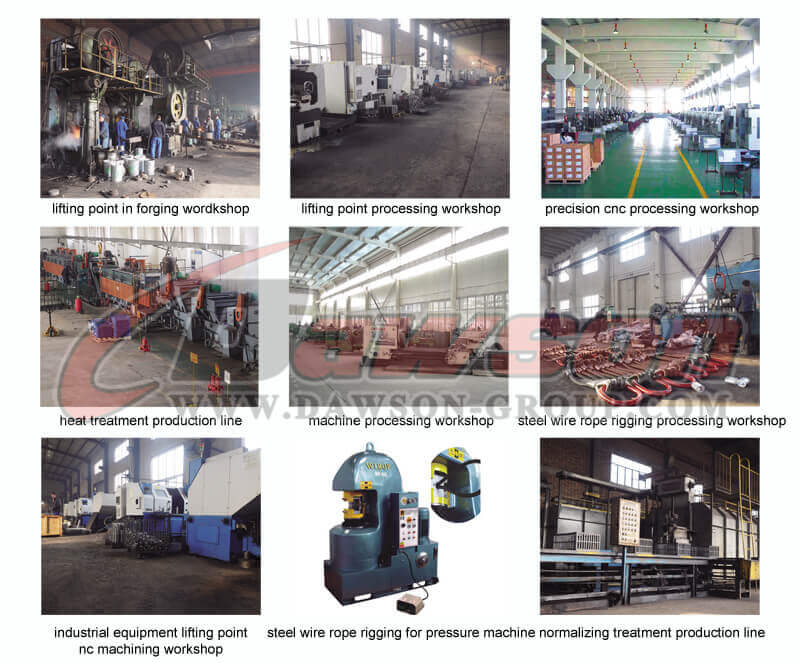

Production Equipment:

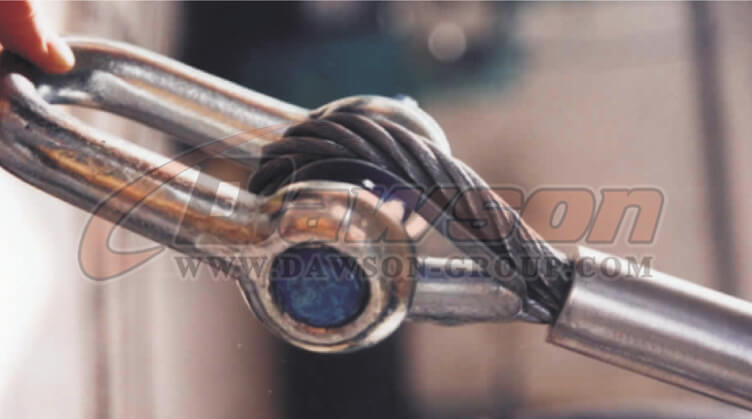

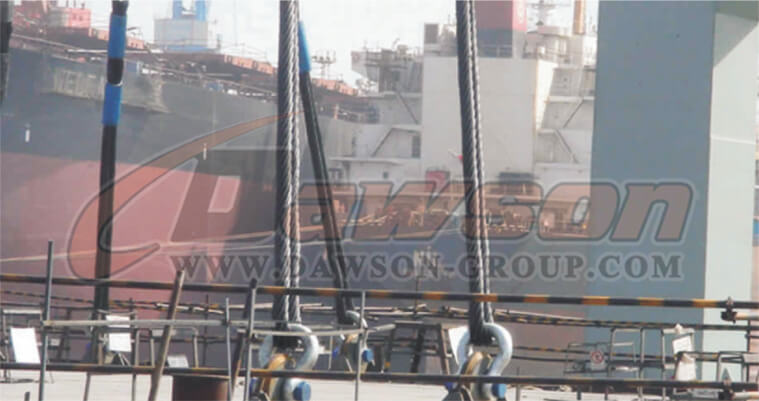

Application of Shackles:
Factory and packing Show:
