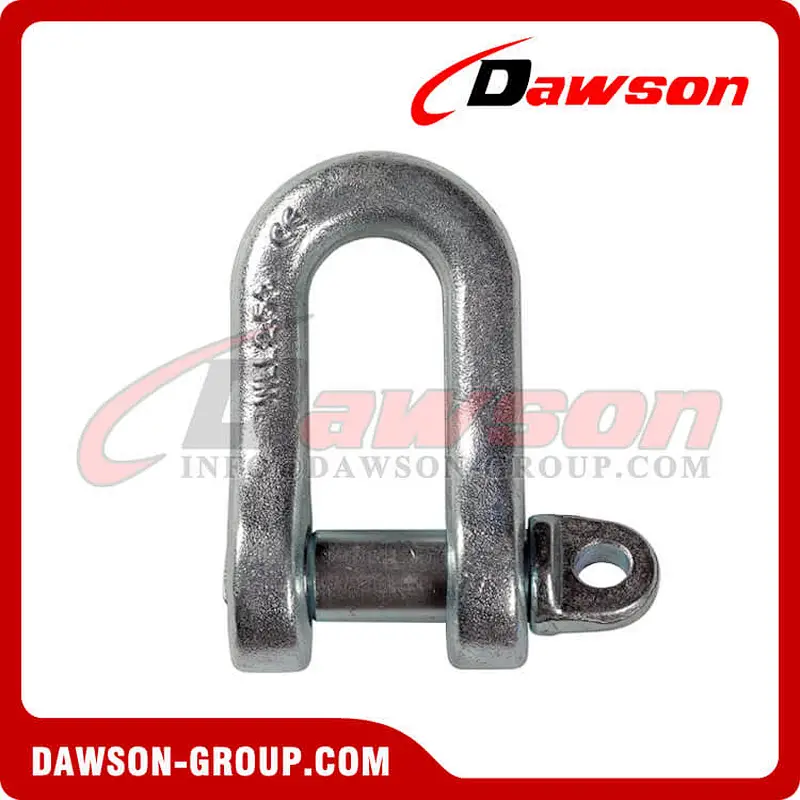

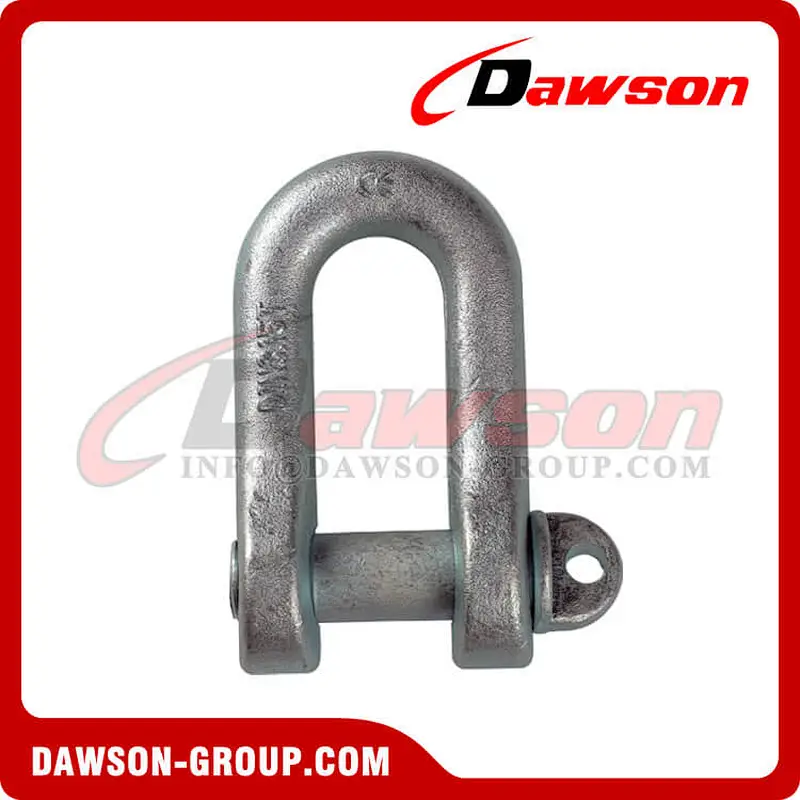

Galvanized shackle DIN 82101 Form A, Form B, Form C

Galvanized shackle DIN 82101 Form A, Form B, Form C

Model NO.: DS82101M

Quantity:

Product Description

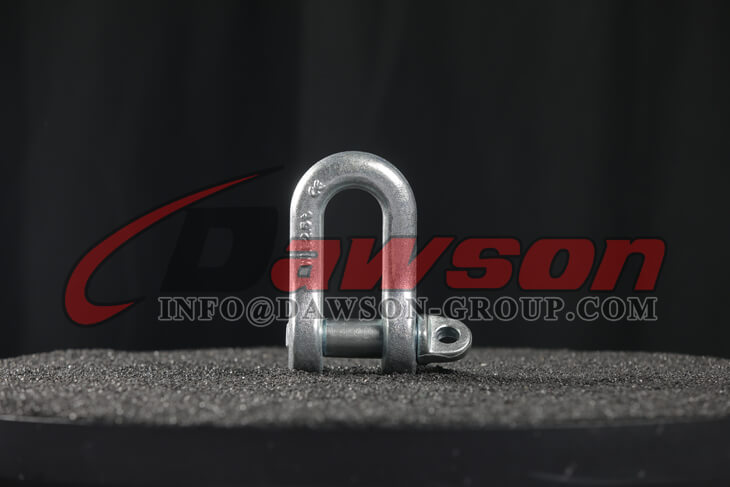

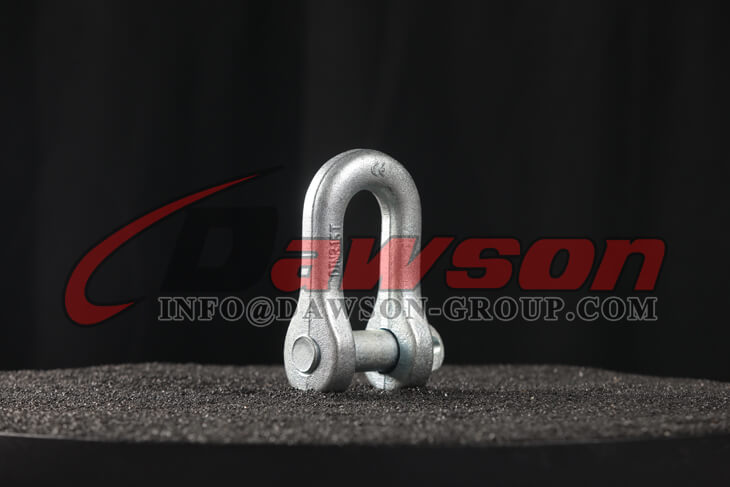

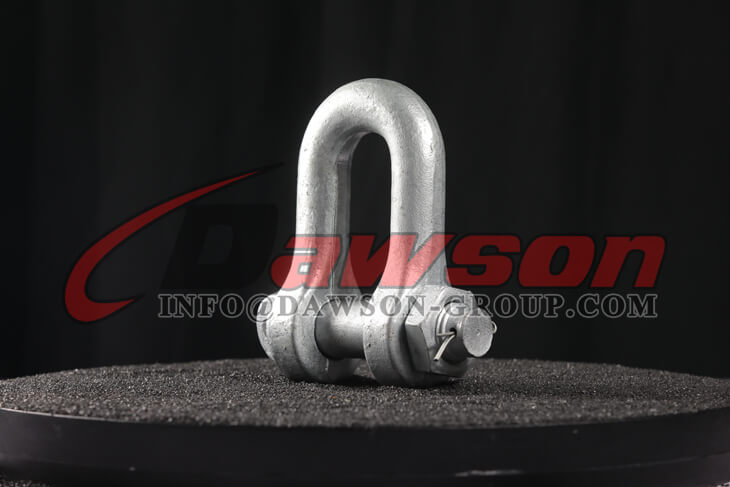

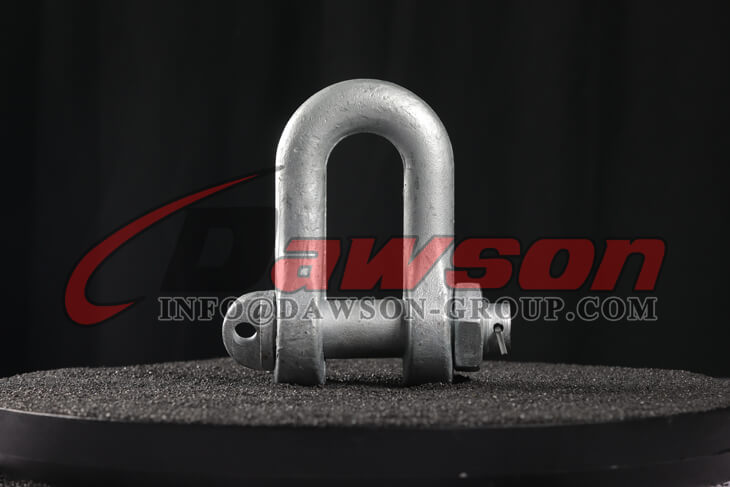

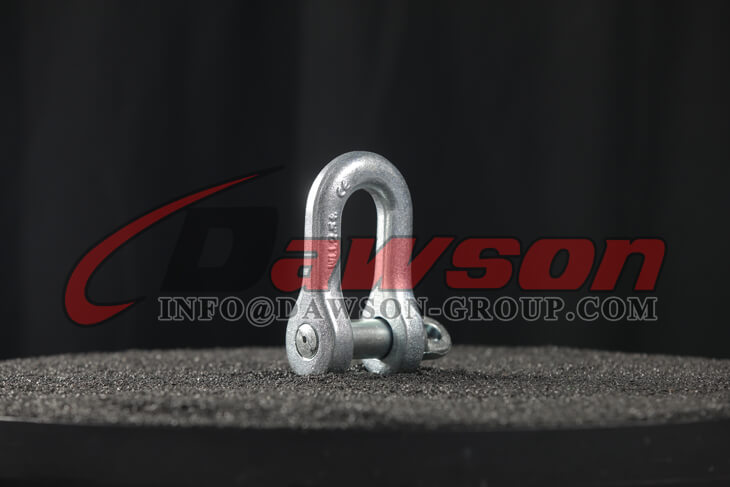

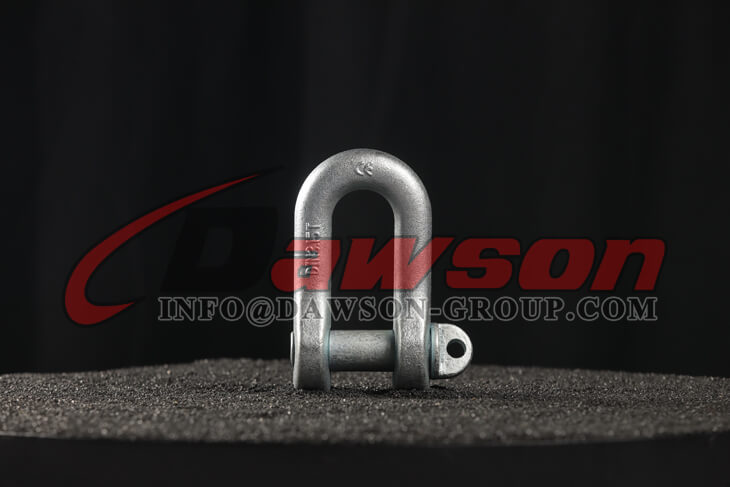

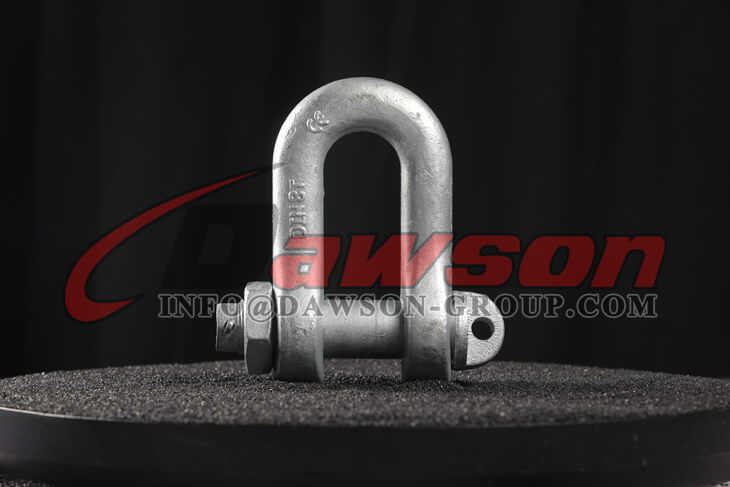

Galvanized Shackle DIN 82101 Form A, Form B, Form C, Hot Dip Galvanized Shackle, Electric Galvanized Chain Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

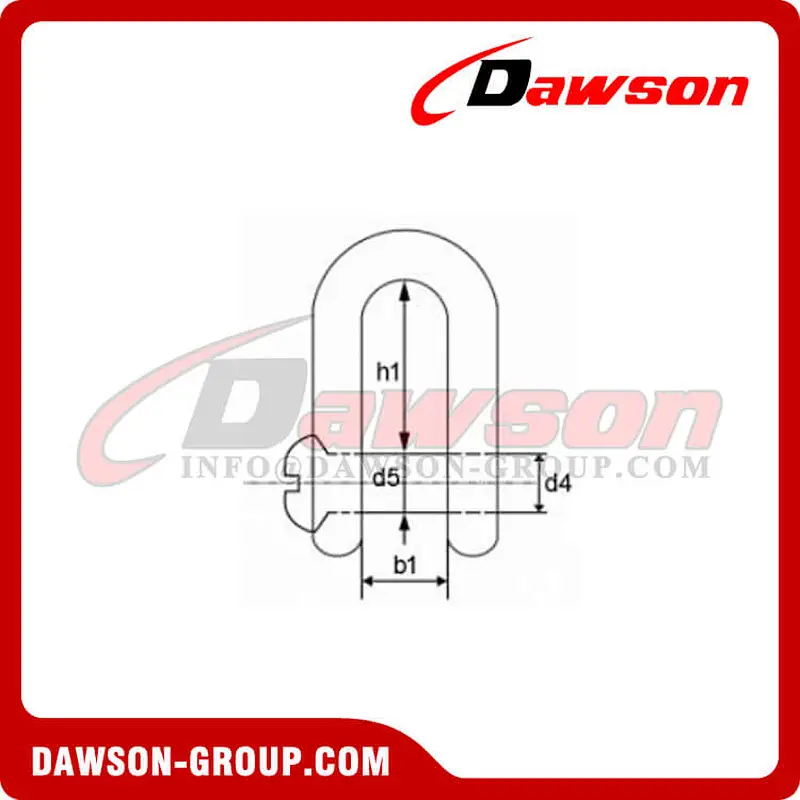

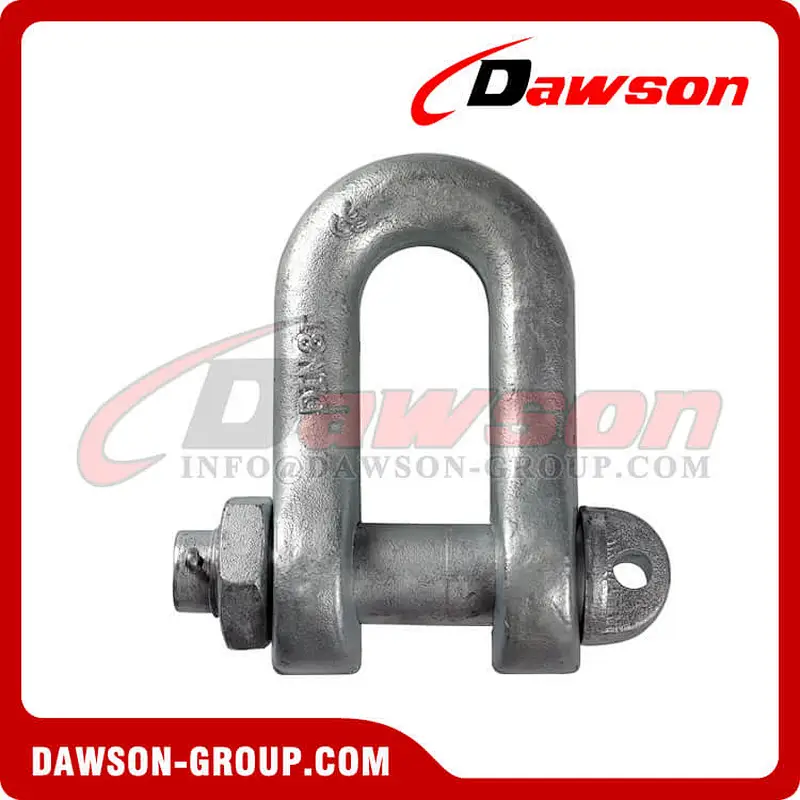

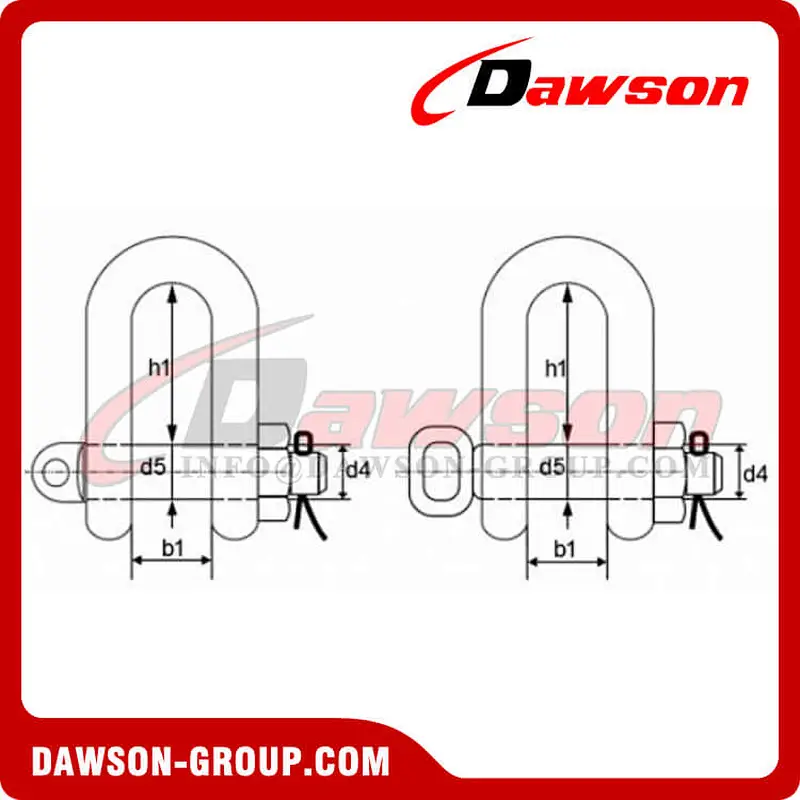

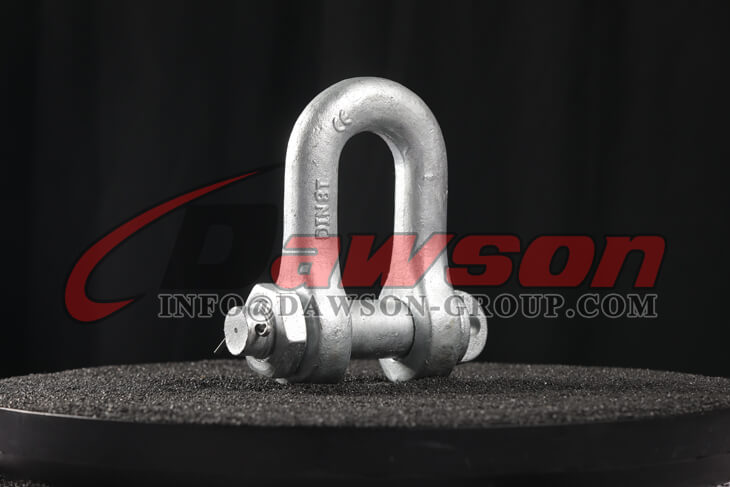

The shackles are manufactured to a standard similar to DIN 82101. Available in: shackle DIN 82101 Type A with collar pin; shackle DIN 82101Type B with slotted bolt; and shackle DIN 82101 Type C with safety bolt, nut and cotter pin.

Feature:

Material: High tensile steel

Safety factor: 5-time

Application range: As load handling device for lifting or static systems

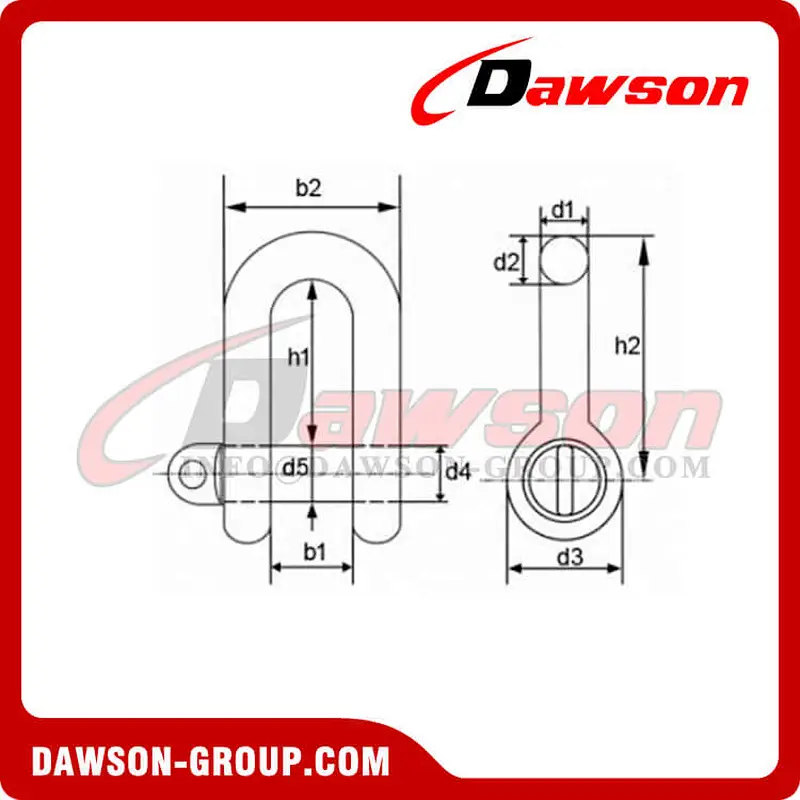

Galvanized shackle DIN 82101 Form A, Form B, Form C—–Specification

Part No.	Size			SWL	b1	b2	d1	d2	d3	d4	d5	h1	h2	weight per 100 pieces（g）
	Type			SWL	b1	b2	d1	d2	d3	d4	d5	h1	h2	type
	a	b	c	*（kn ）**	mm	mm	mm	mm	mm		mm	mm	mm	a	b	c
DS82101M4	0,06	—	—	0,6	6	13	3,5	4	8	m 4	4	12	18	0,007	—	—
DS82101M5	0,1	—	—	1	7	15	4	5	10	m 5	5	15,5	23	0,013	—	—
DS82101M6	0,16	—	—	1,6	8	18	5	6	12	m 6	6	18	27	0,024	—	—
DS82101M8	0,25	—	—	2,5	11	25	7	8	16	m 8	8	24	36	0,045	—	—
DS82101M10	0,4	1	—	4	14	30	8	10	20	m 10	10	30	45	0,090	0,085	—
DS82101M12	0,6	1,6	—	6,3	17	37	10	12	24	m 12	12	36	54	0,17	0,16	—
DS82101M16	1	1	1	10	21	47	13	15	32	m 16	16	49	72	0,36	0,35	0,40
DS82101M20	1,6	1,6	1,6	16	27	61	17	19	40	m 20	20	61	90	0,75	0,73	0,81
DS82101M22	2	2	2	20	30	68	19	21	44	m 22	22	67	99	1,00	0,97	1,08
DS82101M24	2,5	2,5	2,5	25	33	75	21	23	48	m 24	24	73	108	1,32	1,28	1,42
DS82101M27	3	3	3	31,5	38	86	24	26	54	m 27	27	83,5	123	1,8	1,7	2,03
DS82101M30	4	4	4	40	42	96	27	29	60	m 30	30	91	135	2,4	2,3	2,7
DS82101M36	5	5	5	50	47	107	30	33	72	m 36	36	111	162	3,9	3,7	4,4
DS82101M39	6	6	6	63	53	121	34	37	78	m 39	39	119,5	176	5,3	5,1	5,9
DS82101M45	8	8	8	80	60	136	38	41	90	m 45	45	139,5	203	7,9	7,6	8,5
DS82101M48	10	10	10	100	66	150	42	45	96	m 48	48	147	216	10	9,7	10,8
DS82101M52	12	12	12	125	73	167	47	50	104	m 52	52	158	234	13	12,9	14
DS82101M60	16	16	16	160	81	185	52	55	120	m 60	60	185	270	18,5	18,1	19,3
DS82101M68	20	20	20	200	90	206	58	61	136	m 68	68	211	306	27,2	26,8	28,2
DS82101M72X6	—	—	25	250	100	226	63	67	144	m 72×6	72	221	324	—	—	35,5
DS82101M80X6	—	—	32	315	110	250	70	74	160	m 80×6	80	246	360	—	—	49,5
DS82101M90X6	—	—	40	400	125	283	79	84	180	m 90×6	90	276	405	—	—	69
DS82101M100X6	—	—	50	500	140	316	88	93	200	m 100×6	100	307	450	—	—	93
DS82101M110X6	—	—	63	630	155	347	96	101	220	m 110×6	110	339	459	—	—	125
DS82101M125X6	—	—	80	800	175	395	110	115	250	m 125×6	125	385,5	563	—	—	180
DS82101M140X6	—	—	100	1	200	450	125	130	280	m 140×6	140	430	630	—	—	260
