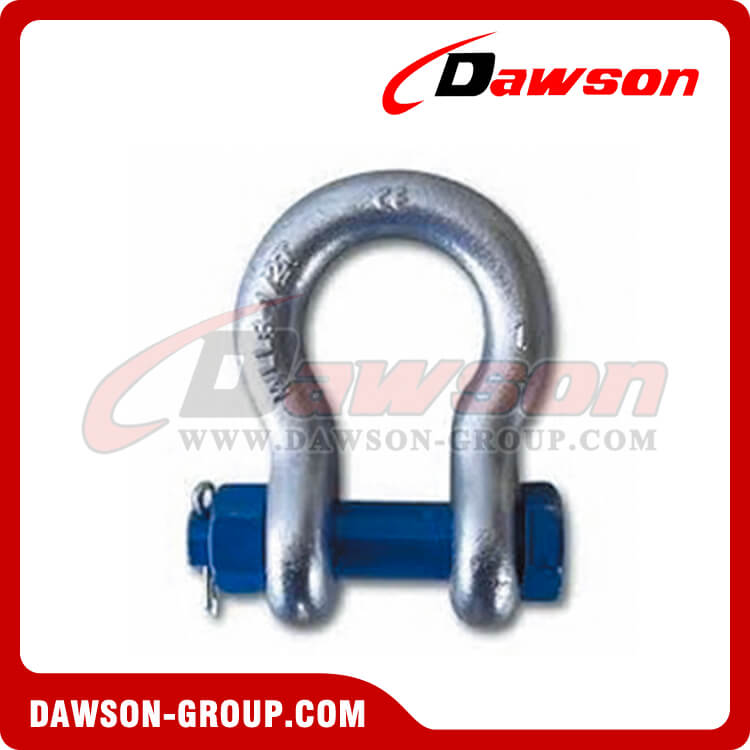

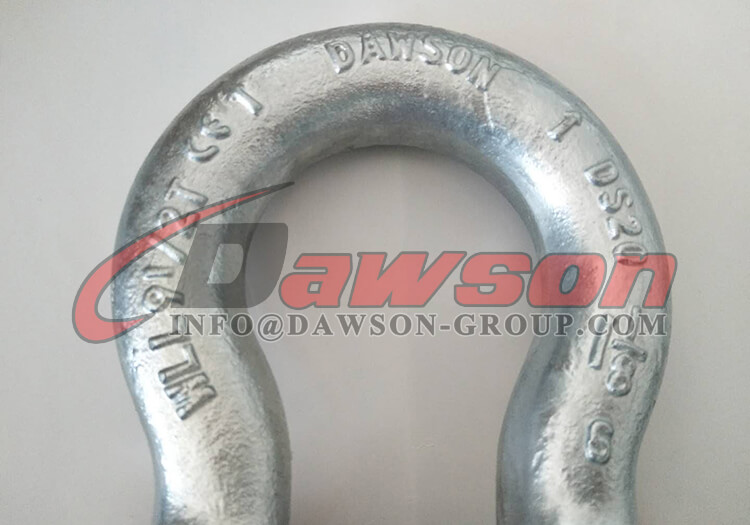

US Type Bolt Type Anchor Shackle, Bow Shackle with Safety Pin and Nut, S6 Bolt Type Bow Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

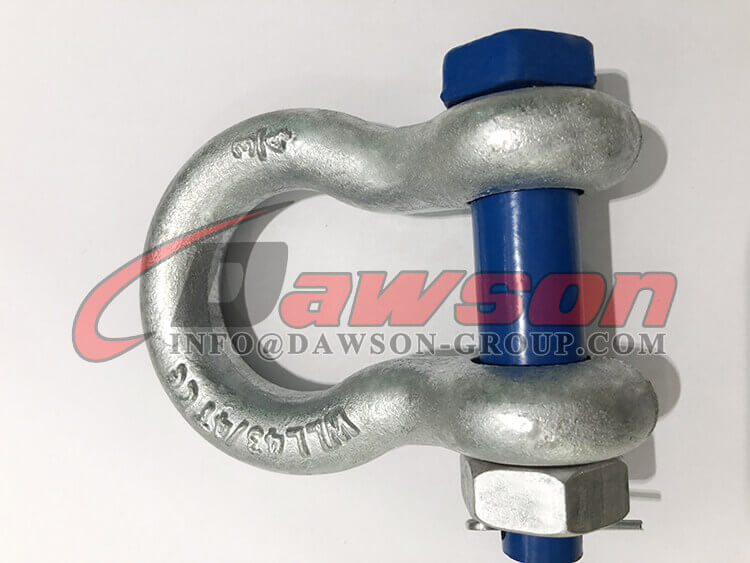

Anchor Shackle Bolt Type Forged Alloy to US Federal Specification, EN 13889:2003+A1:2008
High tensile strength D2130 S2130
Shackles are supplied in hot dip galvanized finish or self colored.
Working Load Limit permanently shown on every shackle. Capacities 1/3 thru 150 metrics tons.
Forged - Quenched and Tempered.
Capacities 1/3 thru 150 metric tons.

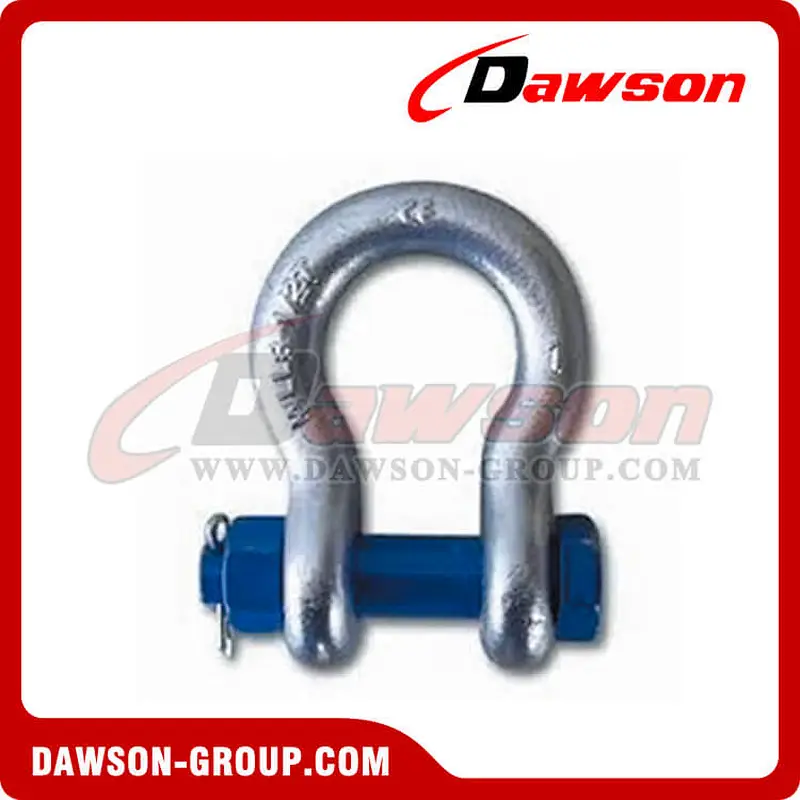

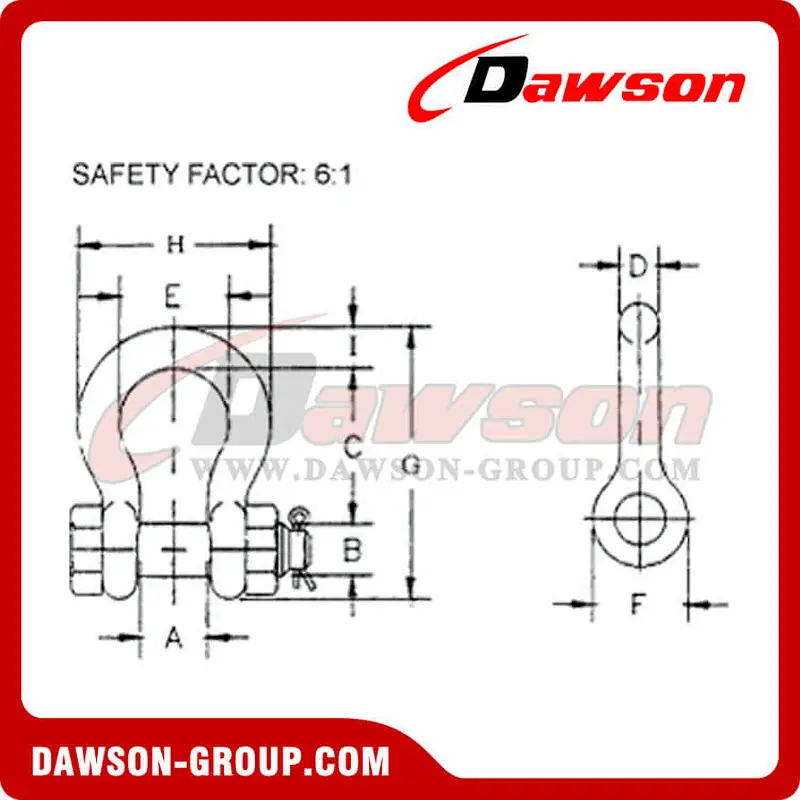

| ITEM NO | Nominal Size | Working Load Limit | Dimensions(mm) | Weight Each | ||||||||
| (in.) | (tons) | A | B | C | D | E | F | G | H | I | (kg) | |
| DS-BAS0632 | 3/16 | 1/3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 37.2 | 24.9 | 4.85 | 0.03 |
| DS-BAS0832 | 1/4 | 1/2 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 46.7 | 32.5 | 6.35 | 0.05 |
| DS-BAS1032 | 5/16 | 3/4 | 13.5 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 53.0 | 37.3 | 7.85 | 0.10 |
| DS-BAS1232 | 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 63.0 | 45.2 | 9.65 | 0.15 |
| DS-BAS1432 | 7/16 | 1-1/2 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 74.0 | 51.5 | 11.2 | 0.22 |
| DS-BAS1632 | 1/2 | 2 | 20.6 | 16.0 | 47.8 | 12.7 | 33.3 | 30.2 | 83.5 | 58.5 | 12.7 | 0.36 |
| DS-BAS2032 | 5/8 | 3-1/4 | 26.9 | 19.1 | 60.5 | 16.0 | 42.9 | 38.1 | 106 | 74.5 | 17.5 | 0.76 |
| DS-BAS2432 | 3/4 | 4-3/4 | 31.8 | 22.4 | 71.5 | 19.1 | 51.0 | 46.0 | 126 | 89.0 | 20.6 | 1.23 |
| DS-BAS2832 | 7/8 | 6-1/2 | 36.6 | 25.4 | 84.0 | 22.4 | 58.0 | 53.0 | 148 | 102 | 24.6 | 1.79 |
| DS-BAS3232 | 1 | 8-1/2 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 167 | 119 | 26.9 | 2.57 |
| DS-BAS3632 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 108 | 28.7 | 74.0 | 68.5 | 190 | 131 | 31.8 | 3.75 |
| DS-BAS4032 | 1-1/4 | 12 | 51.5 | 35.1 | 119 | 31.8 | 82.5 | 76.0 | 210 | 146 | 35.1 | 5.31 |
| DS-BAS4432 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 133 | 35.1 | 92.0 | 84.0 | 233 | 162 | 38.1 | 7.18 |
| DS-BAS4832 | 1-1/2 | 17 | 60.5 | 41.4 | 146 | 38.1 | 98.5 | 92.0 | 254 | 175 | 41.1 | 9.43 |
| DS-BAS5632 | 1-3/4 | 25 | 73.0 | 51.0 | 178 | 44.5 | 127 | 106 | 313 | 225 | 57.0 | 15.4 |
| DS-BAS6432 | 2 | 35 | 82.5 | 57.0 | 197 | 51.0 | 146 | 122 | 348 | 253 | 61.0 | 23.7 |
| DS-BAS8032 | 2-1/2 | 55 | 105 | 70.0 | 267 | 66.5 | 184 | 145 | 453 | 327 | 79.5 | 44.6 |
| DS-BAS9632 | 3 | 85 | 127 | 82.5 | 330 | 76.0 | 200 | 165 | 546 | 365 | 92.0 | 70 |
| DS-BAS11232 | 3-1/2 | 120 | 133 | 95.5 | 372 | 92.0 | 229 | 203 | 626 | 419 | 105 | 120 |
| DS-BAS12832 | 4 | 150 | 140 | 108 | 368 | 104 | 254 | 229 | 653 | 468 | 116 | 153 |
Bolt Type Anchor Shackle with thin head bolt - nut with cotter pin. Meets the performance requirements of Federal Specification RR-C-271D Type IVA, EN 13889:2003+A1:2008, Grade A, Class 3, except for those provisions required of the contractor.
*Maximum Proof Load is 2.0 times the Working Load Limit.
*Minimum Ultimate Strength is 6 times the Working Load Limit.
*Individually Proof Tested with Certification.
*Furnished in Anchor Style only. Furnished with Round Head Bolts with welded handles
Application: High tensile forged shackle mainly using for lifting purpose or connecting parts being the lifting point and other lifting equipment.
The bow shackle is common produce used in the offshore industry,this shackle can be used in temporary and permanent in the mooring system, finish is hot dip galvanized.
Products Show:

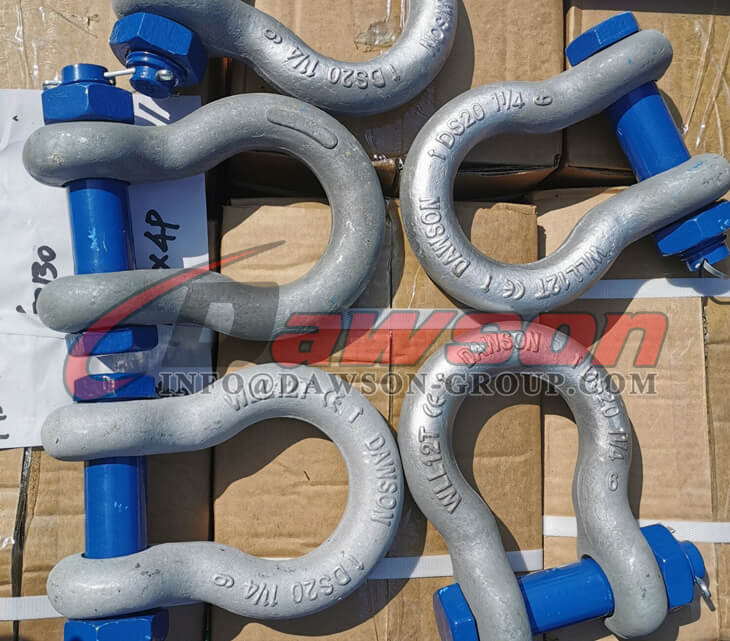

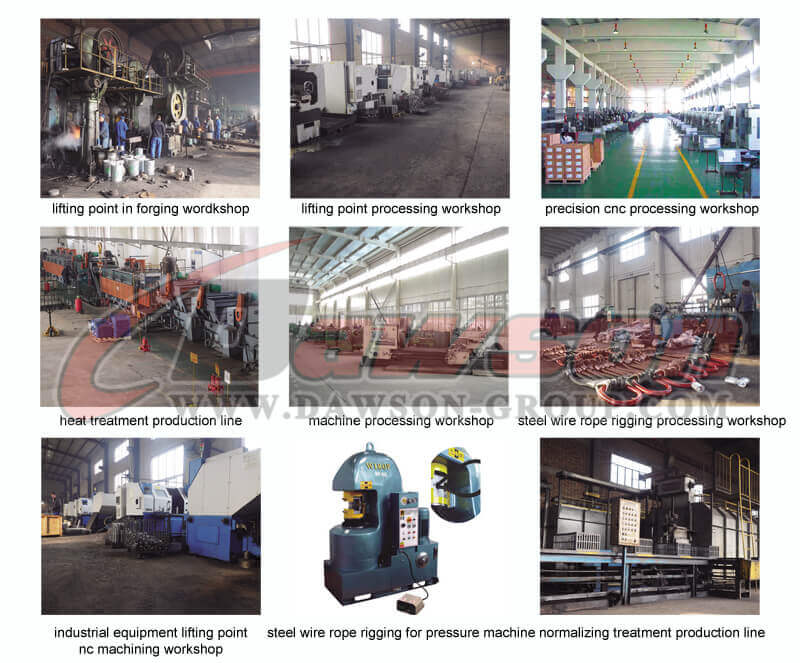

Production Equipment:

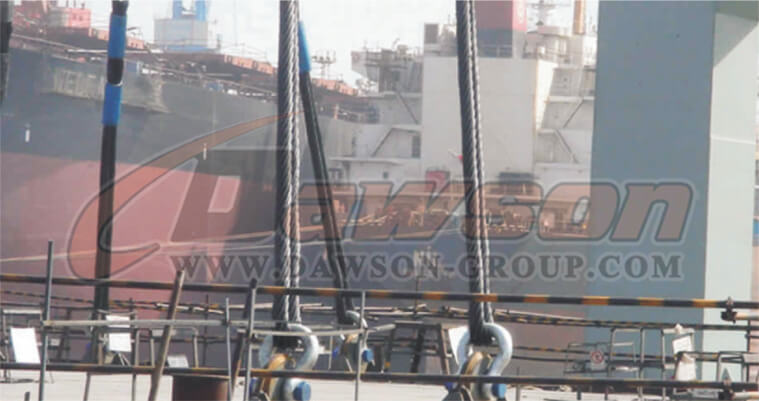

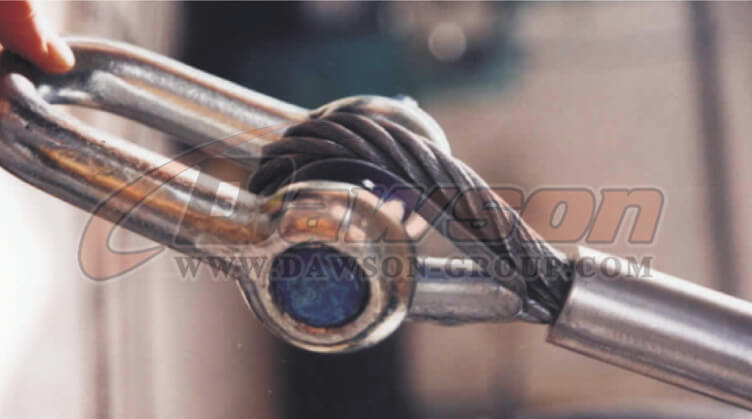

Application of Shackles:
