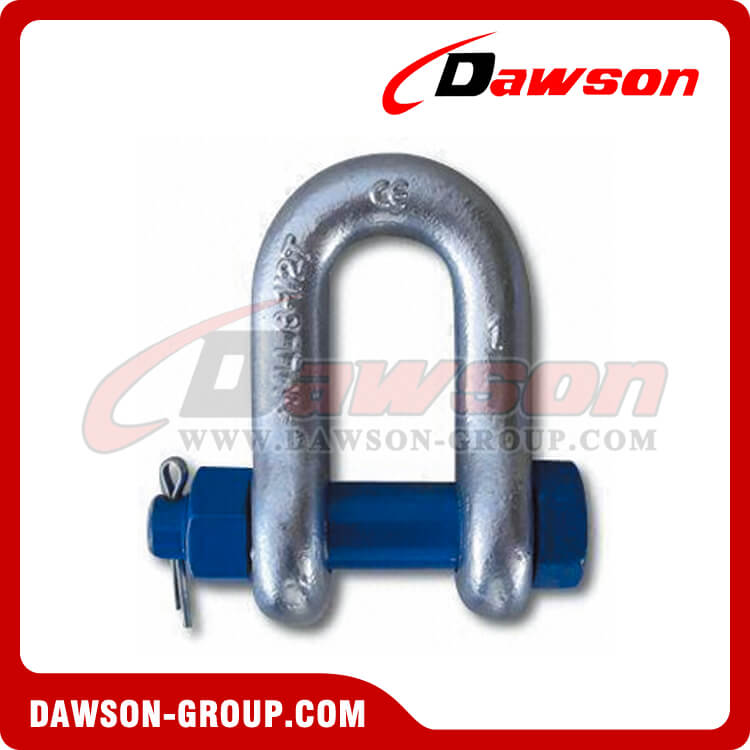

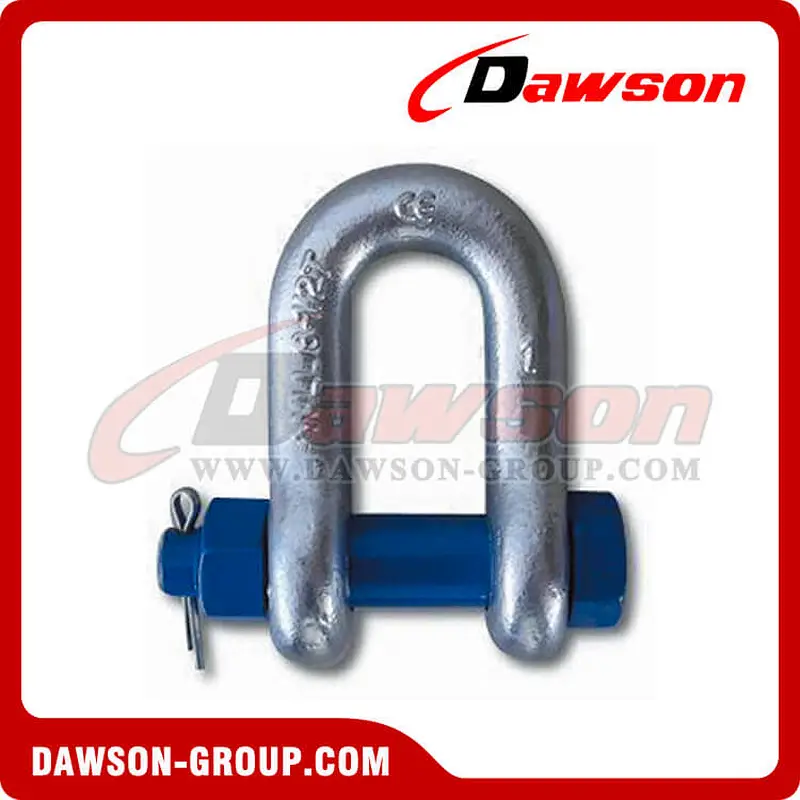

US Type Forged Alloy High Tensile Bolt Type Chain Shackle, Lifting Mraine Dee Shackle with Safety Pin and Nut
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Chain Shackle Bolt Type Forge Alloy High Tensile US Federal Specification, EN 13889:2003+A1:2008, D2150 S2150.
Shackles are supplied in hot dip galvanized finish or self colored.
Working Load Limit permanently shown on every shackle. Capacities 1/3 thru 150 metrics tons.
Forged - Quenched and Tempered.
Capacities 1/3 thru 85 metric tons.

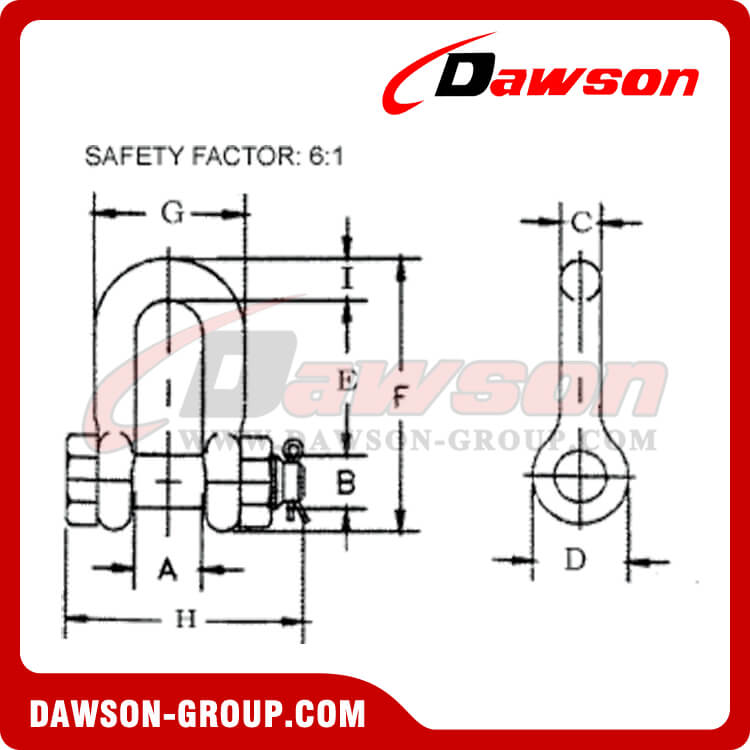

| ITEM NO | Nominal Size | Working Load Limit | Dimensions(mm) | Weight Each | ||||||||
| (in.) | (tons) | A | B | C | D | E | F | G | H | I | (kg) | |
| DS-BCS0832 | 1/4 | 1/2 | 11.9 | 7.85 | 6.35 | 15.5 | 19.1 | 40.4 | 24.6 | 39.6 | 6.35 | 0.06 |
| DS-BCS1032 | 5/16 | 3/4 | 13.5 | 9.65 | 7.85 | 19.1 | 25.4 | 48.5 | 29.5 | 46.2 | 7.85 | 0.10 |
| DS-BCS1232 | 3/8 | 1 | 16.8 | 11.2 | 9.65 | 23.1 | 31.0 | 58.5 | 35.8 | 55.0 | 9.65 | 0.15 |
| DS-BCS1432 | 7/16 | 1-1/2 | 19.1 | 12.7 | 11.2 | 26.9 | 36.1 | 67.5 | 41.1 | 63.5 | 11.2 | 0.22 |
| DS-BCS1632 | 1/2 | 2 | 20.6 | 16.0 | 12.7 | 30.2 | 41.4 | 77.0 | 46.0 | 71.0 | 12.7 | 0.34 |
| DS-BCS2032 | 5/8 | 3-1/4 | 26.9 | 19.1 | 16.0 | 38.1 | 51.0 | 95.5 | 58.5 | 89.5 | 16.0 | 0.67 |
| DS-BCS2432 | 3/4 | 4-3/4 | 31.8 | 22.4 | 19.1 | 46.0 | 60.5 | 115 | 70.0 | 103 | 20.6 | 1.14 |
| DS-BCS2832 | 7/8 | 6-1/2 | 36.6 | 25.4 | 22.4 | 53.0 | 71.5 | 135 | 81.0 | 120 | 24.6 | 1.74 |
| DS-BCS3232 | 1 | 8-1/2 | 42.9 | 28.7 | 25.4 | 60.5 | 81.0 | 151 | 93.5 | 135 | 25.4 | 2.52 |
| DS-BCS3632 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 28.7 | 68.5 | 91.0 | 172 | 103 | 150 | 31.8 | 3.45 |
| DS-BCS4032 | 1-1/4 | 12 | 51.5 | 35.1 | 31.8 | 76.0 | 100 | 191 | 115 | 165 | 35.1 | 4.90 |
| DS-BCS4432 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 35.1 | 84.0 | 111 | 210 | 127 | 183 | 38.1 | 6.24 |
| DS-BCS4832 | 1-1/2 | 17 | 60.5 | 41.4 | 38.1 | 92.0 | 122 | 230 | 137 | 196 | 41.1 | 8.39 |
| DS-BCS5632 | 1-3/4 | 25 | 73.0 | 51.0 | 44.5 | 106 | 146 | 279 | 162 | 230 | 54.0 | 14.2 |
| DS-BCS6432 | 2 | 35 | 82.5 | 57.0 | 51.0 | 122 | 172 | 312 | 184 | 264 | 51.0 | 21.2 |
| DS-BCS8032 | 2-1/2 | 55 | 105 | 70.0 | 66.5 | 145 | 203 | 377 | 238 | 344 | 66.5 | 38.6 |
| DS-BCS9632 | 3 | 85 | 127 | 82.5 | 76.0 | 165 | 216 | 429 | 279 | 419 | 89.0 | 56 |
Application: Forged high tensile Dee shackle mainly using for lifting purpose of lashing or fishing, the bolt type using for that place with a long time fixed.
Welcome to buy the newest and competitive price DAWSON US Type Forged Alloy High Tensile Bolt Type Chain Shackle with Safety Pin and Nut from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: low price chain shackle, high quality bolt type chain shackle, wholesale chain shackle with safety pin, buy discount chain shackle with nut, hot sale bolt type shackle with safety pin, customized high tensile chain shackle, cheap price commercial type chain shackle, forged alloy d shackle China supplier, high tensile shackle China manufacturer, hot galvanizing shackle China factory, shackle with safety pin China exporter, bulk dee shackle, chain shackle in stock, bolt type chain shackle free sample, fixed nut shackle dawson brands, commercial type shackle OEM
Other Related Products:

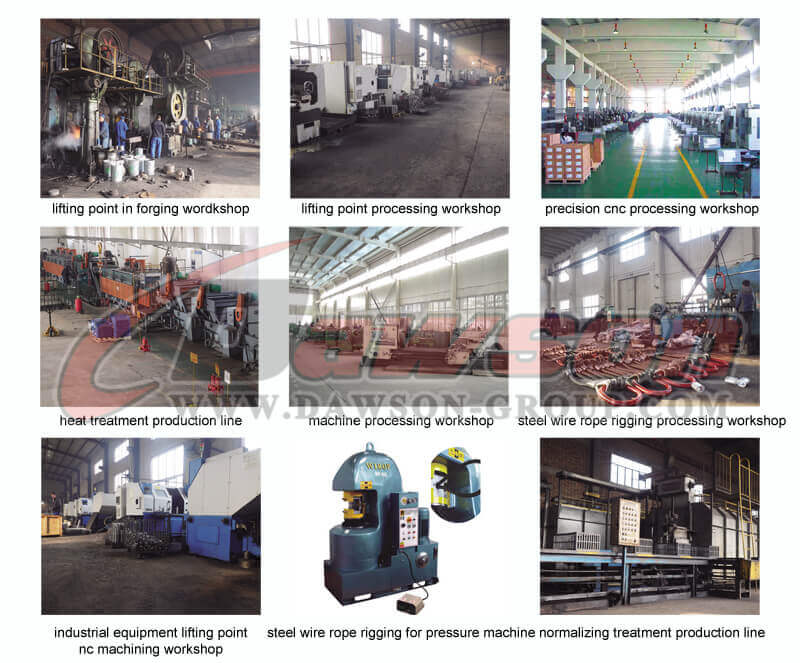

Production Equipment:

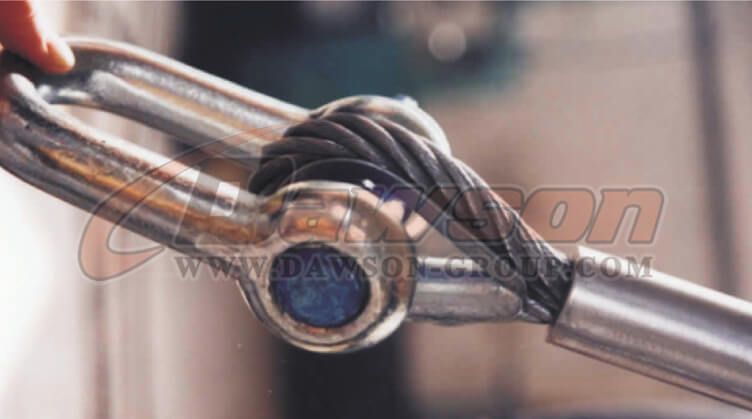

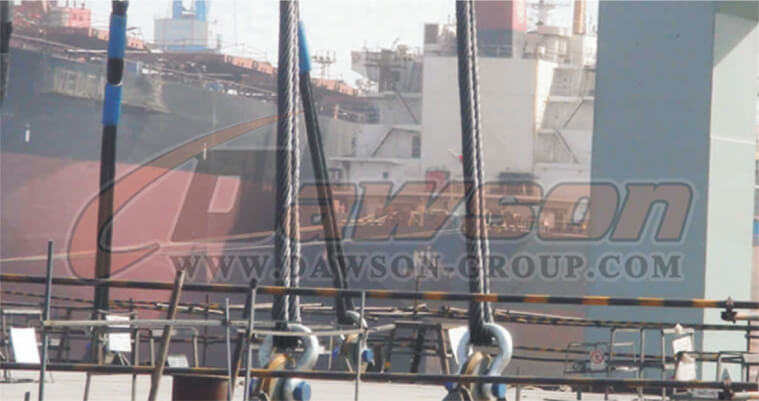

Application of Shackles:

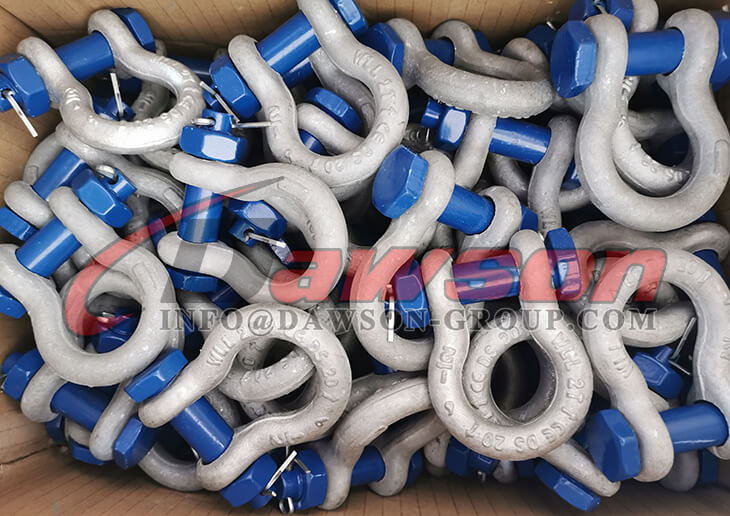

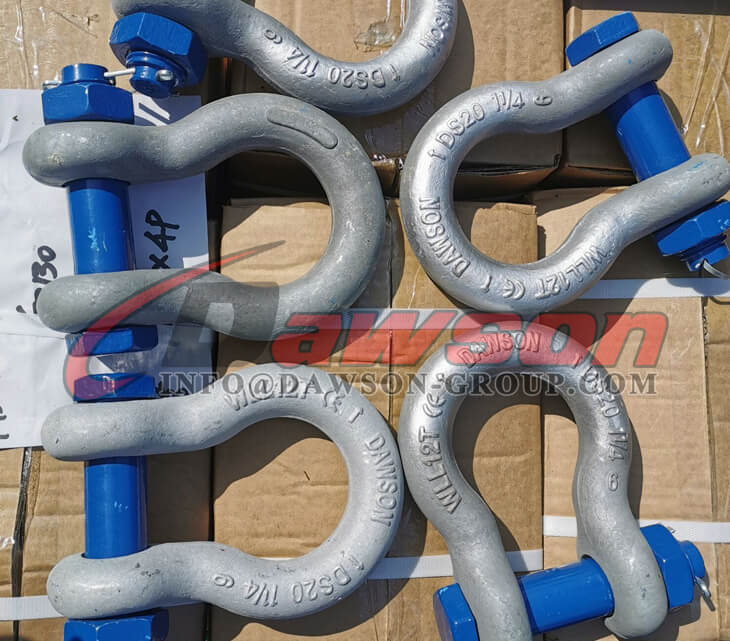

Factory and packing Show:
