US Type Forged Alloy Screw Pin Anchor Shackle,High Strength S6 Bow Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

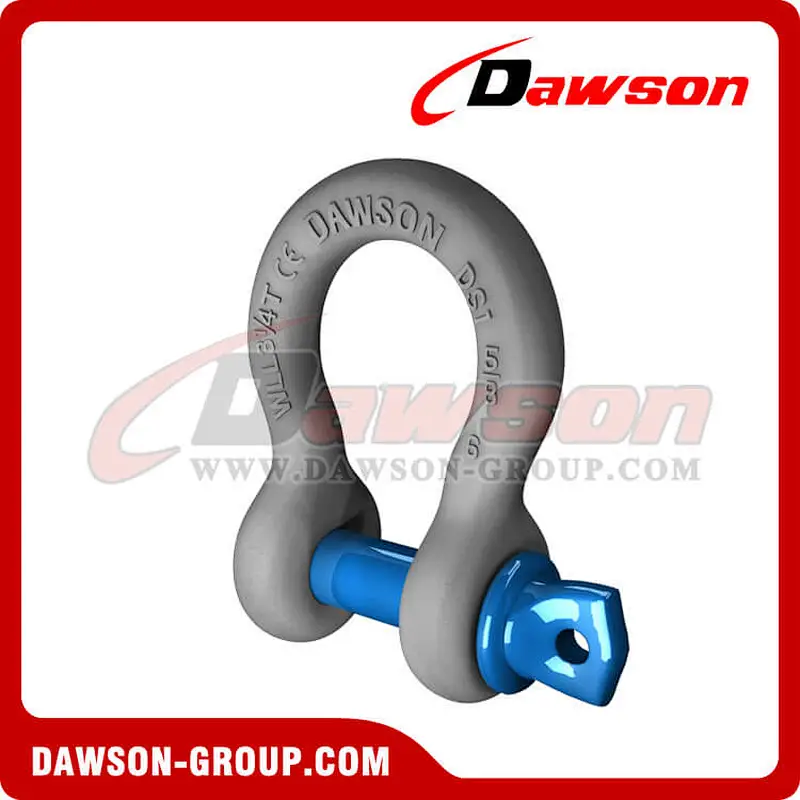

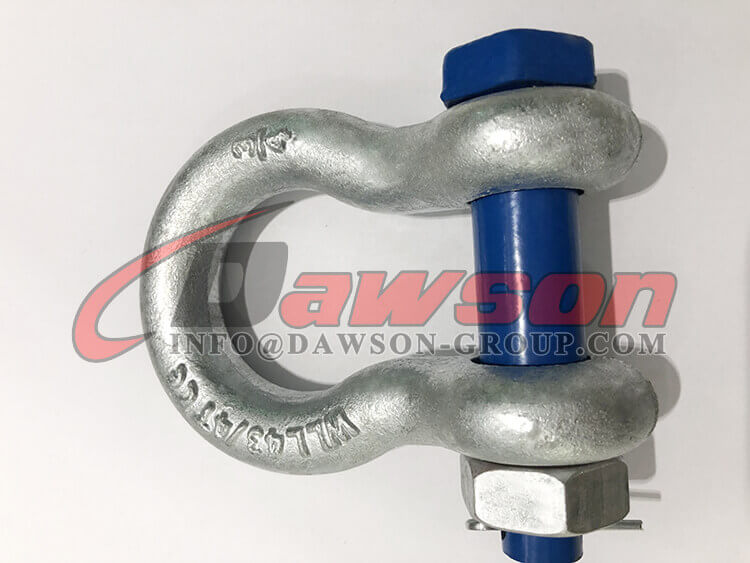

Anchor Shackles, Screw Collar Pin, Forged Alloy Steel, High Tensile Strength, Meet to US Federal Specification.
Finish: Anchor Shackles are supplied in hot dip galvanized finish or self colored.
Working Load Limit: permanently shown on every Anchor shackle.
Shackle Material: High tensile steel Forged - Quenched and Tempered.
Shackle Size: Capacities 1/3 thru 120 metric tons. 85ton and 120ton shackle are available.
Fatigue rated

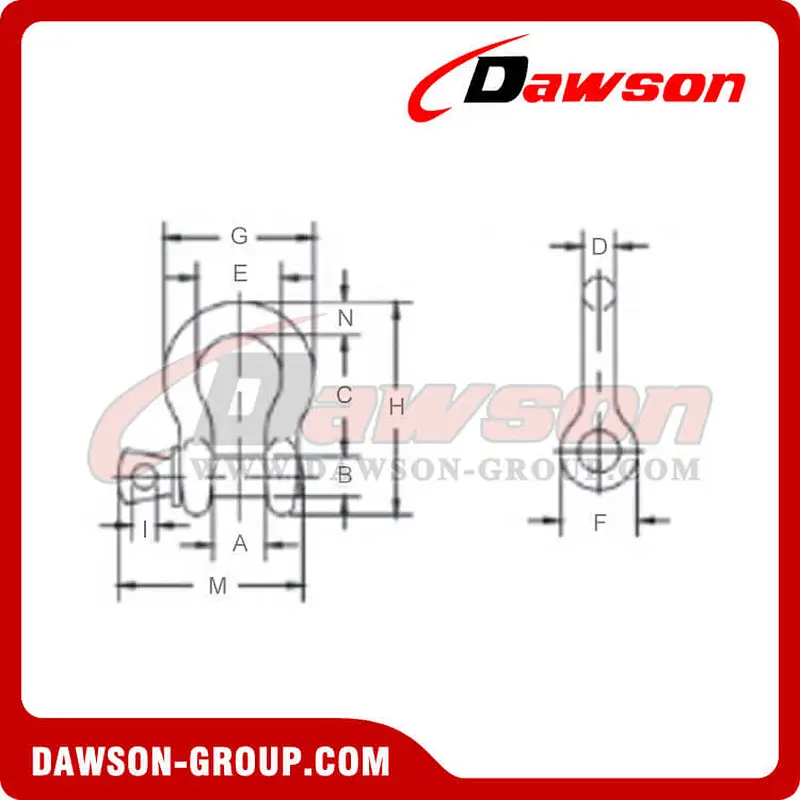

| ITEM NO | Nominal Size | Working Load Limit | Dimensions (mm) | Weight each | ||||||||||
| (in.) | (tons) | A | B | C | D | E | F | G | H | I | M | N | (kg) | |
| DS-AS0632 | 3/16 | 1/3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 24.9 | 37.3 | 4.06 | 28.4 | 4.85 | 0.03 |
| DS-AS0832 | 1/4 | 1/2 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 | 0.05 |
| DS-AS1032 | 5/16 | 3/4 | 13.5 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 37.3 | 53.0 | 5.60 | 42.2 | 7.85 | 0.09 |
| DS-AS1232 | 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63.0 | 6.35 | 51.5 | 9.65 | 0.14 |
| DS-AS1432 | 7/16 | 1-1/2 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.5 | 74.0 | 7.85 | 60.5 | 11.2 | 0.17 |
| DS-AS1632 | 1/2 | 2 | 20.6 | 16.0 | 47.8 | 12.7 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.7 | 0.33 |
| DS-AS2032 | 5/8 | 3-1/4 | 26.9 | 19.1 | 60.5 | 16.0 | 42.9 | 38.1 | 74.5 | 106 | 11.2 | 85.0 | 17.5 | 0.62 |
| DS-AS2432 | 3/4 | 4-3/4 | 31.8 | 22.4 | 71.5 | 19.1 | 51.0 | 46.0 | 89.0 | 126 | 12.7 | 101 | 20.6 | 1.07 |
| DS-AS2832 | 7/8 | 6-1/2 | 36.6 | 25.4 | 84.0 | 22.4 | 58.0 | 53.0 | 102 | 148 | 12.7 | 114 | 24.6 | 1.64 |
| DS-AS3232 | 1 | 8-1/2 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 119 | 167 | 14.2 | 129 | 26.9 | 2.28 |
| DS-AS3632 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 108 | 29.5 | 74.0 | 68.5 | 131 | 190 | 16.0 | 142 | 31.8 | 3.36 |
| DS-AS4032 | 1-1/4 | 12 | 51.5 | 35.1 | 119 | 32.8 | 92.5 | 76.0 | 146 | 210 | 17.5 | 156 | 35.1 | 4.31 |
| DS-AS4432 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 133 | 36.1 | 92.0 | 84.0 | 162 | 233 | 19.1 | 174 | 38.1 | 6.14 |
| DS-AS4832 | 1-1/2 | 17 | 60.5 | 41.4 | 146 | 39.1 | 98.5 | 92.0 | 175 | 254 | 20.6 | 187 | 41.1 | 7.80 |
| DS-AS5632 | 1-3/4 | 25 | 73.0 | 51.0 | 178 | 46.7 | 127 | 106 | 225 | 313 | 25.4 | 231 | 57.0 | 12.6 |
| DS-AS6432 | 2 | 35 | 82.5 | 57.0 | 197 | 53.0 | 146 | 122 | 253 | 348 | 31.0 | 263 | 61.0 | 20.4 |
| DS-AS8032 | 2-1/2 | 55 | 105 | 70.0 | 267 | 69.0 | 184 | 145 | 327 | 453 | 35.1 | 330 | 79.5 | 38.9 |
Welcome to buy the newest and competitive price DAWSON Forged Alloy Screw Pin Anchor Shackle from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271D Type IVA, EN 13889:2003+A1:2008, Grade A, Class 2, except for those provisions required of the contractor.
* Maximum Proof Load is 2.2 times the Working Load Limit.
* Minimum Ultimate Strength is 6 times the Working Load Limit.
Forged high tensile mainly using for lifting point connecting or fishing connecting or as the main recovery shackle for off-road. Others application is ok when commercial shackle using for light industry.

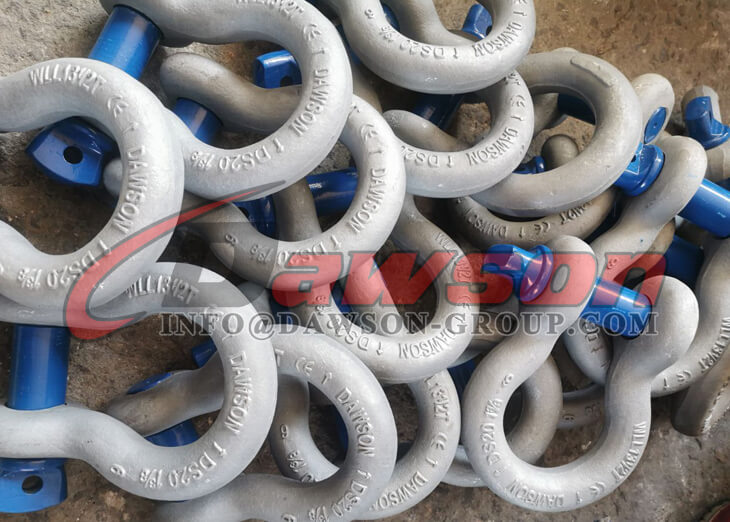

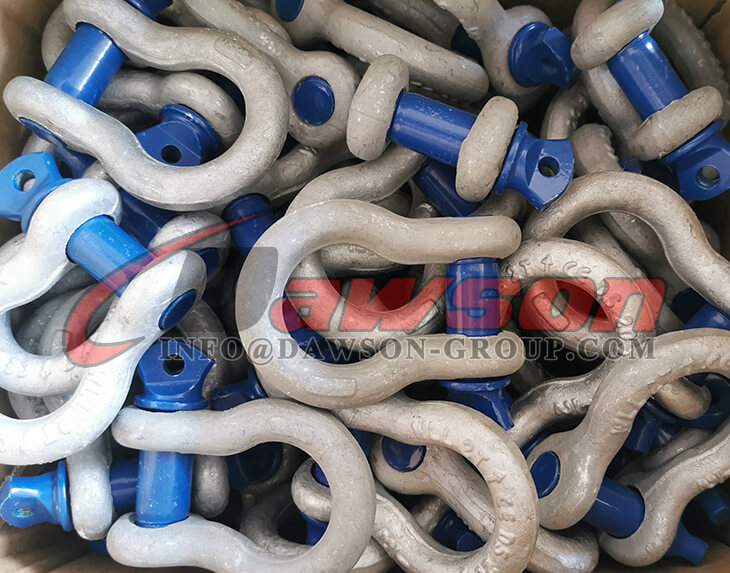

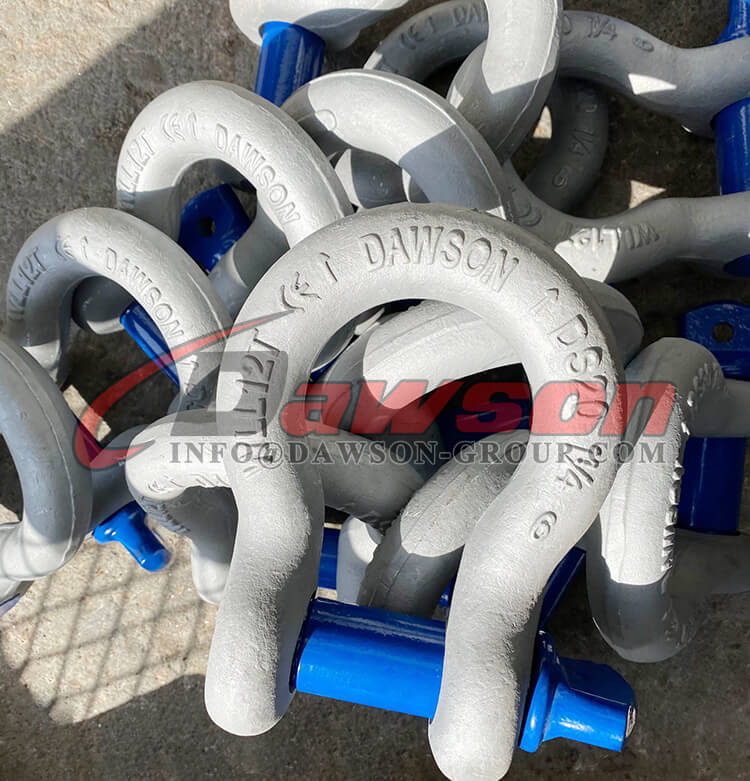

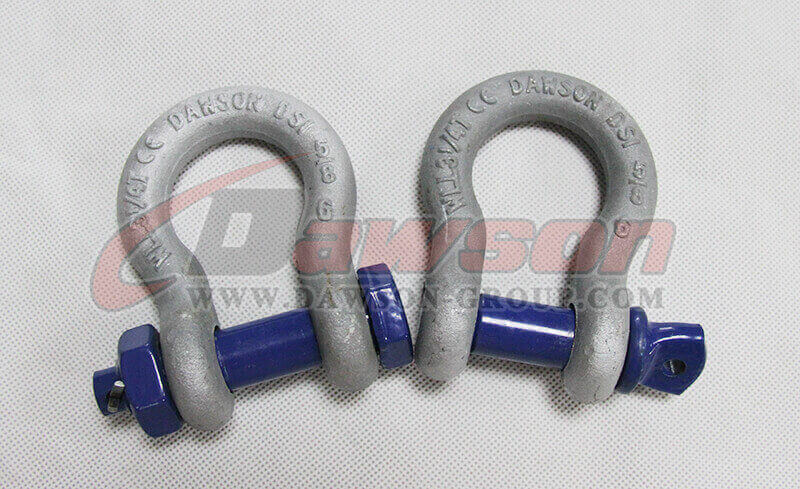

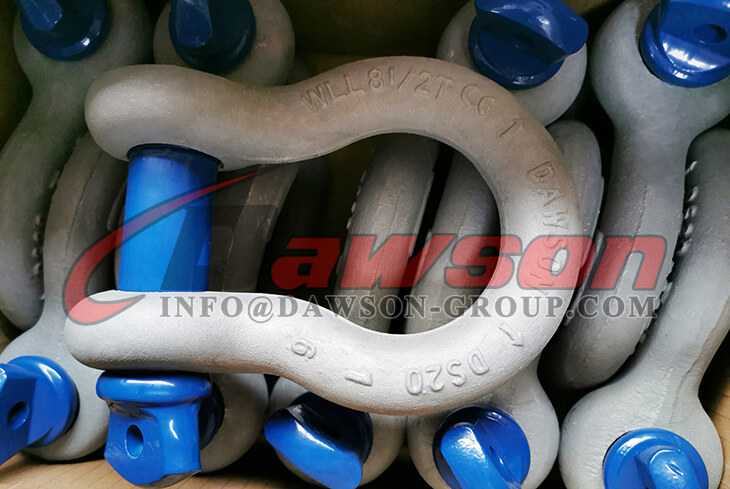

Products Show:
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk anchor shackle,low price s6 screw pin anchor shackle,high quality anchor shackle with screw pin,wholesale forged alloy s6 anchor shackle,hot sale buy discount alloy steel s6 anchor shackle,customized high tensile anchor shackle,cheap price commercial anchor shackle,bow shackle China supplier,drop forged bow shackle China manufacturer,fixed nut shackle dawson brands,screw pin anchor shackle China factory,forged alloy anchor shackle China exporter,screw pin anchor shackle in stock,forged alloy anchor shackle free sample,screw pin anchor shackle OEM

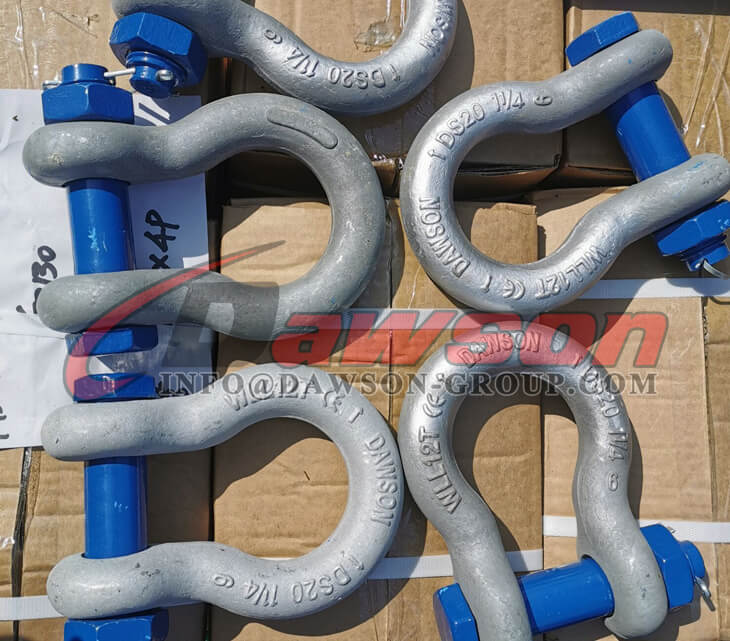

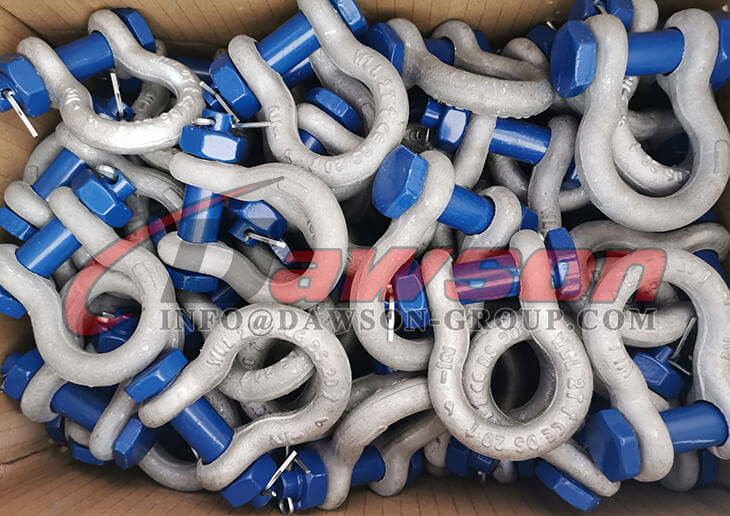

Other Related Products:

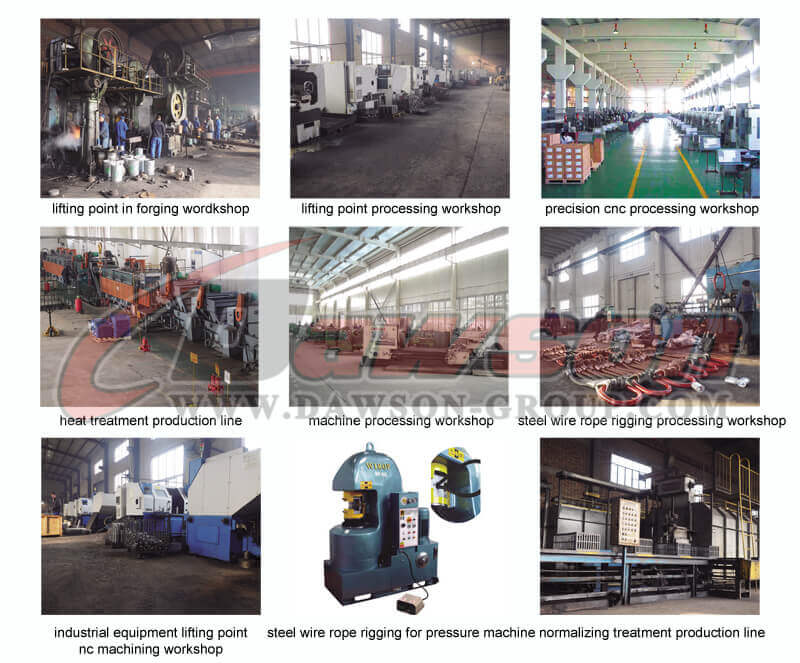

Production Equipment:

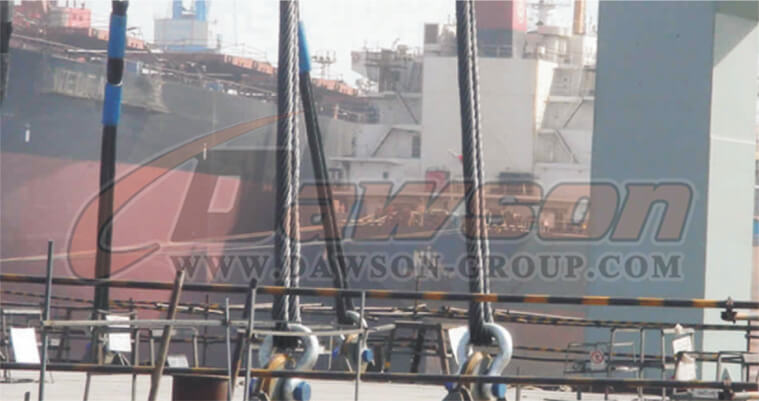

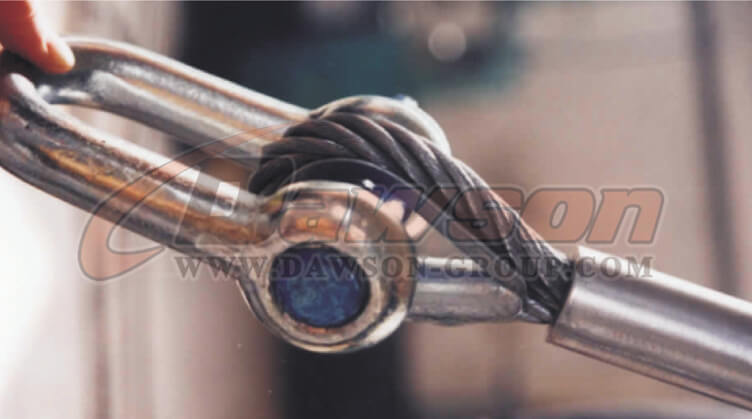

Application of Shackles:
