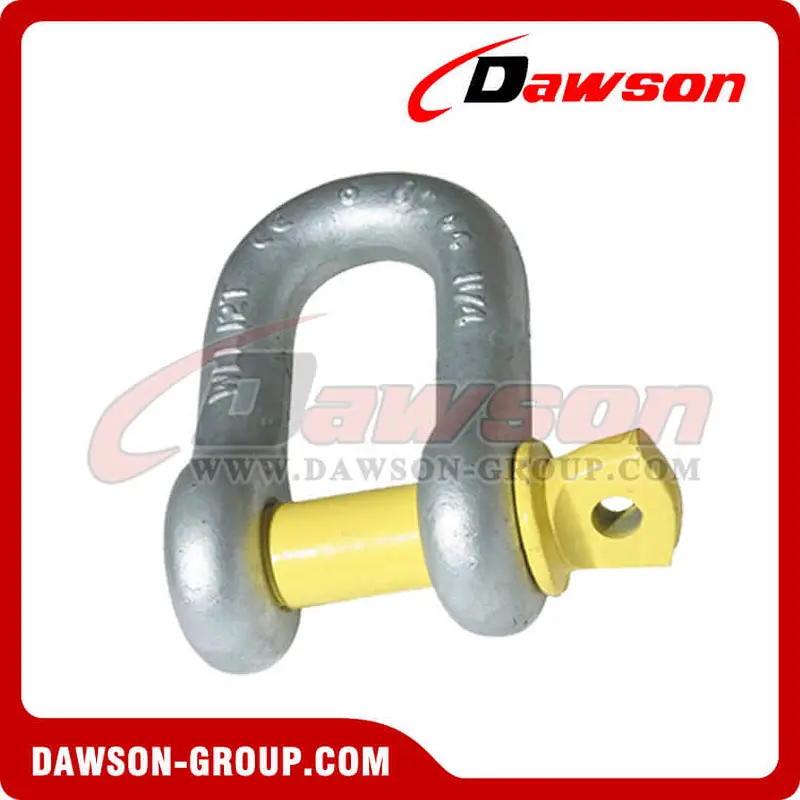

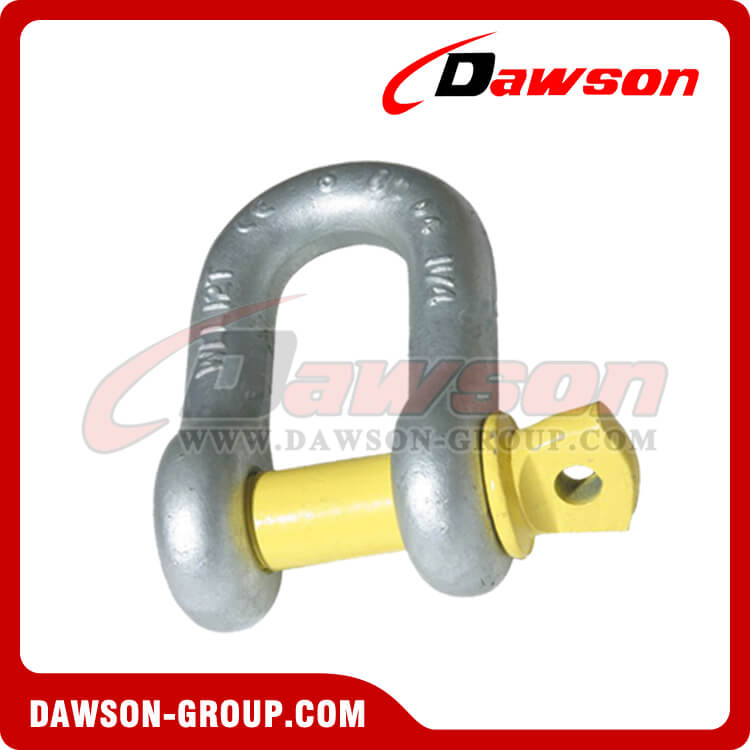

US Type Forged Alloy Screw Pin Chain Shackle
High Strength S6 Dee Shackle for Lifting, EN 13889:2003+A1:2008 D Shackle, Marine Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Chain Shackles Screw Pin Forged Alloy High Tensile Strength to US Federal Specification, EN 13889:2003+A1:2008
Shackles are supplied in hot dip galvanized finish or self colored.
Working Load Limit permanently shown on every shackle.

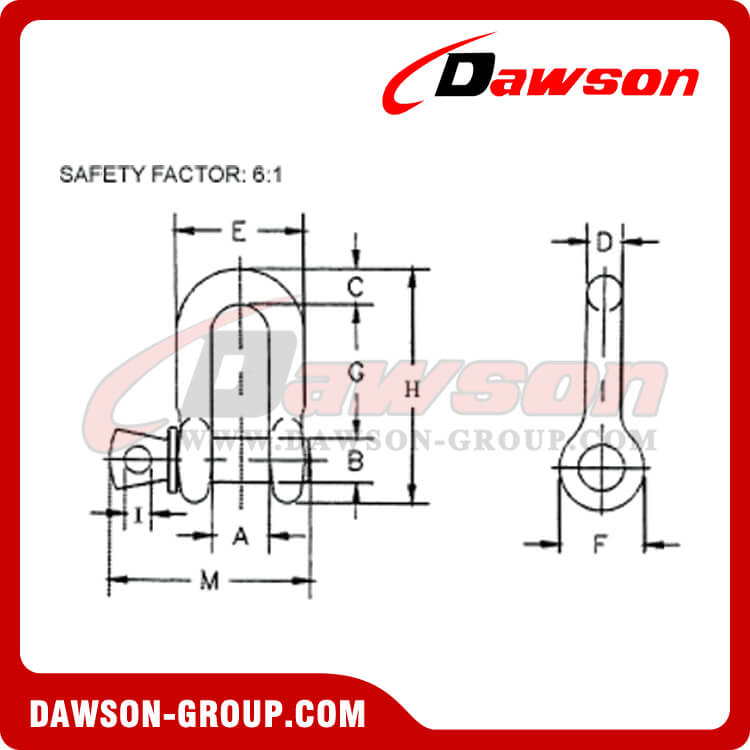

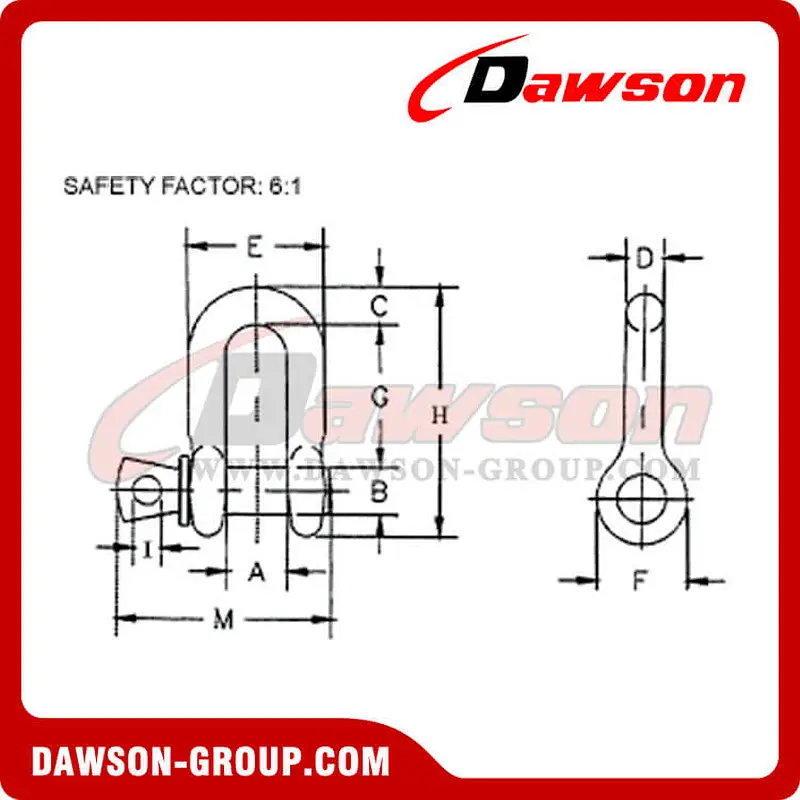

| ITEM NO | Nominal Size | Working Load Limit | Dimensions (mm) | Weight each | |||||||||
| (in.) | (tons) | A | B | C | D | E | F | G | H | I | M | (kg) | |
| DS-CS0832 | 1/4 | 1/2 | 11.9 | 7.85 | 6.35 | 6.35 | 24.6 | 15.5 | 22.4 | 40.4 | 4.85 | 35.1 | 0.05 |
| DS-CS1032 | 5/16 | 3/4 | 13.5 | 9.65 | 7.85 | 7.85 | 29.5 | 19.1 | 26.2 | 48.5 | 5.60 | 42.2 | 0.08 |
| DS-CS1232 | 3/8 | 1 | 16.8 | 11.2 | 9.65 | 9.65 | 35.8 | 23.1 | 31.8 | 58.5 | 6.35 | 51.5 | 0.13 |
| DS-CS1432 | 7/16 | 1-1/2 | 19.1 | 12.7 | 11.2 | 11.2 | 41.4 | 26.9 | 36.6 | 67.5 | 7.85 | 60.5 | 0.20 |
| DS-CS1632 | 1/2 | 2 | 20.6 | 16.0 | 12.7 | 12.7 | 46.0 | 30.2 | 41.4 | 77.0 | 9.65 | 68.5 | 0.27 |
| DS-CS2032 | 5/8 | 3-1/4 | 26.9 | 19.1 | 15.7 | 16.0 | 58.5 | 38.1 | 51.0 | 95.5 | 11.2 | 85.0 | 0.57 |
| DS-CS2432 | 3/4 | 4-3/4 | 31.8 | 22.4 | 20.6 | 19.1 | 70.0 | 46.0 | 60.5 | 115 | 12.7 | 101 | 1.20 |
| DS-CS2832 | 7/8 | 6-1/2 | 36.6 | 25.4 | 24.6 | 22.4 | 81.0 | 53.0 | 71.5 | 135 | 12.7 | 114 | 1.43 |
| DS-CS3232 | 1 | 8-1/2 | 42.9 | 28.7 | 25.4 | 25.4 | 93.5 | 60.5 | 81.0 | 151 | 14.2 | 129 | 2.15 |
| DS-CS3632 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 31.8 | 28.7 | 103 | 68.5 | 91.0 | 172 | 16.0 | 142 | 3.06 |
| DS-CS4032 | 1-1/4 | 12 | 51.5 | 35.1 | 35.1 | 31.8 | 115 | 76.0 | 100 | 191 | 17.5 | 156 | 4.11 |
| DS-CS4432 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 38.1 | 35.1 | 127 | 84.0 | 111 | 210 | 19.1 | 174 | 5.28 |
| DS-CS4832 | 1-1/2 | 17 | 60.5 | 41.4 | 41.1 | 38.1 | 137 | 92.0 | 122 | 230 | 20.6 | 187 | 7.23 |
| DS-CS5632 | 1-3/4 | 25 | 73.0 | 51.0 | 54.0 | 44.5 | 162 | 106 | 146 | 279 | 25.4 | 231 | 12.1 |
| DS-CS6432 | 2 | 35 | 82.5 | 57.0 | 51.0 | 51.0 | 184 | 122 | 172 | 312 | 31.0 | 263 | 19.2 |
| DS-CS8032 | 2-1/2 | 55 | 105 | 70.0 | 66.5 | 66.5 | 238 | 145 | 203 | 377 | 35.1 | 330 | 32.5 |
Welcome to buy the newest and competitive price DAWSON US Type Forged Alloy Screw Pin Chain Shackle from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Screw Pin Chain Shackles meet the performance requirements of Federal Specification RR-C-271D Type IVA, EN 13889:2003+A1:2008, Grade A, Class 2, except for those provisions required of the contractor.
* Maximum Proof Load is 2.0 times the Working Load Limit.
* Minimum Ultimate Strength is 6 times the Working Load Limit.
Chain Shackles Screw Pin Forged Alloy High Tensile Strength to US Federal Specification
Forged - Quenched and Tempered.
Capacities 1/3 thru 55 metric tons.
Forged high tensile mainly using for lifting point connecting or fishing connecting or lashing points as the shackle with hot dipped galv. others application is ok when commercial shackle using for light industry.

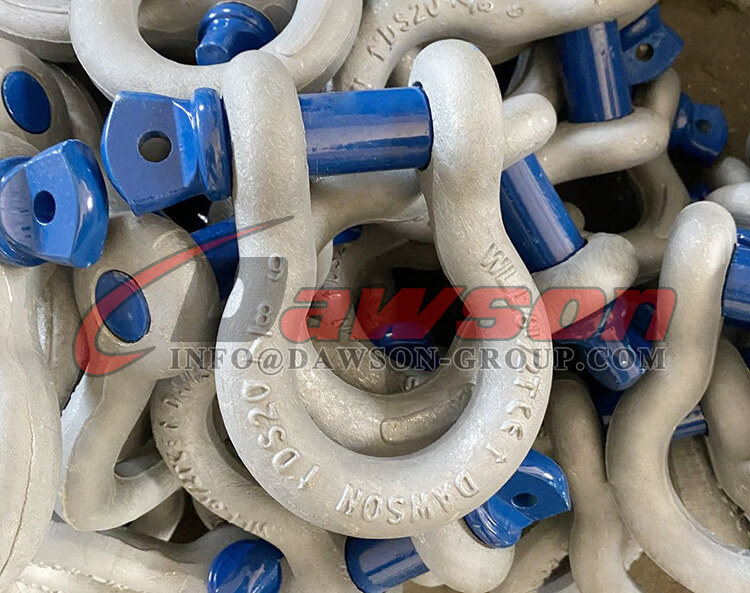

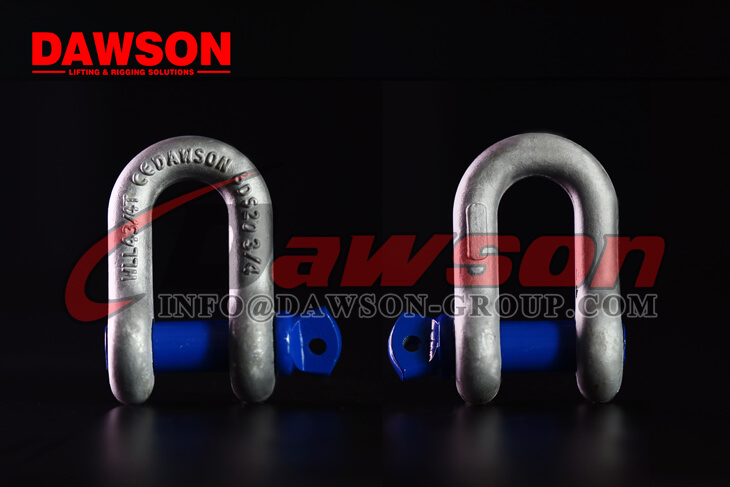

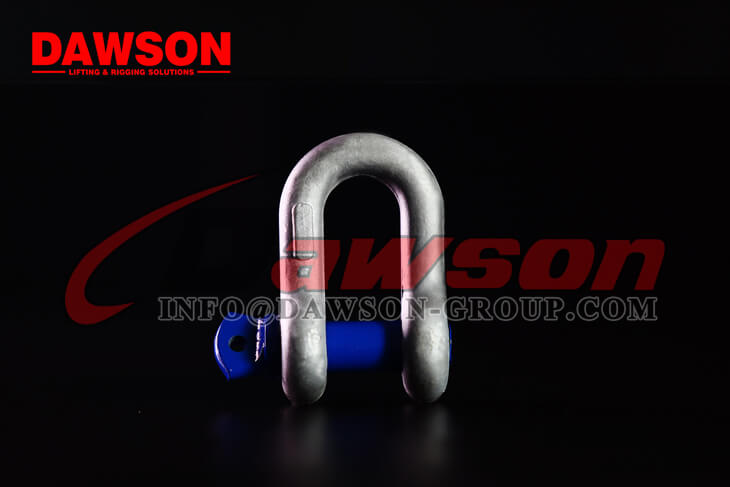

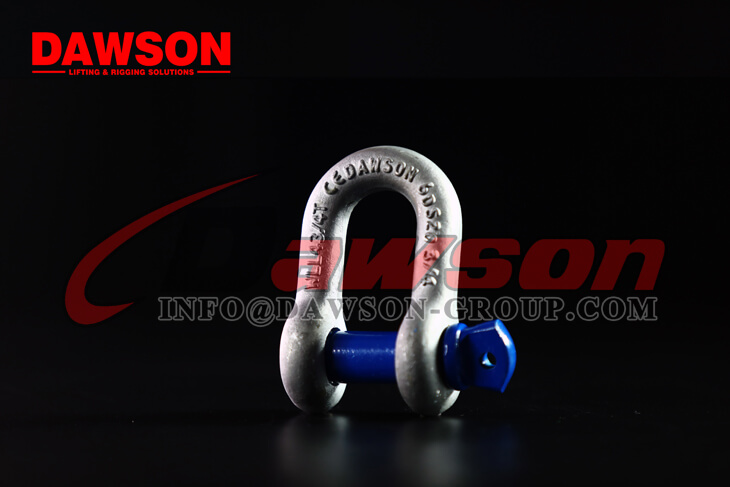

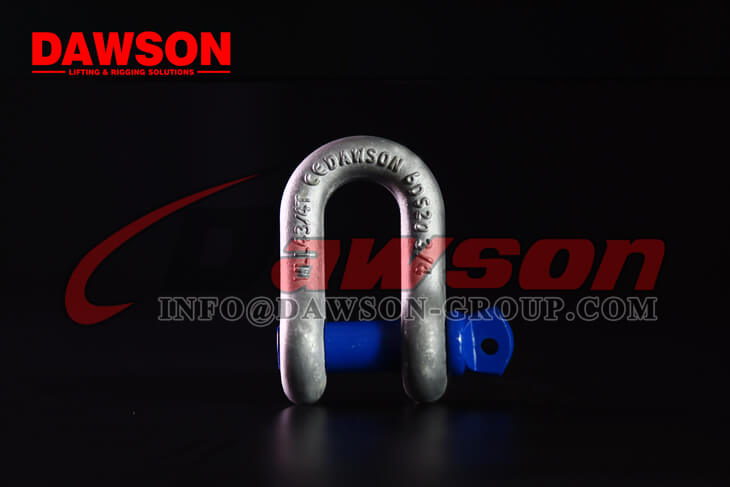

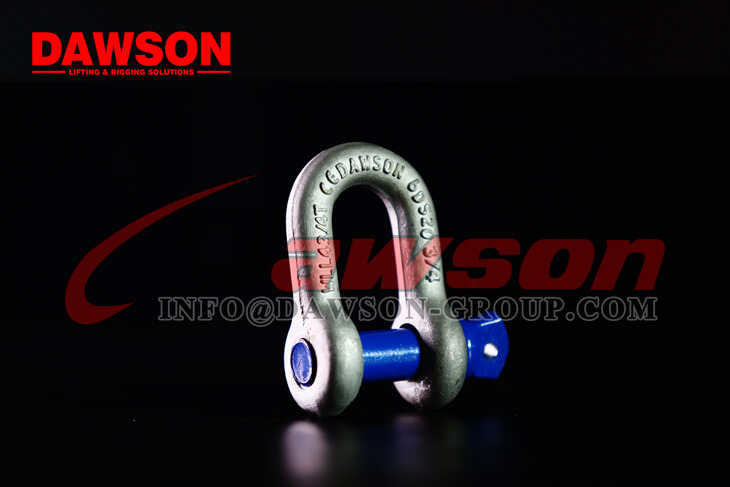

Products Show:
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk chain shackle,low price screw pin chain shackle,high quality chain shackle with screw pin,wholesale forged alloy chain shackle,buy discount alloy steel chain shackle,hot sale chain shackle with screw,customized high tensile chain shackle,cheap price dee chain shackle,alloy steel shackle China supplier,drop forged dee shackle China manufacturer,chain shackle in stock,screw pin chain shackle China factory,forged alloy chain shackle China exporter,screw pin chain shackle free sample,forged alloy chain shackle dawson brands,screw pin chain shackle OEM
Other Related Products:

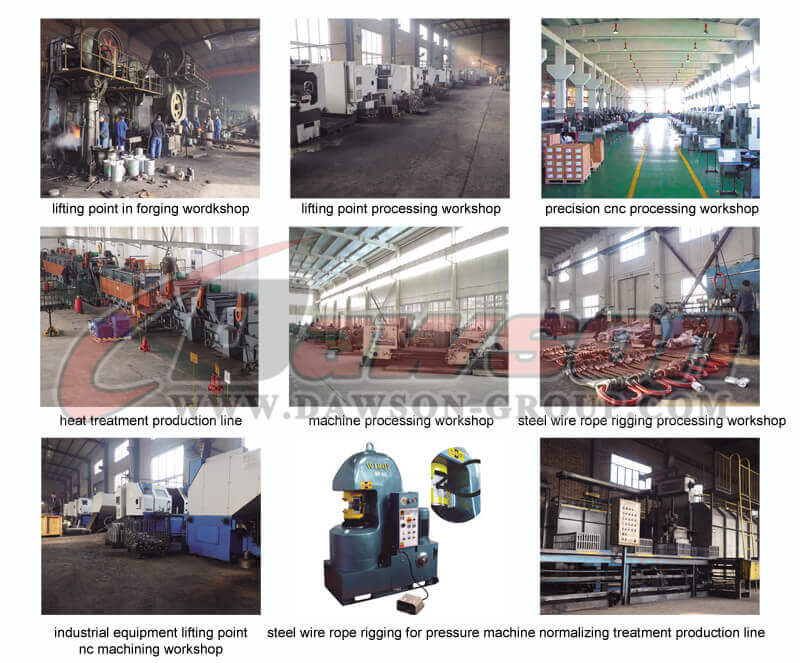

Production Equipment：

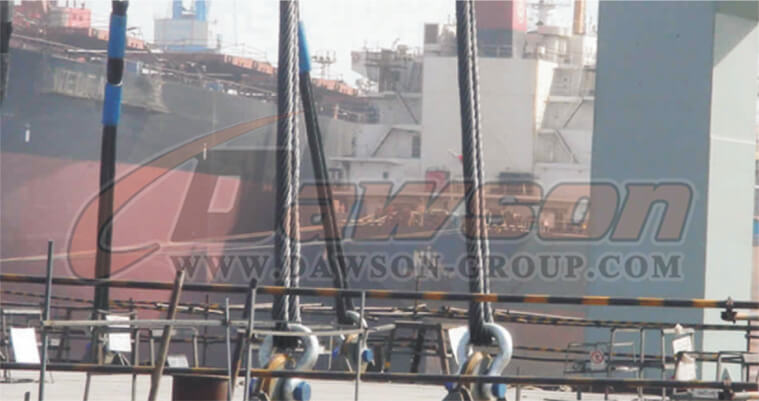

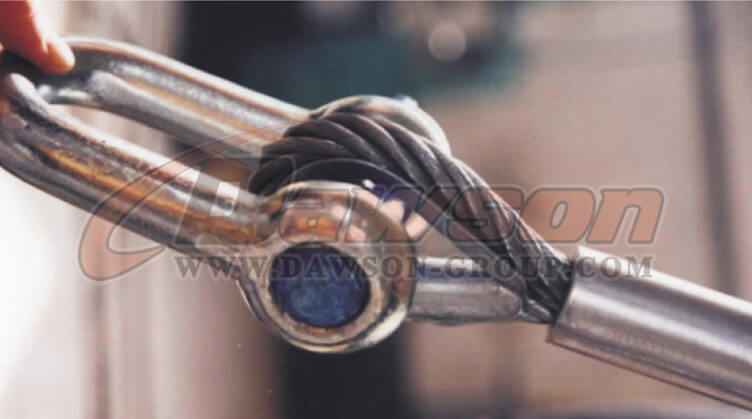

Application of Shackles:

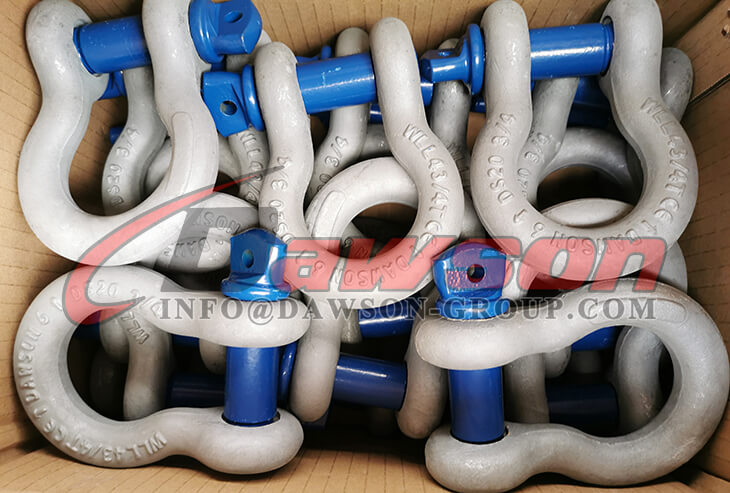

Factory and packing Show:
