US Type Forged Trawling Bow Shackle with Sunken Pin, S6 Anchor Shackle Square Sunken Hole Pin, High Tensile Trawling Shackle with Sunken Head Pin
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
The shackle Made by Forged Steel,

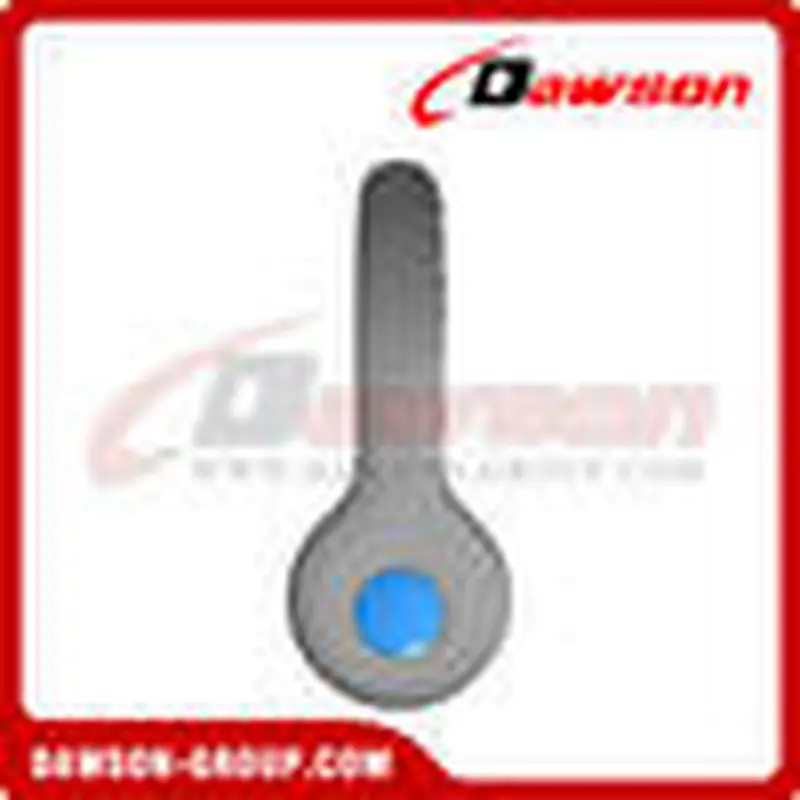

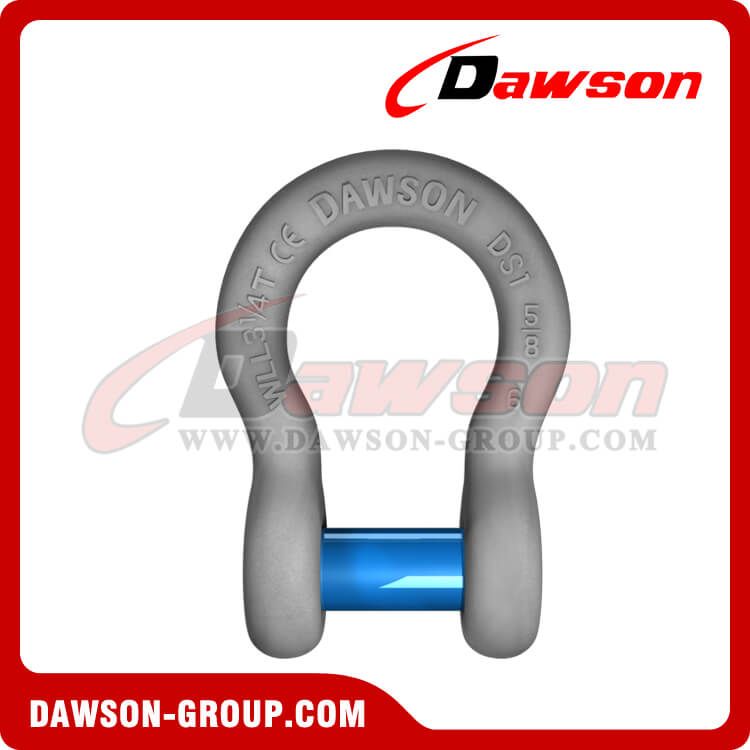

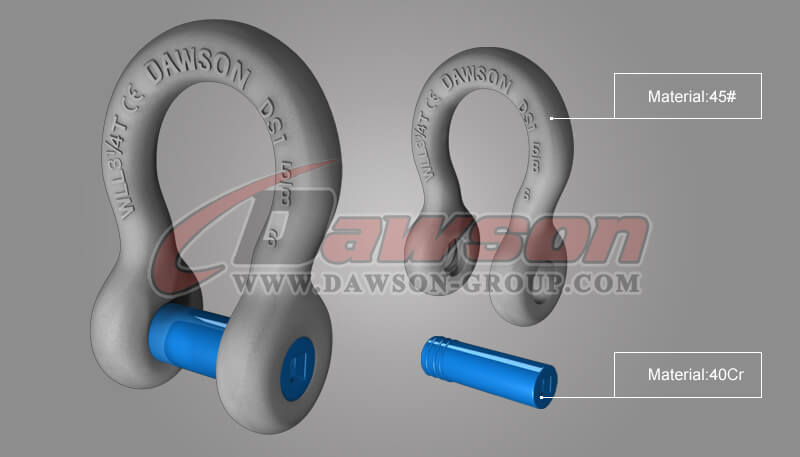

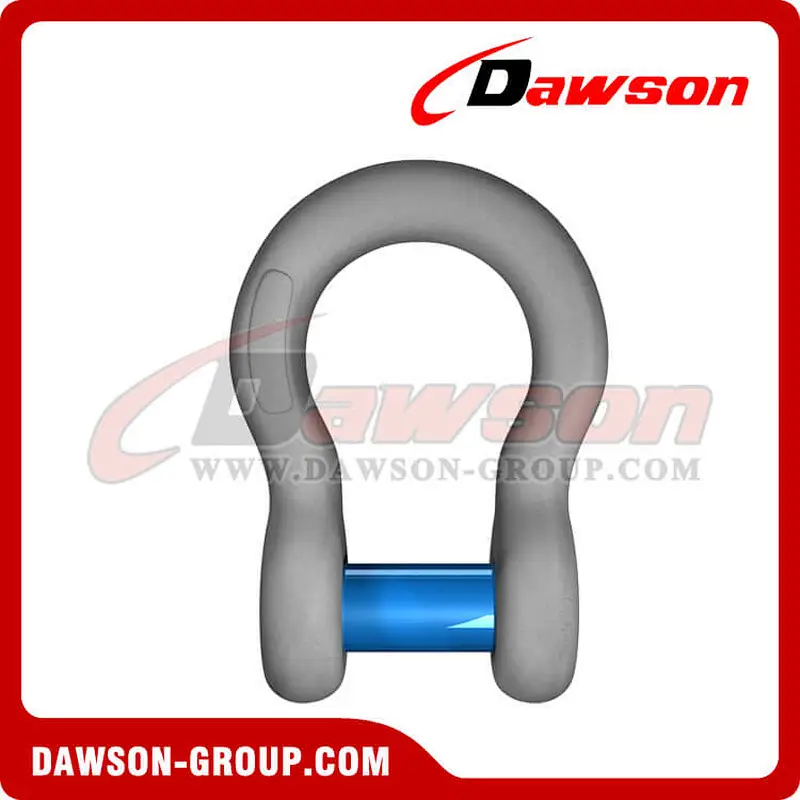

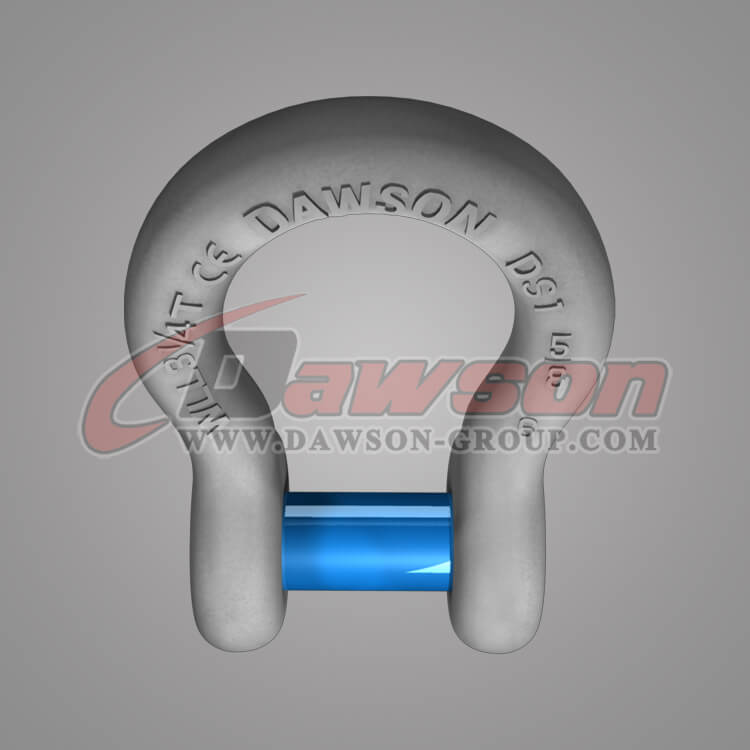

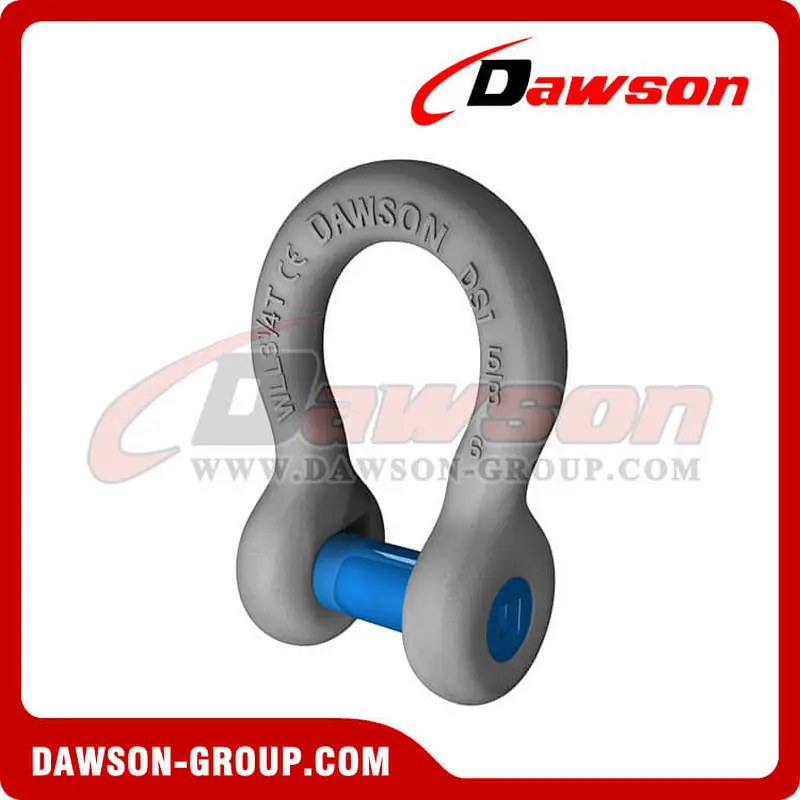

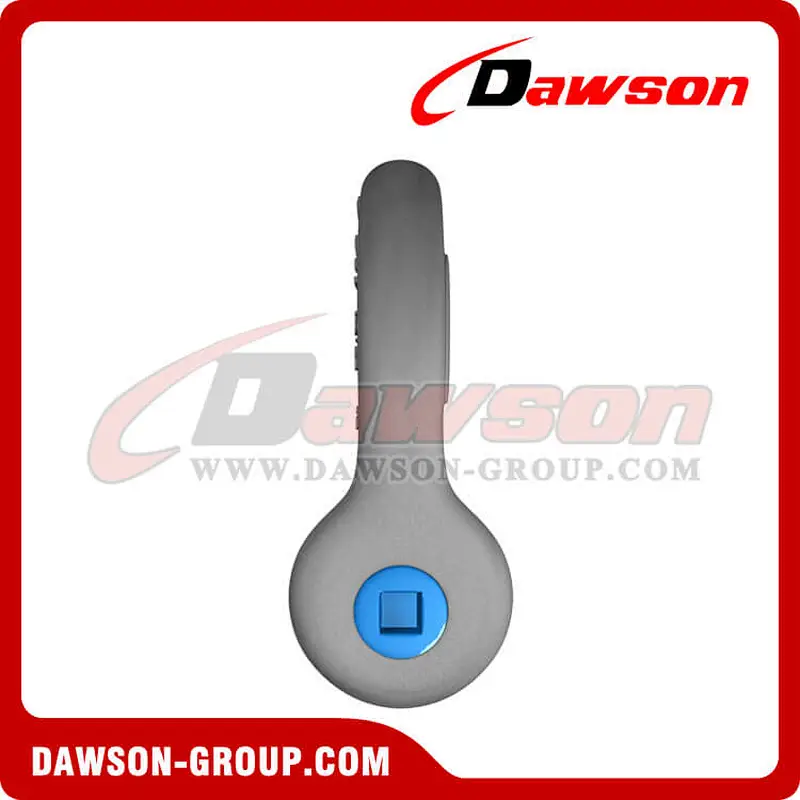

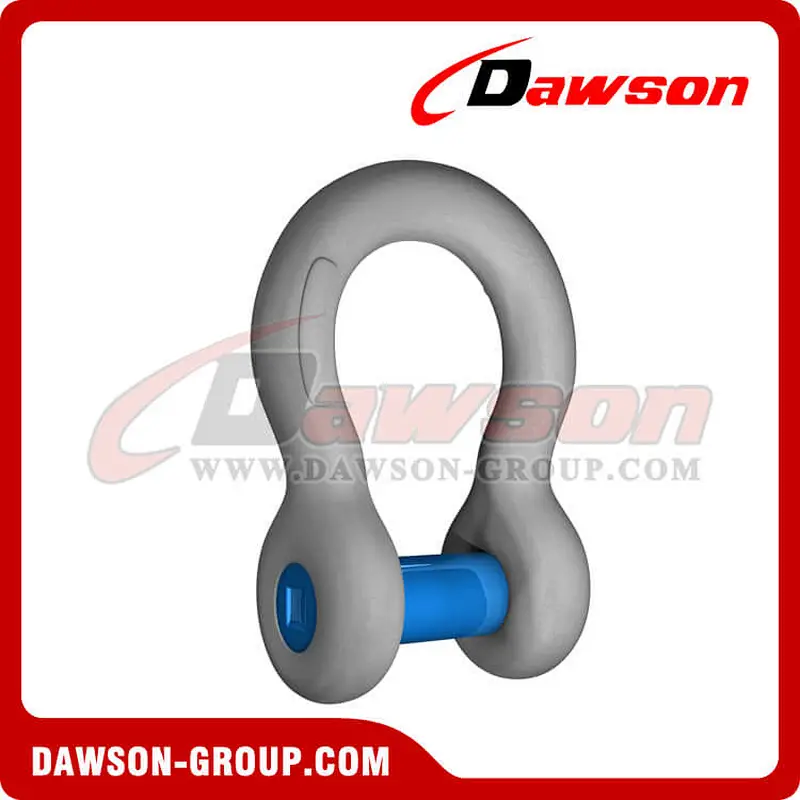

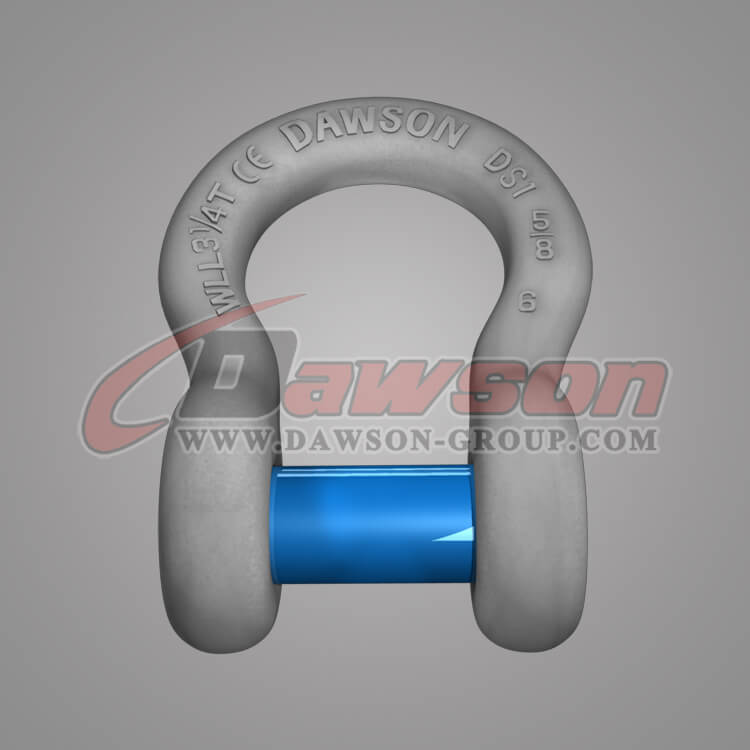

Body is : Bow Type, Pin is: Sunken pin shackle, Also we Call As Trawling shackle.
| ITEM NO | Nominal Size | Working Load Limit | Dimensions (mm) | Weight each | ||||||||||
| (in.) | (tons) | A | B | C | D | E | F | G | H | I | M | N | (kg) | |
| DS-AS0632 | 3/16 | 1/3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 24.9 | 37.3 | 4.06 | 28.4 | 4.85 | 0.03 |
| DS-AS0832 | 1/4 | 1/2 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 | 0.05 |
| DS-AS1032 | 5/16 | 3/4 | 13.5 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 37.3 | 53.0 | 5.60 | 42.2 | 7.85 | 0.09 |
| DS-AS1232 | 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63.0 | 6.35 | 51.5 | 9.65 | 0.14 |
| DS-AS1432 | 7/16 | 1-1/2 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.5 | 74.0 | 7.85 | 60.5 | 11.2 | 0.17 |
| DS-AS1632 | 1/2 | 2 | 20.6 | 16.0 | 47.8 | 12.7 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.7 | 0.33 |
| DS-AS2032 | 5/8 | 3-1/4 | 26.9 | 19.1 | 60.5 | 16.0 | 42.9 | 38.1 | 74.5 | 106 | 11.2 | 85.0 | 17.5 | 0.62 |
| DS-AS2432 | 3/4 | 4-3/4 | 31.8 | 22.4 | 71.5 | 19.1 | 51.0 | 46.0 | 89.0 | 126 | 12.7 | 101 | 20.6 | 1.07 |
| DS-AS2832 | 7/8 | 6-1/2 | 36.6 | 25.4 | 84.0 | 22.4 | 58.0 | 53.0 | 102 | 148 | 12.7 | 114 | 24.6 | 1.64 |
| DS-AS3232 | 1 | 8-1/2 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 119 | 167 | 14.2 | 129 | 26.9 | 2.28 |
| DS-AS3632 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 108 | 29.5 | 74.0 | 68.5 | 131 | 190 | 16.0 | 142 | 31.8 | 3.36 |
| DS-AS4032 | 1-1/4 | 12 | 51.5 | 35.1 | 119 | 32.8 | 92.5 | 76.0 | 146 | 210 | 17.5 | 156 | 35.1 | 4.31 |
| DS-AS4432 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 133 | 36.1 | 92.0 | 84.0 | 162 | 233 | 19.1 | 174 | 38.1 | 6.14 |
| DS-AS4832 | 1-1/2 | 17 | 60.5 | 41.4 | 146 | 39.1 | 98.5 | 92.0 | 175 | 254 | 20.6 | 187 | 41.1 | 7.80 |
| DS-AS5632 | 1-3/4 | 25 | 73.0 | 51.0 | 178 | 46.7 | 127 | 106 | 225 | 313 | 25.4 | 231 | 57.0 | 12.6 |
| DS-AS6432 | 2 | 35 | 82.5 | 57.0 | 197 | 53.0 | 146 | 122 | 253 | 348 | 31.0 | 263 | 61.0 | 20.4 |
| DS-AS8032 | 2-1/2 | 55 | 105 | 70.0 | 267 | 69.0 | 184 | 145 | 327 | 453 | 35.1 | 330 | 79.5 | 38.9 |
Welcome to buy the newest and competitive price DAWSON US Type Forged Trawling Bow Shackle with Sunken Pin from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Shackle With Special Bolt and Nut and Washer
Hot Dipped Galv. Shackle, Bow Type with Safety Pin and Nut,
Casher and Cotter Pin Together.
size 3/4"working load limited with 4.75ton, breaking load: 28.5ton, But our Tested Breaking load is 32ton.
Application: For water connecting and fixed with others fittings
Products Show:
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk forged trawling bow shackle,low price drop forged s6 bow shackle,high quality trawling bow shackle with sunken pin,wholesale forged steel s6 trawling shackle,buy discount bow shackle,hot sale forged steel anchor shackle,customized anchor shackle,cheap price forged bow shackle,bow shackle with sunken pin China supplier,trawling bow shackle sunken head pin China manufacturer,US type bow shackle square sunken hole pin China factory,s6 anchor shackle China exporter,alloy steel shackle in stock,drop forged bow shackle sunken pin free sample,forged trawling bow shackle dawson brands,forged trawling bow shackle OEM

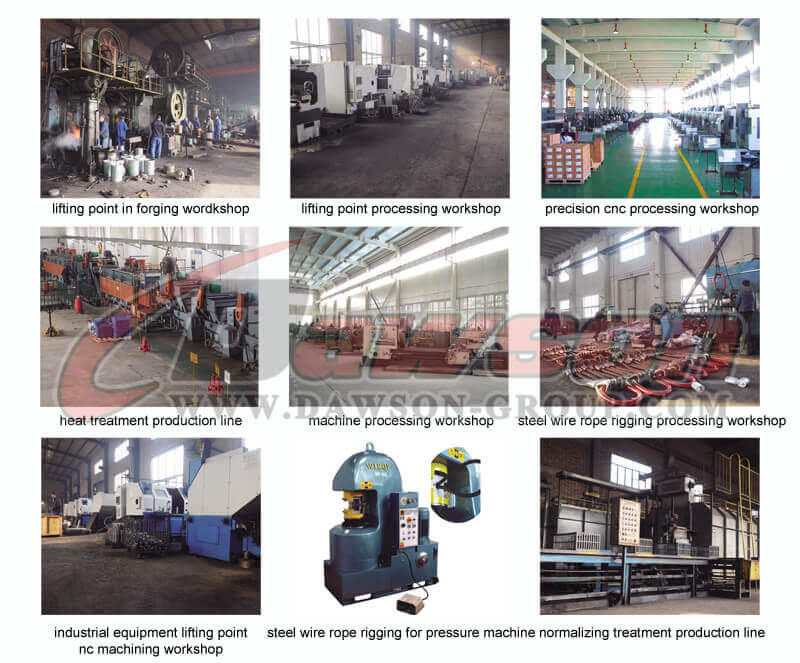

Production Equipment:

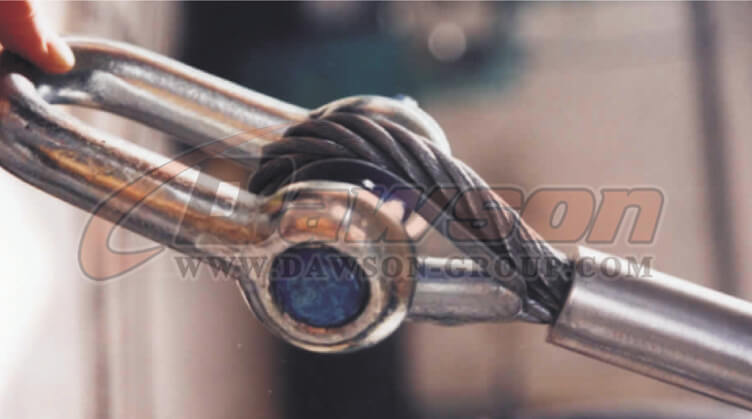

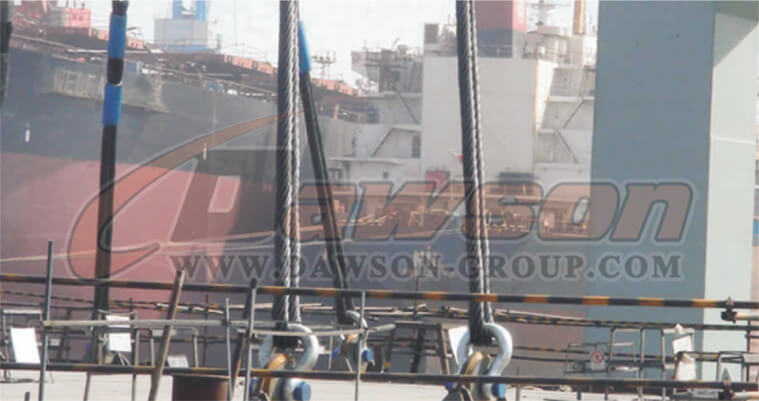

Application of Shackles:
