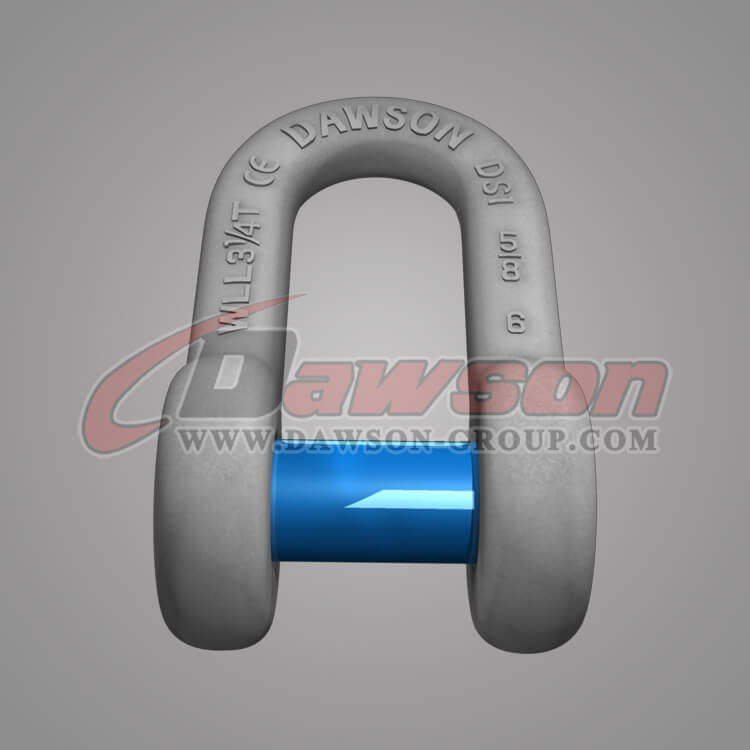

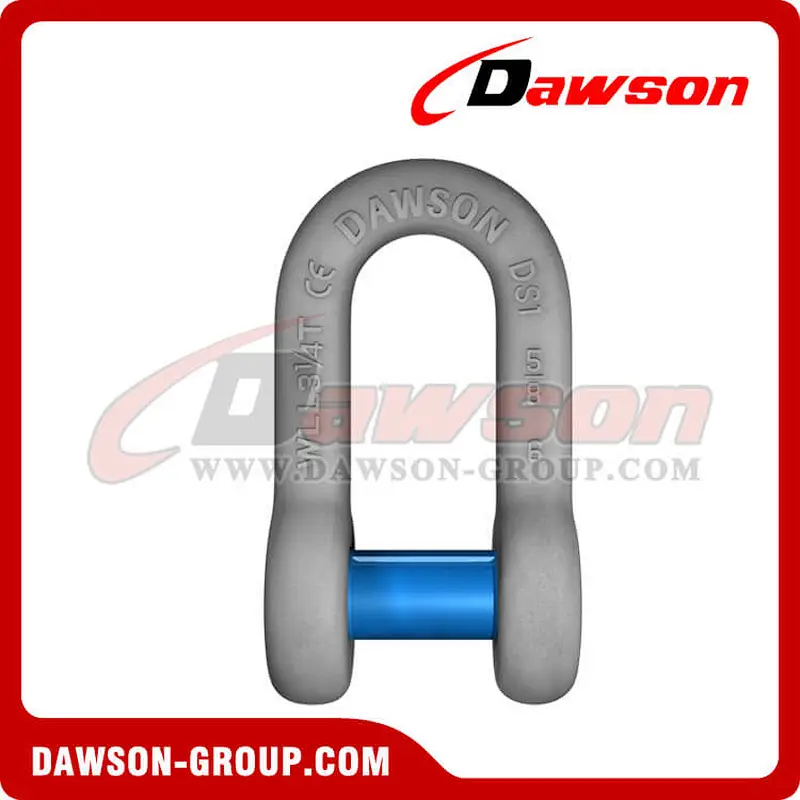

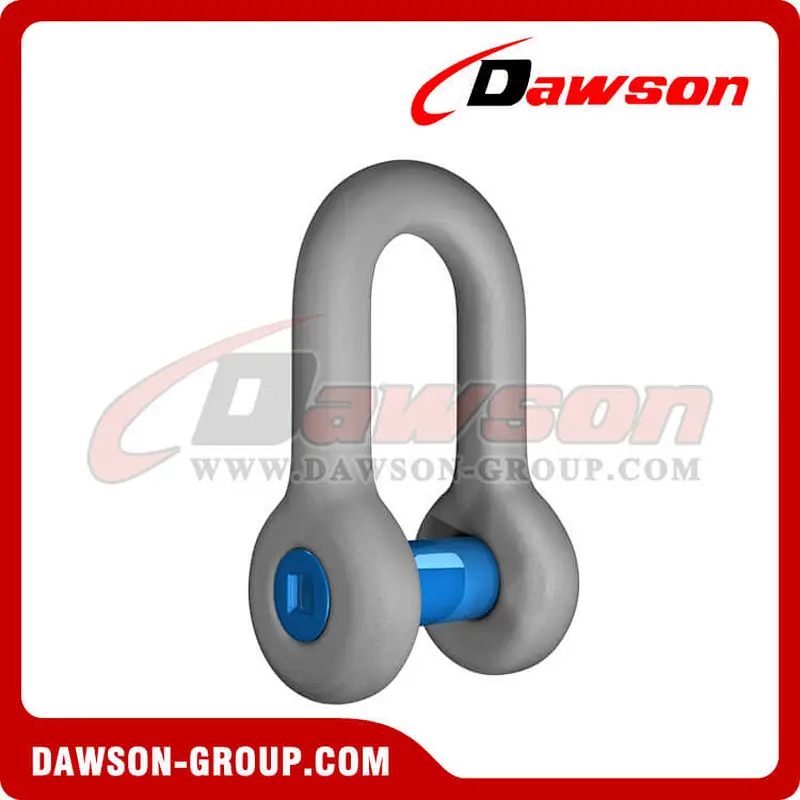

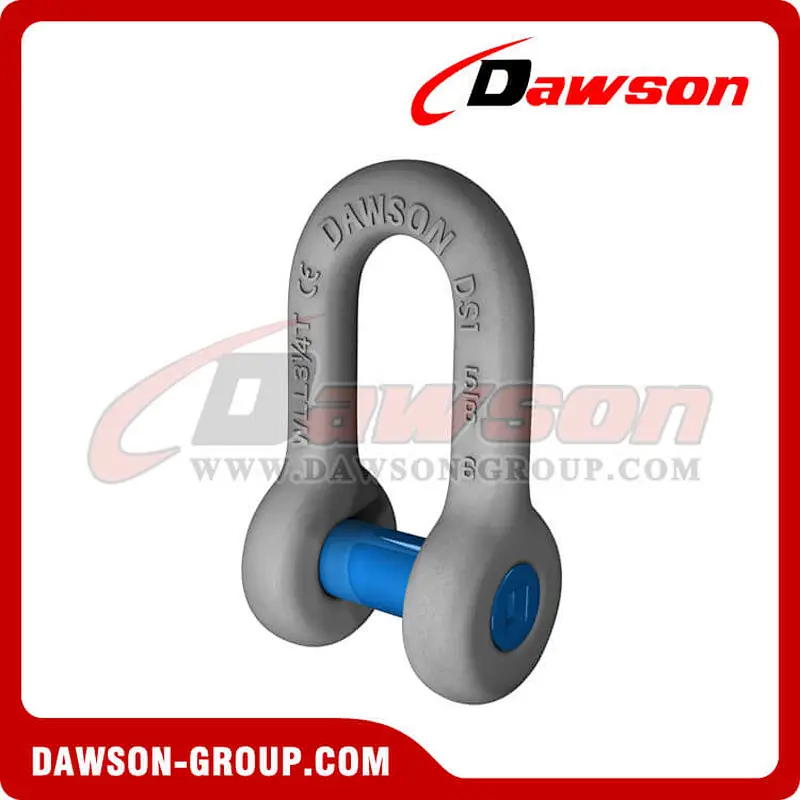

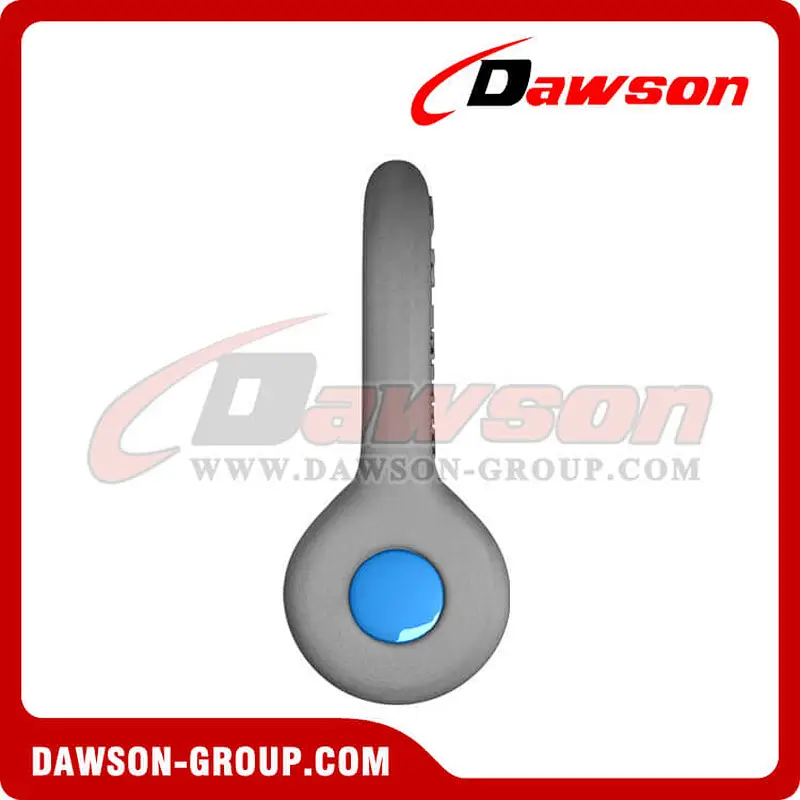

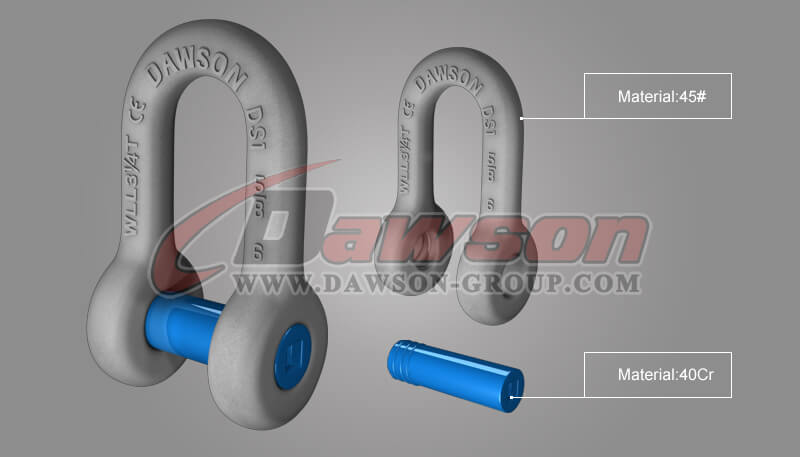

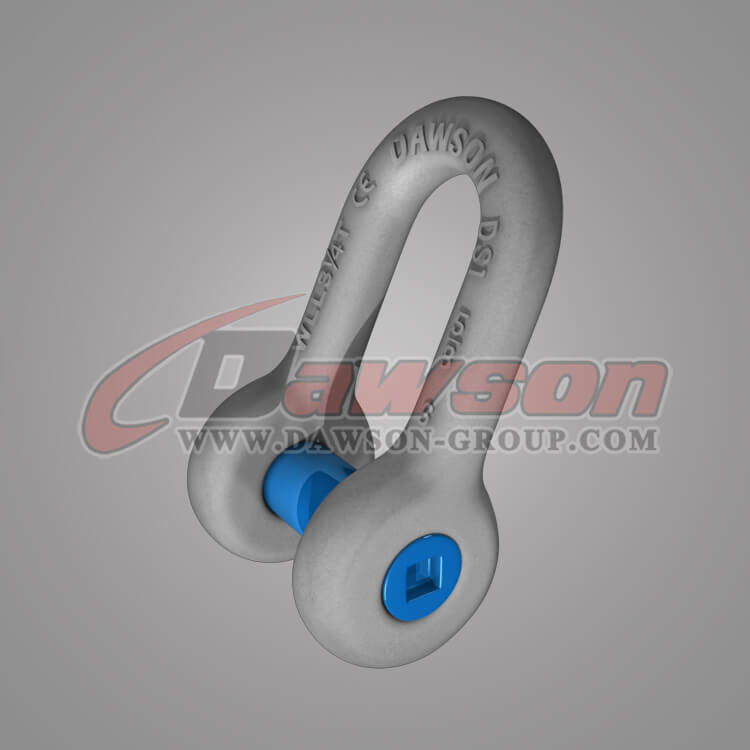

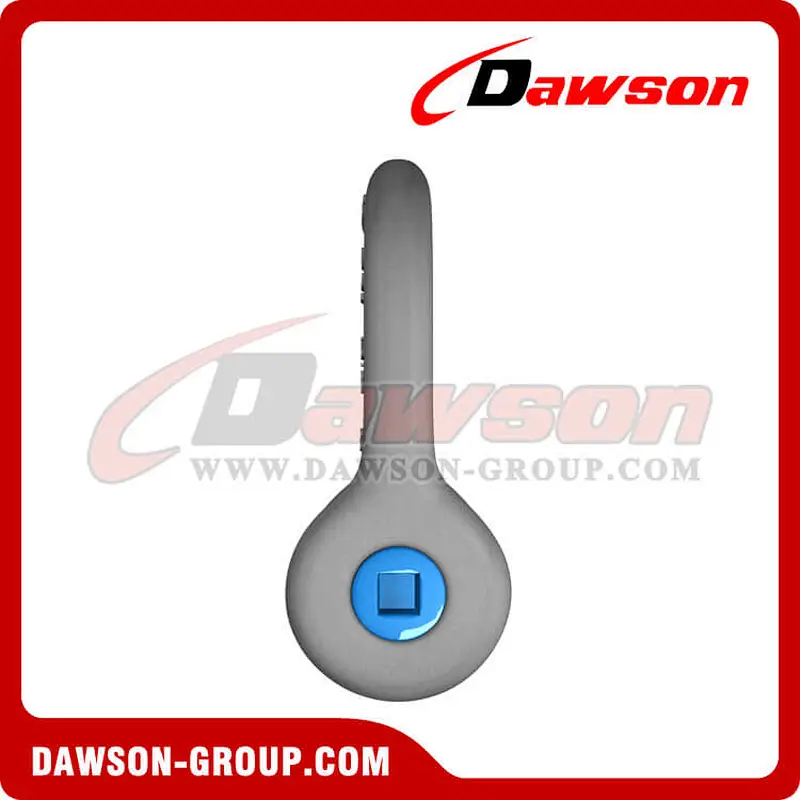

US Type Forged Trawling Dee Shackle with Sunken Pin, S6 Dee Shackle Sunken Head Pin, Dee Shackle Square Sunken Hole Pin
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Chain Shackles Screw Pin Forged Alloy High Tensile Strength to US Federal Specification G210
Shackles are supplied in hot dip galvanized finish or self colored.
Working Load Limit permanently shown on every shackle.
| ITEM NO | Nominal Size | Working Load Limit | Dimensions (mm) | Weight each | |||||||||
| (in.) | (tons) | A | B | C | D | E | F | G | H | I | M | (kg) | |
| DS-CS0832 | 1/4 | 1/2 | 11.9 | 7.85 | 6.35 | 6.35 | 24.6 | 15.5 | 22.4 | 40.4 | 4.85 | 35.1 | 0.05 |
| DS-CS1032 | 5/16 | 3/4 | 13.5 | 9.65 | 7.85 | 7.85 | 29.5 | 19.1 | 26.2 | 48.5 | 5.60 | 42.2 | 0.08 |
| DS-CS1232 | 3/8 | 1 | 16.8 | 11.2 | 9.65 | 9.65 | 35.8 | 23.1 | 31.8 | 58.5 | 6.35 | 51.5 | 0.13 |
| DS-CS1432 | 7/16 | 1-1/2 | 19.1 | 12.7 | 11.2 | 11.2 | 41.4 | 26.9 | 36.6 | 67.5 | 7.85 | 60.5 | 0.20 |
| DS-CS1632 | 1/2 | 2 | 20.6 | 16.0 | 12.7 | 12.7 | 46.0 | 30.2 | 41.4 | 77.0 | 9.65 | 68.5 | 0.27 |
| DS-CS2032 | 5/8 | 3-1/4 | 26.9 | 19.1 | 15.7 | 16.0 | 58.5 | 38.1 | 51.0 | 95.5 | 11.2 | 85.0 | 0.57 |
| DS-CS2432 | 3/4 | 4-3/4 | 31.8 | 22.4 | 20.6 | 19.1 | 70.0 | 46.0 | 60.5 | 115 | 12.7 | 101 | 1.20 |
| DS-CS2832 | 7/8 | 6-1/2 | 36.6 | 25.4 | 24.6 | 22.4 | 81.0 | 53.0 | 71.5 | 135 | 12.7 | 114 | 1.43 |
| DS-CS3232 | 1 | 8-1/2 | 42.9 | 28.7 | 25.4 | 25.4 | 93.5 | 60.5 | 81.0 | 151 | 14.2 | 129 | 2.15 |
| DS-CS3632 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 31.8 | 28.7 | 103 | 68.5 | 91.0 | 172 | 16.0 | 142 | 3.06 |
| DS-CS4032 | 1-1/4 | 12 | 51.5 | 35.1 | 35.1 | 31.8 | 115 | 76.0 | 100 | 191 | 17.5 | 156 | 4.11 |
| DS-CS4432 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 38.1 | 35.1 | 127 | 84.0 | 111 | 210 | 19.1 | 174 | 5.28 |
| DS-CS4832 | 1-1/2 | 17 | 60.5 | 41.4 | 41.1 | 38.1 | 137 | 92.0 | 122 | 230 | 20.6 | 187 | 7.23 |
| DS-CS5632 | 1-3/4 | 25 | 73.0 | 51.0 | 54.0 | 44.5 | 162 | 106 | 146 | 279 | 25.4 | 231 | 12.1 |
| DS-CS6432 | 2 | 35 | 82.5 | 57.0 | 51.0 | 51.0 | 184 | 122 | 172 | 312 | 31.0 | 263 | 19.2 |
| DS-CS8032 | 2-1/2 | 55 | 105 | 70.0 | 66.5 | 66.5 | 238 | 145 | 203 | 377 | 35.1 | 330 | 32.5 |
Welcome to buy the newest and competitive price DAWSON US Type Forged Trawling Dee Shackle with Sunken Pin from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Screw Pin Chain Shackles meet the performance requirements of Federal Specification RR-C-271D Type IVA, Grade A, Class 2, except for those provisions required of the contractor.
* Maximum Proof Load is 2.0 times the Working Load Limit.
* Minimum Ultimate Strength is 6 times the Working Load Limit.
Chain Shackles Screw Pin Forged Alloy High Tensile Strength to US Federal Specification
Forged - Quenched and Tempered.
Capacities 1/3 thru 55 metric tons.
Forged high tensile mainly using for lifting point connecting or fishing connecting or lashing points as the shackle with hot dipped galv. others application is ok when commercial shackle using for light industry.
Products Show:
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk S6 trawling dee shackle, low price drop forged dee shackle, high quality trawling dee shackle with sunken pin, wholesale forged steel trawling shackle, buy discount trawling dee shackle, hot sale S6 d shackle, customized forged d shackle, heavy duty d shackle China supplier, cheap price S6 chain shackle, trawling dee shackle sunken pin China manufacturer, trawling shackle squaresunken hole pin China factory, drop forged dee shackle China exporter, dee shackle in stock, dee shackle with sunken pin free sample, drop forged dee shackle dawson brands, dee shackle with sunken pin OEM

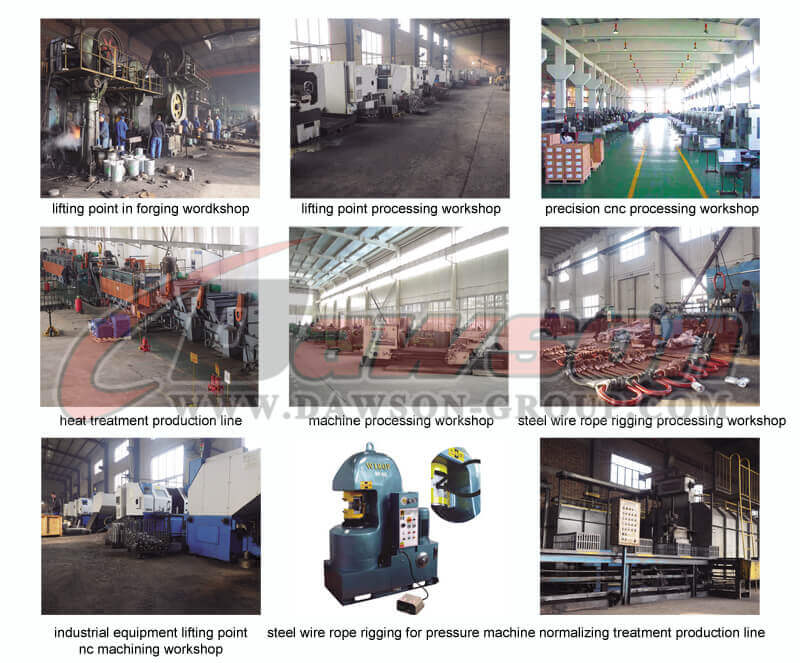

Production Equipment：

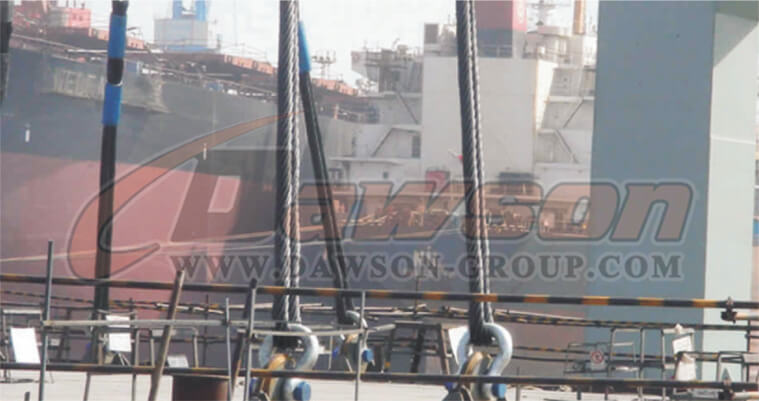

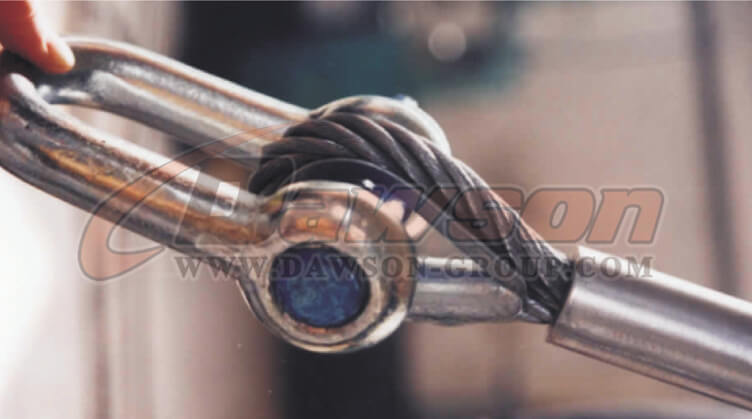

Application of Shackles:
Package & Factory Show:
